Geometry Nodesで建物にバリエーションをつける〜屋根・窓・階数を足して、同じ形ばかりの街から抜け出す〜

# -*- coding: utf-8 -*-
"""
p1002: Geometry Nodesで建物にバリエーションをつける
段階ビルド用ライブラリ（Blender 5.2 LTS で確認）

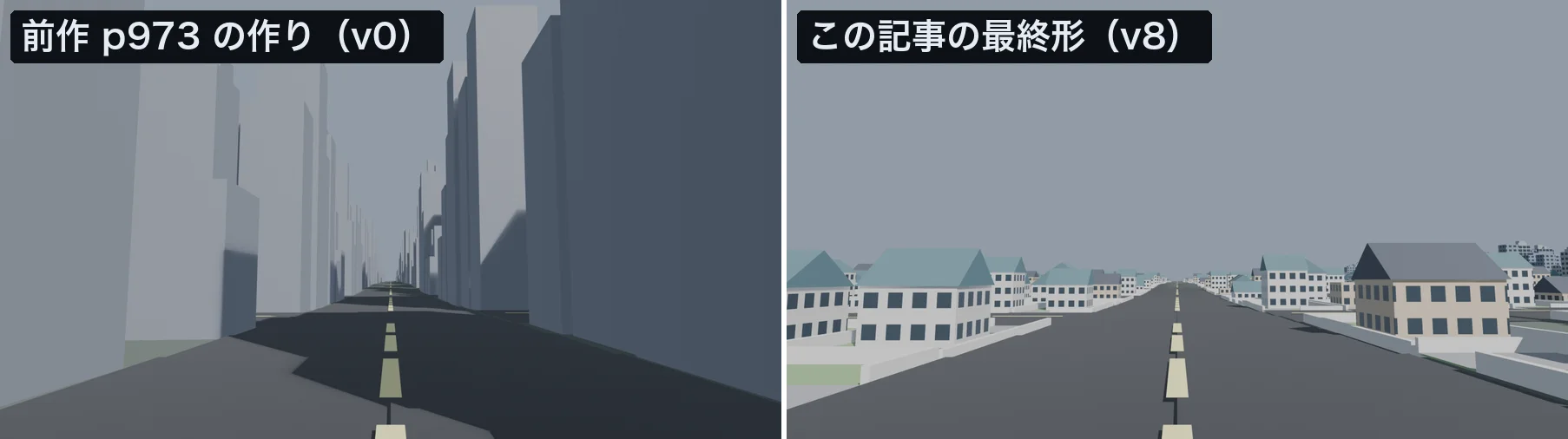

出発点は p973 の最終形（道路・起伏・建物4種・中心ほど高いゾーニング）。

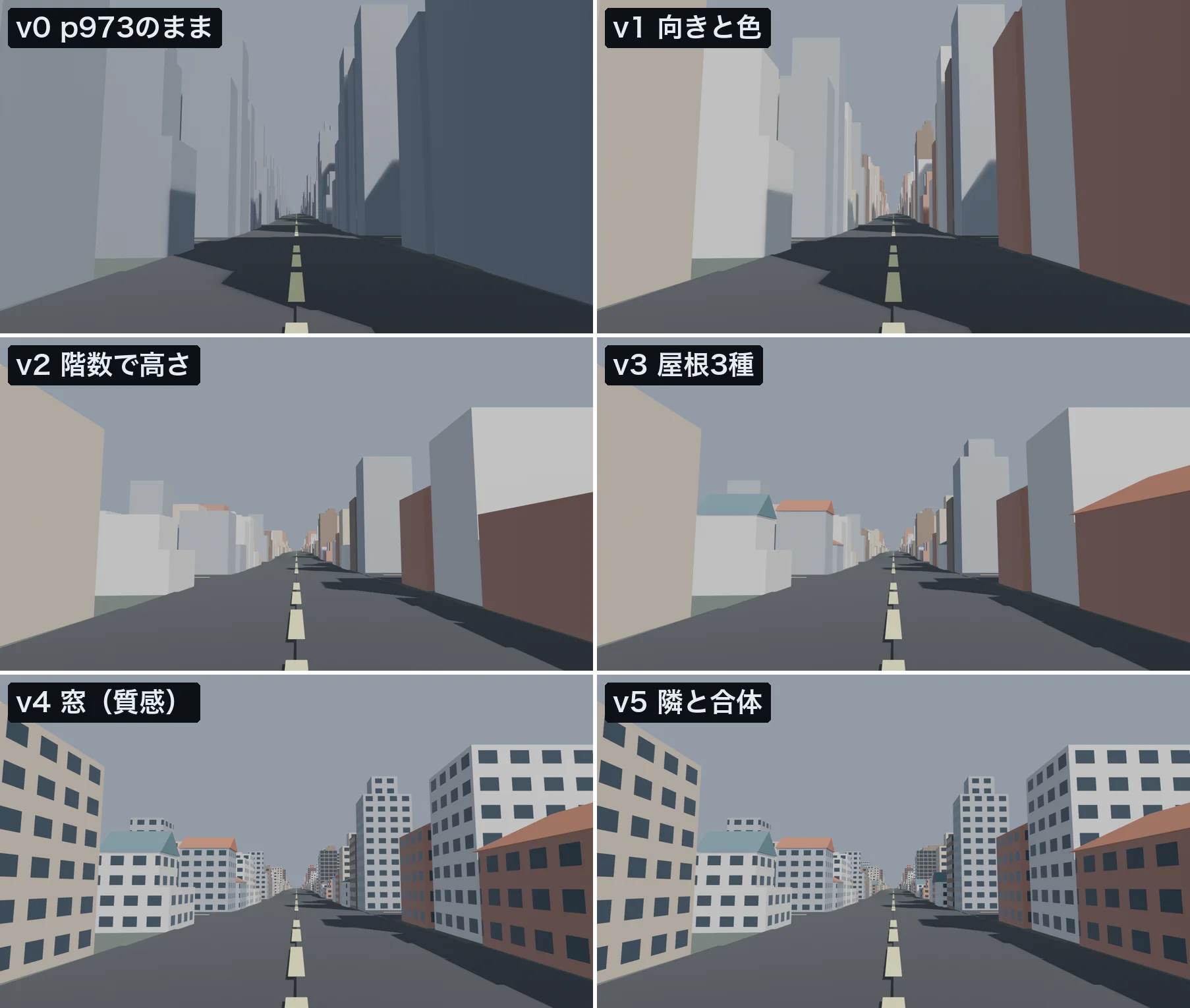

そこに次の5つを1つずつ足していく。

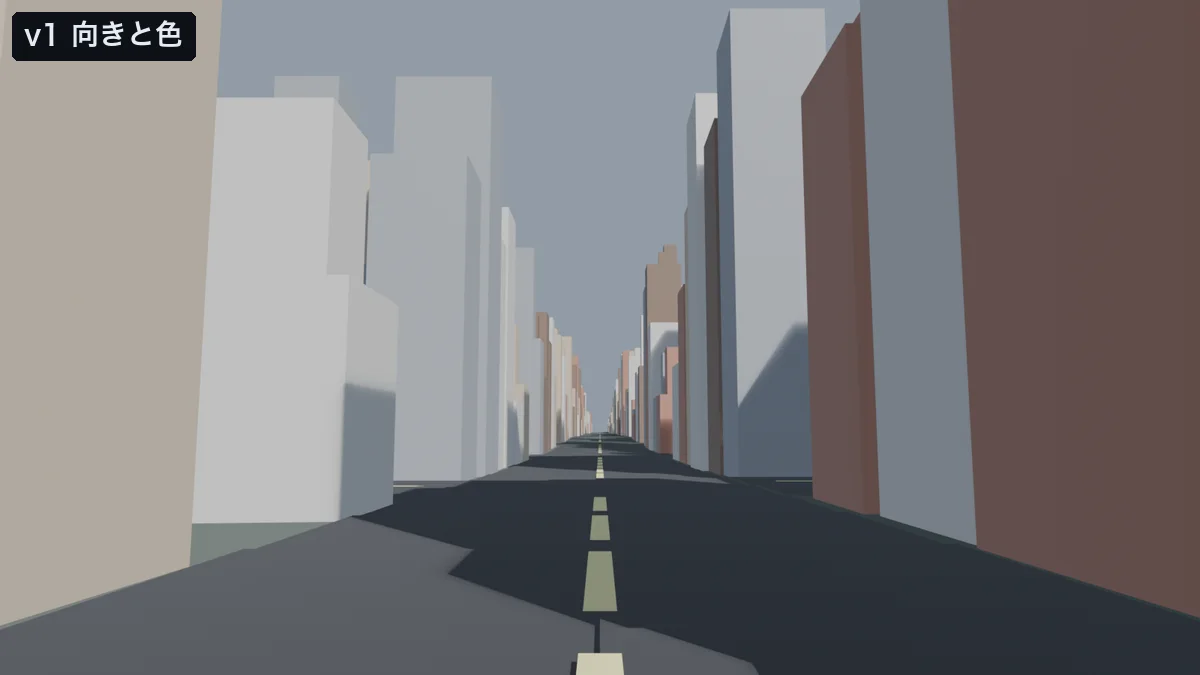

  v1 向きと色   … 建物の正面を近い道路へ向ける／外壁の色を6色から選ぶ

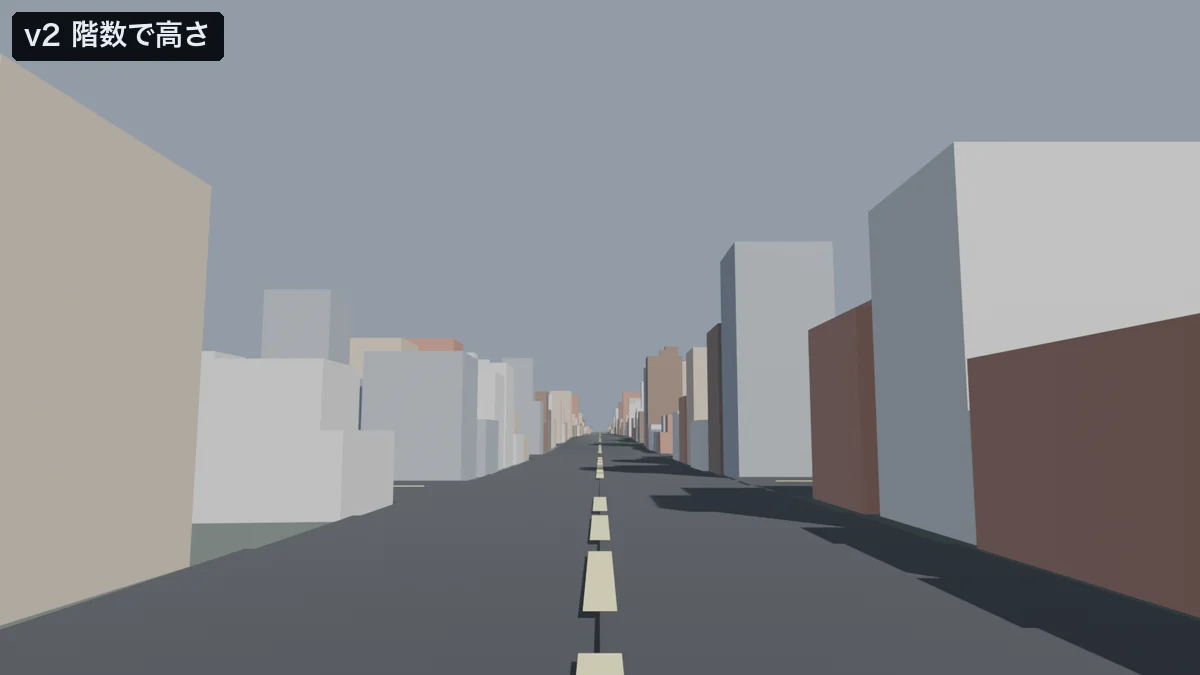

  v2 階数       … 高さを「階数 × 1階ぶん」で決め、中心ほど階数を増やす

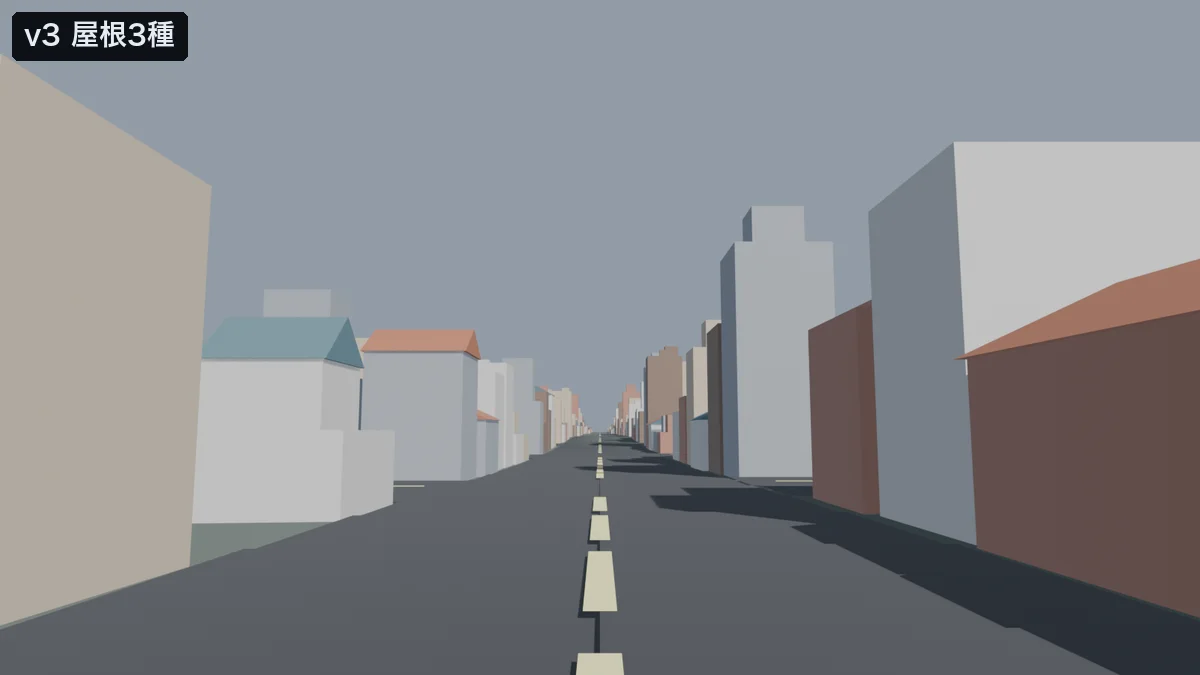

  v3 屋根3種    … 平（そのまま）・切妻・段違い（塔屋）を別の部品として載せる

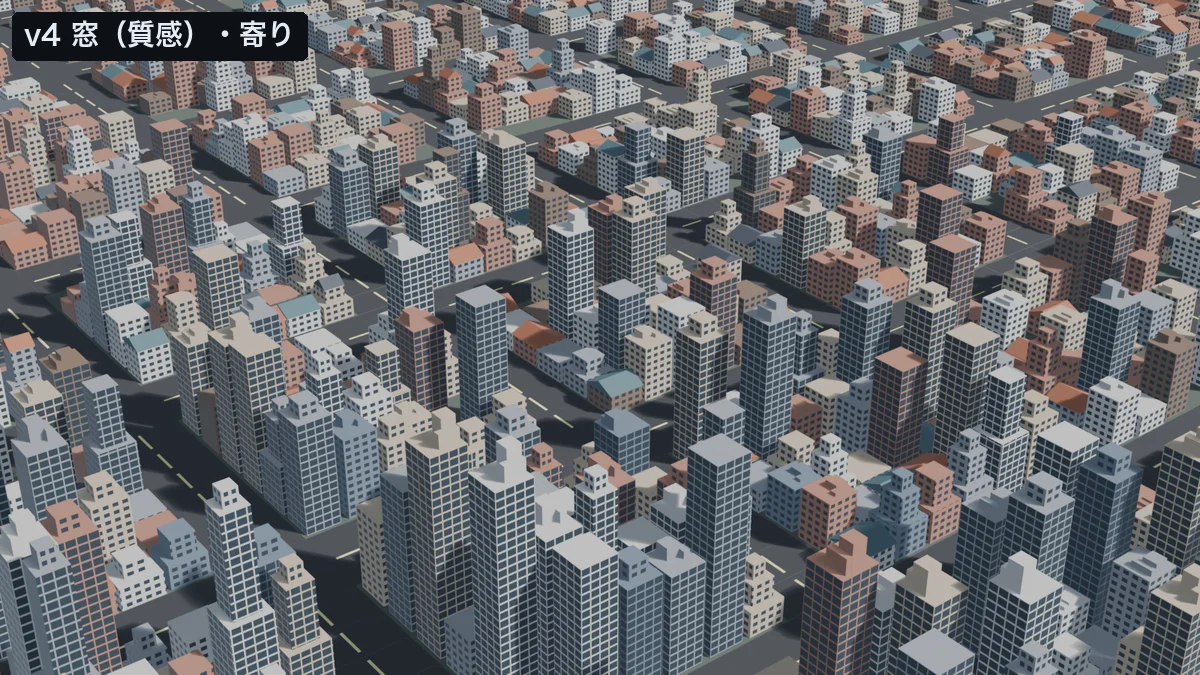

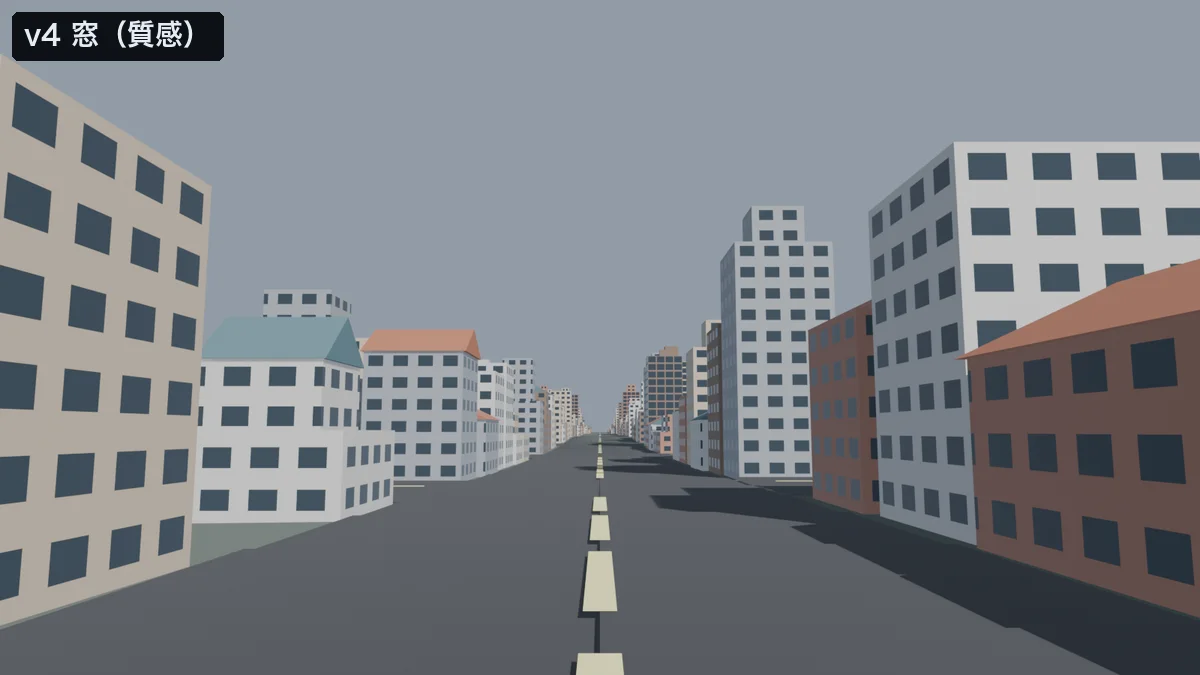

  v4 窓         … 形は増やさず、マテリアル（質感）で窓を描く

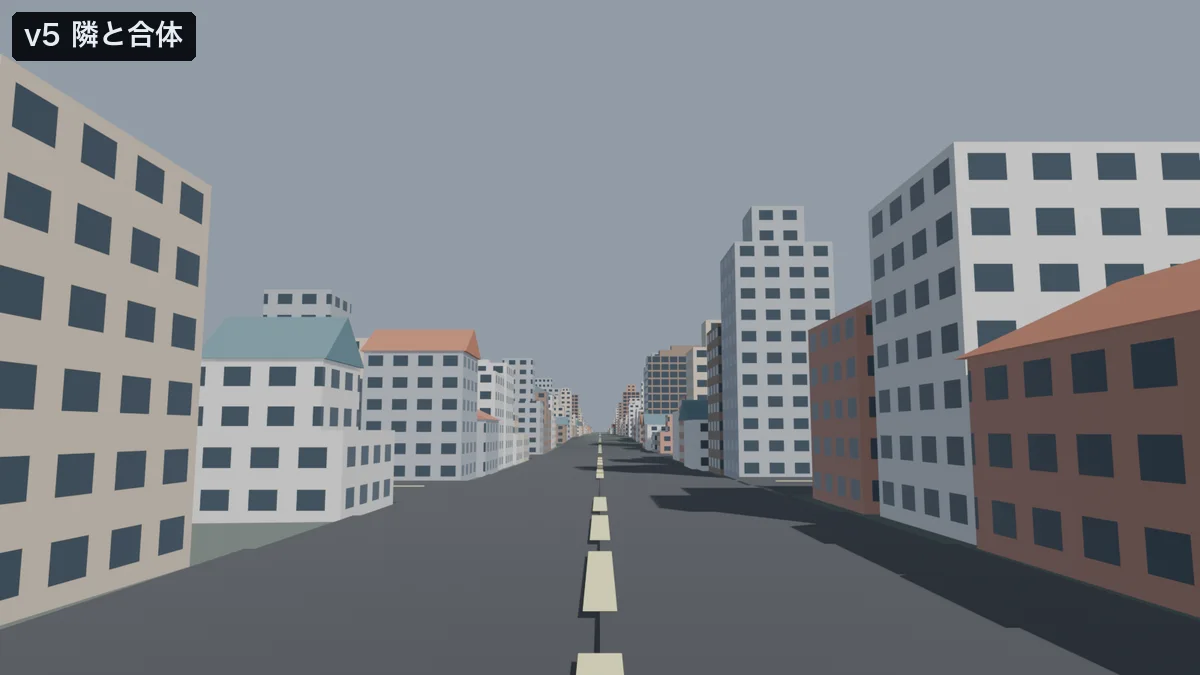

  v5 区画の合体 … となり合う2区画を1棟にまとめる

型の持ち方の比較（実験3）のために、
  approach="parts" … 本体と屋根を別々の分身で置く（v3以降の既定）

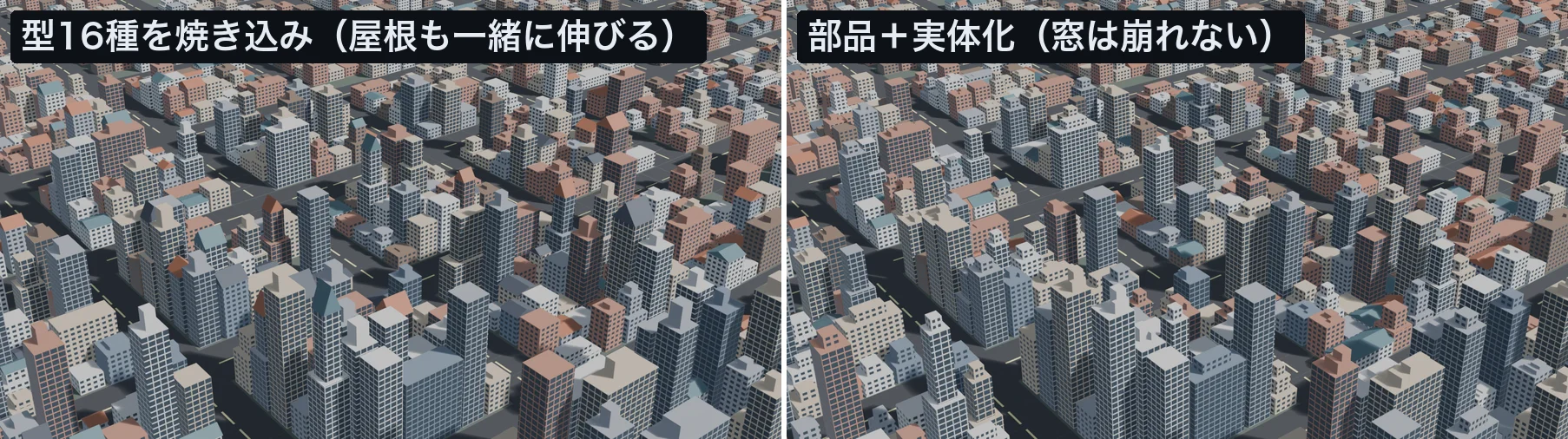

  approach="baked" … 本体＋屋根を1つにした型をN種類用意して、1棟1分身で置く
も切り替えられるようにしてある。

すべてノードの bl_idname で組み立てているので、UIの言語設定に依存しない。
"""

import bpy
import math
import random

# ---------------------------------------------------------------- 定数

FLOOR_H = 0.35        # 1階ぶんの高さ（区画2m＝建物の幅1.6に対して）
WIN_PITCH = 0.40      # 窓の横の間隔
GABLE_H = 0.45        # 切妻屋根の高さ
MERGE_SX = 2.25       # 2区画を1棟にしたときの横の倍率（(2区画-すき間)/建物の幅）

# 外壁の6色（線形の値）。並びは「寒色 → 暖色」で、中心ほど前のほうが出やすい
FACADE_COLORS = [
    (0.16, 0.20, 0.25, 1.0),   # 0 青みのグレー（ガラス張りのビル風）
    (0.30, 0.31, 0.33, 1.0),   # 1 グレー
    (0.58, 0.56, 0.52, 1.0),   # 2 白っぽい
    (0.52, 0.42, 0.30, 1.0),   # 3 ベージュ
    (0.40, 0.19, 0.13, 1.0),   # 4 レンガ
    (0.21, 0.14, 0.10, 1.0),   # 5 こげ茶
]
ROOF_COLORS = [
    (0.07, 0.08, 0.10, 1.0),   # スレート
    (0.36, 0.13, 0.07, 1.0),   # 素焼き瓦
    (0.09, 0.16, 0.18, 1.0),   # 青緑
]
PLAIN_BUILDING = (0.20, 0.21, 0.24, 1.0)   # p973 と同じ色


# ---------------------------------------------------------------- 小道具

def _sock(node, names, in_out="inputs"):
    """ソケットを名前で引く。版で名前が変わることがあるので候補を複数受け付ける。
    同じ名前のソケットが型違いで複数あるノードに備え、有効なものを優先する。"""
    coll = node.inputs if in_out == "inputs" else node.outputs
    if isinstance(names, int):
        return coll[names]
    if isinstance(names, str):
        names = [names]
    for n in names:
        hits = [s for s in coll if s.name == n]
        for s in hits:
            if getattr(s, "enabled", True):
                return s
        if hits:
            return hits[0]
    raise KeyError(f"{node.bl_idname}: socket {names} not found "
                   f"(available: {[s.name for s in coll]})")


def _new_node(ng, idname, label=None, loc=(0, 0), parent=None, **props):
    n = ng.nodes.new(idname)
    if label:
        n.label = label
    n.location = loc
    if parent is not None:
        n.parent = parent
    for k, v in props.items():
        setattr(n, k, v)
    return n


def _link(ng, a, a_sock, b, b_sock):
    ng.links.new(_sock(a, a_sock, "outputs"), _sock(b, b_sock, "inputs"))


def _frame(ng, label, loc):
    f = ng.nodes.new("NodeFrame")
    f.label = label
    f.location = loc
    f.shrink = True
    return f


def _math(ng, op, a=None, b=None, label=None, loc=(0, 0), parent=None, shader=False):
    """Math ノードを1つ作り、入力に値かソケットを差し込む。
    a, b は 数値 / (node, socket名) のどちらでもよい"""
    n = _new_node(ng, "ShaderNodeMath", label=label, loc=loc, parent=parent)
    n.operation = op
    for i, v in enumerate((a, b)):
        if v is None:
            continue
        if isinstance(v, tuple):
            ng.links.new(_sock(v[0], v[1], "outputs"), n.inputs[i])
        else:
            n.inputs[i].default_value = float(v)
    return n


def _v(node):
    """Math ノードの出力を (node, "Value") の形で返す（読みやすさのため）"""
    return (node, "Value")


class _Ctx:
    """ノードを左から右へ並べるための簡単な座標係"""
    def __init__(self, ng, x, y, frame=None):
        self.ng, self.x, self.y, self.frame = ng, x, y, frame

    def m(self, op, a=None, b=None, label=None):
        n = _math(self.ng, op, a, b, label, (self.x, self.y), self.frame)
        self.x += 170
        return _v(n)


def _named(ng, name, loc, parent=None, dtype="FLOAT"):
    n = _new_node(ng, "GeometryNodeInputNamedAttribute", f"属性 {name}", loc, parent)
    n.data_type = dtype
    _sock(n, "Name").default_value = name
    return (n, "Attribute")


def _store(ng, geo, name, value, loc, parent=None, domain="POINT", dtype="FLOAT"):
    """Store Named Attribute。value は数値か (node, socket)"""
    n = _new_node(ng, "GeometryNodeStoreNamedAttribute", f"{name} を記録", loc, parent)
    n.data_type = dtype
    n.domain = domain
    _link(ng, geo[0], geo[1], n, "Geometry")
    _sock(n, "Name").default_value = name
    if isinstance(value, tuple):
        ng.links.new(_sock(value[0], value[1], "outputs"), _sock(n, "Value"))
    else:
        _sock(n, "Value").default_value = value
    return (n, "Geometry")


def _rand(ng, id_src, seed, loc, parent=None, label=None):
    """区画ごとに決まる0〜1の乱数。ID に区画の番号を渡すので、
    ほかの建物を消したり足したりしても、その区画の値は変わらない"""
    n = _new_node(ng, "FunctionNodeRandomValue", label or f"乱数(seed {seed})", loc, parent)
    n.data_type = "FLOAT"
    _sock(n, "Min").default_value = 0.0
    _sock(n, "Max").default_value = 1.0
    ng.links.new(_sock(id_src[0], id_src[1], "outputs"), _sock(n, "ID"))
    _sock(n, "Seed").default_value = seed
    return (n, "Value")


# ---------------------------------------------------------------- ノードの整列

def _est_h(n):
    """ノードの高さの見積もり（画面に出す前は dimensions が 0 のため）"""
    if n.dimensions[1] > 0:
        return n.dimensions[1]
    ins = [s for s in n.inputs if getattr(s, "enabled", True) and not s.hide]
    outs = [s for s in n.outputs if getattr(s, "enabled", True) and not s.hide]
    extra = 60 if n.bl_idname in ("ShaderNodeMath", "ShaderNodeVectorMath", "FunctionNodeRandomValue",
                                  "GeometryNodeStoreNamedAttribute", "GeometryNodeInputNamedAttribute",
                                  "ShaderNodeAttribute", "GeometryNodeDeleteGeometry") else 20
    if n.bl_idname == "ShaderNodeValToRGB":
        extra = 200
    return 50 + 22 * (len(ins) + len(outs)) + extra


def tidy_layout(ng, col_w=210, gap=24, row_max=7000, block_gap=260):
    """記事の画面写真で読めるよう、ノードを並べ直す。
    枠（フレーム）ごとに、つながりの深さで左から右へ列を作り、枠どうしは重ならないよう敷き詰める"""
    nodes = [n for n in ng.nodes if n.bl_idname != "NodeFrame"]
    order = {n.name: i for i, n in enumerate(nodes)}
    groups = {}
    for n in nodes:
        groups.setdefault(n.parent.name if n.parent else "", []).append(n)
    blocks = []
    for key, members in groups.items():
        names = {n.name for n in members}
        preds = {n.name: [] for n in members}
        for l in ng.links:
            if l.from_node.name in names and l.to_node.name in names:
                preds[l.to_node.name].append(l.from_node.name)
        depth = {}

        def d(name, seen=()):
            if name in depth:
                return depth[name]
            if name in seen:
                return 0
            v = 0 if not preds[name] else 1 + max(d(p, seen + (name,)) for p in preds[name])
            depth[name] = v
            return v
        for n in members:
            d(n.name)
        cols = {}
        for n in sorted(members, key=lambda n: order[n.name]):
            cols.setdefault(depth[n.name], []).append(n)
        row_of = {}
        heights = []
        for c in sorted(cols):
            col = cols[c]
            if c > 0:   # 前の列で上にいるものにつながる順に並べる（線の交差を減らす）
                col.sort(key=lambda n: (sum(row_of.get(p, 0) for p in preds[n.name]) /
                                        max(len(preds[n.name]), 1), order[n.name]))
            y = 0
            for n in col:
                row_of[n.name] = y
                y += _est_h(n) + gap
            heights.append(y)
        blocks.append((min(order[n.name] for n in members), key, cols,
                       (max(cols) + 1) * col_w, max(heights) if heights else 0))
    blocks.sort()
    x0 = y0 = 0.0
    row_h = 0.0
    for _, key, cols, w, h in blocks:
        if x0 > 0 and x0 + w > row_max:
            x0, y0, row_h = 0.0, y0 - row_h - block_gap, 0.0
        for c, col in cols.items():
            y = 0
            for n in col:
                n.location_absolute = (x0 + c * col_w, y0 - y - 60)
                y += _est_h(n) + gap
        x0 += w + block_gap
        row_h = max(row_h, h + 60)


# ---------------------------------------------------------------- マテリアル

def _mat_base(name):
    mat = bpy.data.materials.get(name) or bpy.data.materials.new(name)
    mat.use_nodes = True
    nt = mat.node_tree
    nt.nodes.clear()
    out = nt.nodes.new("ShaderNodeOutputMaterial")
    out.location = (900, 0)
    bsdf = nt.nodes.new("ShaderNodeBsdfPrincipled")
    bsdf.location = (600, 0)
    nt.links.new(bsdf.outputs["BSDF"], out.inputs["Surface"])
    return mat, nt, bsdf


def ensure_simple(name, color, roughness):
    mat, nt, bsdf = _mat_base(name)
    bsdf.inputs["Base Color"].default_value = color
    bsdf.inputs["Roughness"].default_value = roughness
    return mat


def _shader_attr(nt, name, loc, vector=False):
    """シェーダーで属性を読む。
    分身のまま（Instancer）と、実体化したあと（Geometry）のどちらでも拾えるよう、2つ足し合わせる。
    無い側は 0 を返すので、足しても値は変わらない。"""
    a = nt.nodes.new("ShaderNodeAttribute")
    a.attribute_type = "GEOMETRY"
    a.attribute_name = name
    a.location = loc
    b = nt.nodes.new("ShaderNodeAttribute")
    b.attribute_type = "INSTANCER"
    b.attribute_name = name
    b.location = (loc[0], loc[1] - 180)
    if vector:
        add = nt.nodes.new("ShaderNodeVectorMath")
        add.operation = "ADD"
        add.location = (loc[0] + 200, loc[1])
        nt.links.new(a.outputs["Vector"], add.inputs[0])
        nt.links.new(b.outputs["Vector"], add.inputs[1])
        return add.outputs["Vector"]
    add = nt.nodes.new("ShaderNodeMath")
    add.operation = "ADD"
    add.location = (loc[0] + 200, loc[1])
    nt.links.new(a.outputs["Fac"], add.inputs[0])
    nt.links.new(b.outputs["Fac"], add.inputs[1])
    return add.outputs["Value"]


def _ramp(nt, fac, colors, loc):
    """0〜1 の値を、区切りごとに決まった色へ（補間なし）"""
    r = nt.nodes.new("ShaderNodeValToRGB")
    r.location = loc
    cr = r.color_ramp
    cr.interpolation = "CONSTANT"
    n = len(colors)
    while len(cr.elements) < n:
        cr.elements.new(0.5)
    for i, c in enumerate(colors):
        cr.elements[i].position = i / n
        cr.elements[i].color = c
    nt.links.new(fac, r.inputs[0])
    return r.outputs["Color"]


def _id_to_fac(nt, id_out, n, loc):
    """色の番号(0〜n-1) → ランプの読み位置 (番号+0.5)/n"""
    a = nt.nodes.new("ShaderNodeMath")
    a.operation = "ADD"
    a.inputs[1].default_value = 0.5
    a.location = loc
    nt.links.new(id_out, a.inputs[0])
    d = nt.nodes.new("ShaderNodeMath")
    d.operation = "DIVIDE"
    d.inputs[1].default_value = float(n)
    d.location = (loc[0] + 170, loc[1])
    nt.links.new(a.outputs["Value"], d.inputs[0])
    return d.outputs["Value"]


def build_building_material(color=False, windows=False):
    """建物のマテリアル。
      color   … 分身ごとの属性 col_id で外壁の色を選ぶ
      windows … 形を増やさず、面の上に窓の格子を描く（★v4）
    窓の位置は、建物メッシュに書き込んだ『元の座標 lpos』と『元の向き lnrm』から計算する。
    テクスチャ座標の Object を使わないのは、実体化（Realize）すると座標の基準が街全体に
    変わってしまい、窓がずれるため。"""
    mat, nt, bsdf = _mat_base("Building")
    bsdf.inputs["Roughness"].default_value = 0.6

    if color:
        cid = _shader_attr(nt, "col_id", (-1400, 400))
        base = _ramp(nt, _id_to_fac(nt, cid, len(FACADE_COLORS), (-1000, 400)),
                     FACADE_COLORS, (-600, 400))
    else:
        rgb = nt.nodes.new("ShaderNodeRGB")
        rgb.location = (-600, 400)
        rgb.outputs[0].default_value = PLAIN_BUILDING
        base = rgb.outputs[0]

    if not windows:
        nt.links.new(base, bsdf.inputs["Base Color"])
        return mat

    L = nt.links

    def M(op, a, b=None, x=0, y=0):
        n = nt.nodes.new("ShaderNodeMath")
        n.operation = op
        n.location = (x, y)
        for i, v in enumerate((a, b)):
            if v is None:
                continue
            if isinstance(v, (int, float)):
                n.inputs[i].default_value = float(v)
            else:
                L.new(v, n.inputs[i])
        return n.outputs["Value"]

    lpos = _shader_attr(nt, "lpos", (-2200, -200), vector=True)
    lnrm = _shader_attr(nt, "lnrm", (-2200, -600), vector=True)
    floors = _shader_attr(nt, "floors", (-2200, -1000))
    sx_raw = _shader_attr(nt, "sx", (-2200, -1400))
    sx = M("MAXIMUM", sx_raw, 1.0, -1800, -1400)          # 属性が無いときは1倍

    sp = nt.nodes.new("ShaderNodeSeparateXYZ"); sp.location = (-1800, -200)
    L.new(lpos, sp.inputs[0])
    sn = nt.nodes.new("ShaderNodeSeparateXYZ"); sn.location = (-1800, -600)
    L.new(lnrm, sn.inputs[0])

    # 縦：元の高さ(0〜1) × 階数 → 小数部が「その階のどのあたりか」
    fl = M("MULTIPLY", sp.outputs["Z"], floors, -1500, -100)
    fv = M("FRACT", fl, None, -1330, -100)
    # 横：X向きの面ならY座標、Y向きの面ならX座標（横に伸ばした棟は倍率をかけて実寸に戻す）
    nx = M("ABSOLUTE", sn.outputs["X"], None, -1500, -500)
    use_y = M("GREATER_THAN", nx, 0.5, -1330, -500)
    ux = M("MULTIPLY", sp.outputs["X"], sx, -1500, -300)
    u_diff = M("SUBTRACT", sp.outputs["Y"], ux, -1330, -300)
    # u = ux + (Y座標 - ux) × use_y（Y向きの面なら ux、X向きの面なら Y座標）
    t = M("MULTIPLY", u_diff, use_y, -1160, -300)
    u = M("ADD", ux, t, -990, -300)
    fu = M("FRACT", M("DIVIDE", u, WIN_PITCH, -820, -300), None, -650, -300)

    # 高い建物（12階以上）は窓を大きく＝カーテンウォール風
    big = M("GREATER_THAN", floors, 11.5, -1500, -900)
    v_lo = M("SUBTRACT", 0.30, M("MULTIPLY", big, 0.18, -1330, -900), -1160, -900)
    v_hi = M("ADD", 0.80, M("MULTIPLY", big, 0.12, -1330, -1000), -1160, -1000)
    u_lo = M("SUBTRACT", 0.20, M("MULTIPLY", big, 0.14, -1330, -1100), -1160, -1100)
    u_hi = M("ADD", 0.80, M("MULTIPLY", big, 0.14, -1330, -1200), -1160, -1200)

    m_v = M("MULTIPLY", M("GREATER_THAN", fv, v_lo, -480, -100), M("LESS_THAN", fv, v_hi, -480, -200), -310, -150)
    m_u = M("MULTIPLY", M("GREATER_THAN", fu, u_lo, -480, -300), M("LESS_THAN", fu, u_hi, -480, -400), -310, -350)
    nz = M("ABSOLUTE", sn.outputs["Z"], None, -1500, -700)
    side = M("LESS_THAN", nz, 0.5, -1330, -700)                     # 屋上・床には描かない
    in_body = M("LESS_THAN", sp.outputs["Z"], 0.999, -1330, -800)   # 屋上設備には描かない
    has_f = M("GREATER_THAN", floors, 0.5, -1160, -800)            # 階数が無い分身には描かない
    mask = M("MULTIPLY", M("MULTIPLY", m_v, m_u, -140, -250),
             M("MULTIPLY", M("MULTIPLY", side, in_body, -310, -700), has_f, -140, -700), 30, -400)

    glass = nt.nodes.new("ShaderNodeRGB"); glass.location = (-140, 200)
    glass.outputs[0].default_value = (0.035, 0.05, 0.065, 1.0)
    mix = nt.nodes.new("ShaderNodeMix"); mix.location = (200, 300)
    mix.data_type = "RGBA"
    L.new(mask, mix.inputs["Factor"])
    L.new(base, mix.inputs[6])          # A（RGBA）
    L.new(glass.outputs[0], mix.inputs[7])  # B（RGBA）
    L.new(mix.outputs[2], bsdf.inputs["Base Color"])
    rough = M("SUBTRACT", 0.6, M("MULTIPLY", mask, 0.45, 200, -200), 380, -200)
    L.new(rough, bsdf.inputs["Roughness"])
    return mat


def build_roof_material():
    mat, nt, bsdf = _mat_base("Roof")
    bsdf.inputs["Roughness"].default_value = 0.7
    cid = _shader_attr(nt, "col_id", (-1200, 300))
    m3 = nt.nodes.new("ShaderNodeMath"); m3.operation = "FLOORED_MODULO"
    m3.inputs[1].default_value = 3.0; m3.location = (-800, 300)
    nt.links.new(cid, m3.inputs[0])
    col = _ramp(nt, _id_to_fac(nt, m3.outputs["Value"], 3, (-600, 300)), ROOF_COLORS, (-200, 300))
    nt.links.new(col, bsdf.inputs["Base Color"])
    return mat


def ensure_all_materials(color=False, windows=False):
    mats = {
        "Building": build_building_material(color, windows),
        "Roof": build_roof_material(),
        "Road": ensure_simple("Road", (0.045, 0.045, 0.05, 1.0), 0.75),
        "Line": ensure_simple("Line", (0.85, 0.80, 0.35, 1.0), 0.60),
        "Ground": ensure_simple("Ground", (0.09, 0.11, 0.09, 1.0), 0.90),
    }
    for m in mats.values():
        tidy_layout(m.node_tree, col_w=230)
    return mats


# ---------------------------------------------------------------- メッシュ部品

def _box(sx, sy, sz, z0, cx=0.0, cy=0.0):
    """(頂点, 面) を返す。底面が z0"""
    v = []
    for dx in (-0.5, 0.5):
        for dy in (-0.5, 0.5):
            for dz in (0.0, 1.0):
                v.append((cx + dx * sx, cy + dy * sy, z0 + dz * sz))
    f = [(0, 2, 6, 4), (1, 5, 7, 3), (0, 4, 5, 1),
         (2, 3, 7, 6), (0, 1, 3, 2), (4, 6, 7, 5)]
    return v, f


def _gable(sx, sy, h, z0):
    """切妻屋根（棟がX方向＝正面と平行）。正面は -Y"""
    hx, hy = sx * 0.5, sy * 0.5
    v = [(-hx, -hy, z0), (hx, -hy, z0), (hx, hy, z0), (-hx, hy, z0),
         (-hx, 0.0, z0 + h), (hx, 0.0, z0 + h)]
    f = [(0, 1, 5, 4), (2, 3, 4, 5), (1, 2, 5), (3, 0, 4), (3, 2, 1, 0)]
    return v, f


def _make_mesh(name, parts, mats, with_local=True):
    """parts = [(verts, faces, material_index), ...] を1つのメッシュにまとめる。
    with_local: 窓の計算に使う『元の座標 lpos』『元の向き lnrm』を書き込む"""
    me = bpy.data.meshes.new(name)
    verts, faces, mi = [], [], []
    for vs, fs, m in parts:
        off = len(verts)
        verts += vs
        faces += [tuple(i + off for i in f) for f in fs]
        mi += [m] * len(fs)
    me.from_pydata(verts, [], faces)
    me.update()
    for m in mats:
        me.materials.append(m)
    for p, m in zip(me.polygons, mi):
        p.material_index = m
    if with_local:
        a = me.attributes.new("lpos", "FLOAT_VECTOR", "POINT")
        a.data.foreach_set("vector", [c for vv in me.vertices for c in vv.co])
        b = me.attributes.new("lnrm", "FLOAT_VECTOR", "FACE")
        b.data.foreach_set("vector", [c for p in me.polygons for c in p.normal])
    return me


def _fresh_collection(name):
    old = bpy.data.collections.get(name)
    if old:
        for ob in list(old.objects):
            bpy.data.objects.remove(ob, do_unlink=True)
        bpy.data.collections.remove(old)
    return bpy.data.collections.new(name)


def _add(coll, name, me):
    ob = bpy.data.objects.new(name, me)
    coll.objects.link(ob)
    return ob


BODY_COLL = "p1002_Bodies"
ROOF_COLL = "p1002_Roofs"


def build_body_collection(mats, cell=2.0, orient=False):
    """建物の本体4種（p973と同じ寸法）。高さ1でつくり、分身のZ倍率で伸ばす。
    orient=True のときだけ、屋上設備(C)を建物の奥へ寄せる（向きが画で分かるように）"""
    coll = _fresh_collection(BODY_COLL)
    bm = [mats["Building"]]
    fp = 0.80 * cell
    a = _box(fp, fp, 1.0, 0.0)
    b1 = _box(fp * 1.06, fp * 1.06, 0.55, 0.0)
    b2 = _box(fp * 0.69, fp * 0.69, 0.45, 0.55)
    back = fp * 0.22 if orient else 0.0           # 正面は -Y。奥は +Y
    c1 = _box(fp, fp, 1.0, 0.0)
    c2 = _box(fp * 0.38, fp * 0.38, 0.12, 1.0, 0.0, back)
    c3 = _box(fp * 0.18, fp * 0.55, 0.07, 1.0, fp * 0.25, back * 0.6)
    d = _box(fp * 1.15, fp * 1.15, 1.0, 0.0)
    # Separate Children は名前順。A/B/C/D の順に並ぶよう名前を付ける
    _add(coll, "bld_A_box", _make_mesh("bld_A", [(*a, 0)], bm))
    _add(coll, "bld_B_setback", _make_mesh("bld_B", [(*b1, 0), (*b2, 0)], bm))
    _add(coll, "bld_C_rooftop", _make_mesh("bld_C", [(*c1, 0), (*c2, 0), (*c3, 0)], bm))
    _add(coll, "bld_D_low", _make_mesh("bld_D", [(*d, 0)], bm))
    return coll


def build_roof_collection(mats, cell=2.0):
    """屋根の部品2種。『平』は部品を置かない（＝本体の屋上がそのまま見える）"""
    coll = _fresh_collection(ROOF_COLL)
    fp = 0.80 * cell
    g = _gable(fp * 1.06, fp * 1.06, 1.0, 0.0)          # 少しだけ軒を出す
    p = _box(fp * 0.55, fp * 0.55, 1.0, 0.0)            # 塔屋（段違い）
    _add(coll, "roof_1_gable", _make_mesh("roof_gable", [(*g, 0)], [mats["Roof"]], with_local=False))
    _add(coll, "roof_2_step", _make_mesh("roof_step", [(*p, 0)], [mats["Building"]]))
    return coll


def build_baked_collection(mats, n, cell=2.0, seed=1002):
    """実験3用：本体＋屋根を1つのメッシュに焼き込んだ型を n 種類つくる。
    i 番目の型 = 本体 (i % 4) × 屋根 ((i // 4) % 3) に、寸法を少しずつ揺らしたもの"""
    coll = _fresh_collection(f"p1002_Baked{n}")
    rng = random.Random(seed)
    fp = 0.80 * cell
    for i in range(n):
        body, roof = i % 4, (i // 4) % 3
        k = rng.uniform(0.90, 1.05)          # 敷地に対する太さ
        parts = []
        if body == 0:
            parts.append((*_box(fp * k, fp * k, 1.0, 0.0), 0)); top = k
        elif body == 1:
            r = rng.uniform(0.45, 0.65)
            parts.append((*_box(fp * 1.06 * k, fp * 1.06 * k, r, 0.0), 0))
            parts.append((*_box(fp * 0.69 * k, fp * 0.69 * k, 1.0 - r, r), 0)); top = 0.69 * k
        elif body == 2:
            parts.append((*_box(fp * k, fp * k, 1.0, 0.0), 0))
            parts.append((*_box(fp * 0.38, fp * 0.38, 0.12, 1.0, 0.0, rng.uniform(-0.3, 0.3)), 0))
            roof = 0; top = k
        else:
            parts.append((*_box(fp * 1.15 * k, fp * 1.15 * k, 1.0, 0.0), 0)); top = 1.15 * k
        rh = rng.uniform(0.10, 0.20)          # 屋根の高さ（本体の高さに対する割合）
        if roof == 1:
            parts.append((*_gable(fp * 1.06 * top, fp * 1.06 * top, rh, 1.0), 1))
        elif roof == 2:
            parts.append((*_box(fp * 0.55 * top, fp * 0.55 * top, rh, 1.0), 0))
        _add(coll, f"baked_{i:03d}", _make_mesh(f"baked_{i:03d}", parts,
                                                [mats["Building"], mats["Roof"]]))
    return coll


# ---------------------------------------------------------------- 本体

def build_city_tree(name="CityNodes",
                    grid_n=81, cell=2.0,
                    road_every=8, road_width=2,
                    empty_ratio=0.10,
                    # ★起伏は「基本は平ら、あっても緩やかな坂」にする（Windows での検証で判明・2026-10-07）。
                    #   p973 の設定（振幅6.0・細かさ1.6・Detail 2）だと2〜3区画ごとに高さが変わり、
                    #   区画ごとに平らな板を敷く道路が段差になって波打った（勾配 平均11.4%・最大45.8%）。
                    #   波を12.5倍に伸ばし、細かい段を減らし、高さを下げると 平均0.7%・最大2.8%
                    terrain_amp=1.6, terrain_scale=0.128, terrain_detail=1.0,
                    orient=False,       # v1: 正面を近い道路へ向ける
                    color=False,        # v1: 外壁の色
                    floors=False,       # v2: 階数で高さ
                    roofs=False,        # v3: 屋根3種
                    windows=False,      # v4: 窓（マテリアル）
                    merge=False,        # v5: 隣の区画と合体
                    merge_base=0.15, merge_center=0.25,
                    approach="parts",   # "parts" / "baked"
                    baked_n=4,
                    realize=False,
                    seed_by="cell"):    # "cell"=区画の番号で乱数 / "index"=p973と同じ（点の通し番号）
    """街を生成するジオメトリノードツリーを組み立てて返す"""

    ng = bpy.data.node_groups.get(name)
    if ng:
        bpy.data.node_groups.remove(ng)
    ng = bpy.data.node_groups.new(name, "GeometryNodeTree")
    ng.interface.new_socket("Geometry", in_out="INPUT", socket_type="NodeSocketGeometry")
    ng.interface.new_socket("Geometry", in_out="OUTPUT", socket_type="NodeSocketGeometry")

    mats = ensure_all_materials(color=color, windows=windows)
    size = cell * (grid_n - 1)
    half = size * 0.5

    g_out = _new_node(ng, "NodeGroupOutput", loc=(5200, 0))

    # ---------------- ① 地面のグリッドと起伏（p973と同じ：枝分かれの前に起伏を入れる）
    f1 = _frame(ng, "① 地面のグリッドと起伏", (-2200, 400))
    grid = _new_node(ng, "GeometryNodeMeshGrid", "地面グリッド", (-2100, 300), f1)
    _sock(grid, "Size X").default_value = size
    _sock(grid, "Size Y").default_value = size
    _sock(grid, "Vertices X").default_value = grid_n
    _sock(grid, "Vertices Y").default_value = grid_n
    noise = _new_node(ng, "ShaderNodeTexNoise", "ノイズ", (-2100, 0), f1)
    _sock(noise, "Scale").default_value = terrain_scale / max(size, 1e-6) * 40.0
    _sock(noise, "Detail").default_value = terrain_detail
    n_sub = _math(ng, "SUBTRACT", (noise, ["Fac", "Factor"]), 0.5, "中心を0に", (-1900, 0), f1)
    n_mul = _math(ng, "MULTIPLY", _v(n_sub), terrain_amp, "起伏の高さ", (-1730, 0), f1)
    n_vec = _new_node(ng, "ShaderNodeCombineXYZ", "Zだけ動かす", (-1560, 0), f1)
    _link(ng, n_mul, "Value", n_vec, "Z")
    setpos = _new_node(ng, "GeometryNodeSetPosition", "起伏をつける", (-1560, 300), f1)
    _link(ng, grid, "Mesh", setpos, "Geometry")
    _link(ng, n_vec, "Vector", setpos, "Offset")
    smooth = _new_node(ng, "GeometryNodeSetShadeSmooth", "地面をなめらかに", (-1390, 300), f1)
    _link(ng, setpos, "Geometry", smooth, "Mesh")       # 折れ目の陰影を目立たなくする（形は変わらない）
    ground = (smooth, "Mesh")

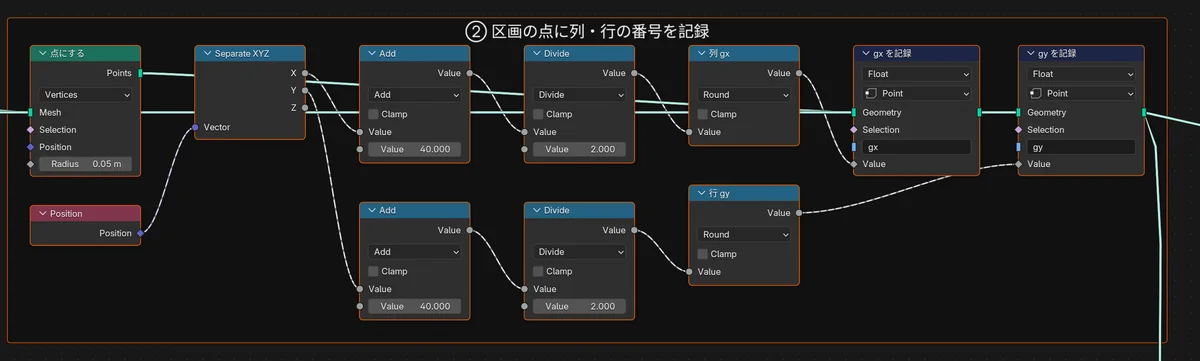

    # ---------------- ② 区画の点に「何列目・何行目か」を記録する
    # ★あとで建物を消したり寄せたりしても、この番号はついて回る。乱数もここから作る
    f2 = _frame(ng, "② 区画の点に列・行の番号を記録", (-1300, 400))
    m2p = _new_node(ng, "GeometryNodeMeshToPoints", "点にする", (-1250, 300), f2)
    _link(ng, ground[0], ground[1], m2p, "Mesh")
    pos0 = _new_node(ng, "GeometryNodeInputPosition", None, (-1250, 80), f2)
    sep0 = _new_node(ng, "ShaderNodeSeparateXYZ", None, (-1080, 80), f2)
    _link(ng, pos0, "Position", sep0, "Vector")
    c = _Ctx(ng, -910, 120, f2)
    gx_f = c.m("ROUND", c.m("DIVIDE", c.m("ADD", (sep0, "X"), half), cell), None, "列 gx")
    c = _Ctx(ng, -910, -40, f2)
    gy_f = c.m("ROUND", c.m("DIVIDE", c.m("ADD", (sep0, "Y"), half), cell), None, "行 gy")
    pts = _store(ng, (m2p, "Points"), "gx", gx_f, (-300, 300), f2)
    pts = _store(ng, pts, "gy", gy_f, (-130, 300), f2)

    # 以降は記録した番号から計算する（位置を動かしても変わらない）
    fA = _frame(ng, "②' 道路・空き地・合体の判定", (-1300, -400))
    gx = _named(ng, "gx", (-1250, -500), fA)
    gy = _named(ng, "gy", (-1250, -660), fA)
    c = _Ctx(ng, -1080, -480, fA)
    bx = c.m("FLOORED_MODULO", gx, road_every, "ブロック内の列")
    is_col = c.m("LESS_THAN", bx, float(road_width), "縦の道路")
    c = _Ctx(ng, -1080, -640, fA)
    by = c.m("FLOORED_MODULO", gy, road_every, "ブロック内の行")
    is_row = c.m("LESS_THAN", by, float(road_width), "横の道路")
    is_road = _v(_math(ng, "MAXIMUM", is_col, is_row, "どちらかが道路", (-570, -560), fA))
    # 区画の通し番号（p973の Index と同じ値：行 × N ＋ 列）
    c = _Ctx(ng, -1080, -820, fA)
    cid = c.m("ADD", c.m("MULTIPLY", gy, grid_n), gx, "区画の通し番号")
    # 空き地は p973 と同じ式（同じ区画が空き地になる）
    c = _Ctx(ng, -1080, -980, fA)
    r_e = c.m("FRACT", c.m("MULTIPLY", c.m("SINE", c.m("MULTIPLY", cid, 78.233)), 43758.547))
    is_empty = c.m("LESS_THAN", r_e, empty_ratio, "空き地")

    kill = _v(_math(ng, "MAXIMUM", is_road, is_empty, "消す点", (-400, -700), fA))

    # 中心からの近さ z（0=端〜1=中心）と、p973の高さ倍率 zone = 1〜4
    fz = _frame(ng, "中心からの近さ（ゾーニング）", (-1300, -1300))
    c = _Ctx(ng, -1080, -1360, fz)
    wx = c.m("SUBTRACT", c.m("MULTIPLY", gx, cell), half)
    c = _Ctx(ng, -1080, -1520, fz)
    wy = c.m("SUBTRACT", c.m("MULTIPLY", gy, cell), half)
    c = _Ctx(ng, -740, -1440, fz)
    dist = c.m("SQRT", c.m("ADD", c.m("MULTIPLY", wx, wx), c.m("MULTIPLY", wy, wy)), None, "中心からの距離")
    near = c.m("POWER", c.m("MAXIMUM", c.m("SUBTRACT", 1.0, c.m("DIVIDE", dist, half)), 0.0), 2.0, "近さ z")
    zone = c.m("ADD", c.m("MULTIPLY", near, 3.0), 1.0, "高さ倍率 1〜4")

    merged = None
    if merge:
        # ★v5 となり合う2区画（左＝偶数列、右＝奇数列）を1棟にする。
        #   道路は8区画ごとに2区画幅なので、(2,3)(4,5)(6,7) の組がちょうど道路をまたがない
        fm = _frame(ng, "⑤ 隣の区画と合体（左を残して右を消す）", (-1300, -1900))
        c = _Ctx(ng, -1080, -1960, fm)
        is_left = c.m("LESS_THAN", c.m("FLOORED_MODULO", gx, 2.0), 0.5, "偶数列＝左")
        c = _Ctx(ng, -1080, -2120, fm)
        pair = c.m("ADD", c.m("MULTIPLY", gy, grid_n), c.m("FLOOR", c.m("DIVIDE", gx, 2.0)), "組の番号")
        r_m = _rand(ng, pair, 5, (-400, -2120), fm, "合体の乱数（組ごと）")
        c = _Ctx(ng, -230, -2040, fm)
        p_m = c.m("ADD", c.m("MULTIPLY", near, merge_center), merge_base, "合体する確率")
        hit = c.m("LESS_THAN", r_m, p_m)
        c = _Ctx(ng, 280, -1960, fm)
        merged = c.m("MULTIPLY", c.m("MULTIPLY", hit, is_left), c.m("SUBTRACT", 1.0, is_road), "合体する左")
        right_kill = c.m("MULTIPLY", hit, c.m("SUBTRACT", 1.0, is_left), "消える右")
        kill = _v(_math(ng, "MAXIMUM", kill, right_kill, "消す点（合体込み）", (960, -1900), fm))

    delete = _new_node(ng, "GeometryNodeDeleteGeometry", "建物の点だけ残す", (200, 300))
    delete.domain = "POINT"
    _link(ng, pts[0], pts[1], delete, "Geometry")
    ng.links.new(_sock(kill[0], kill[1], "outputs"), _sock(delete, "Selection"))
    bpts = (delete, "Geometry")

    # ---------------- ③ 建物ごとの値（種類・高さ・色・向き・屋根）
    f3 = _frame(ng, "③ 建物ごとの値を決める", (-1300, -2500))
    if seed_by == "index":
        # p973と同じ作り方：点の通し番号（Index）から乱数を作る。
        # ★建物を1つ消すと、それより後ろの番号が全部ずれる
        idx = _new_node(ng, "GeometryNodeInputIndex", "点の通し番号", (-1250, -2560), f3)
        c = _Ctx(ng, -1080, -2560, f3)
        r_t = c.m("FRACT", c.m("MULTIPLY", c.m("SINE", c.m("MULTIPLY", (idx, "Index"), 78.233)), 43758.547))
        c = _Ctx(ng, -1080, -2720, f3)
        r_h = c.m("FRACT", c.m("MULTIPLY", c.m("SINE", c.m("MULTIPLY", (idx, "Index"), 12.9898)), 43758.547))
    else:
        r_t = _rand(ng, cid, 3, (-1080, -2560), f3, "種類の乱数")
        r_h = _rand(ng, cid, 2, (-1080, -2720), f3, "高さの乱数")
    c = _Ctx(ng, -880, -2560, f3)
    typ = c.m("FLOOR", c.m("MULTIPLY", r_t, 4.0), None, "種類 0〜3")
    is_C = _v(_math(ng, "COMPARE", typ, 2.0, "屋上設備型", (-370, -2640), f3))
    is_D = _v(_math(ng, "COMPARE", typ, 3.0, "低層ワイド型", (-370, -2800), f3))
    for n in (is_C[0], is_D[0]):
        n.inputs[2].default_value = 0.1        # COMPARE の許容差

    if floors:
        # ★v2 階数：端は2〜4階、中心は8〜40階。乱数を2乗して低い建物を多めにする
        c = _Ctx(ng, -880, -2960, f3)
        f_min = c.m("ADD", c.m("MULTIPLY", near, 6.0), 2.0, "最小階")
        c = _Ctx(ng, -880, -3120, f3)
        f_max = c.m("ADD", c.m("MULTIPLY", near, 36.0), 4.0, "最大階")
        c = _Ctx(ng, -540, -3040, f3)
        fl = c.m("MAXIMUM", c.m("ROUND", c.m("ADD", f_min, c.m("MULTIPLY", c.m("SUBTRACT", f_max, f_min),
                                                              c.m("MULTIPLY", r_h, r_h)))), 1.0, "階数")
        # 低層ワイド型は3階まで
        c = _Ctx(ng, 480, -3040, f3)
        capped = c.m("MINIMUM", fl, 3.0)
        fl = c.m("ADD", fl, c.m("MULTIPLY", is_D, c.m("SUBTRACT", capped, fl)), "階数（D型は3階まで）")
        height = c.m("MULTIPLY", fl, FLOOR_H, "高さ＝階数×1階ぶん")
    else:
        # p973と同じ：(1〜5) × ゾーニング倍率(1〜4)
        c = _Ctx(ng, -880, -2960, f3)
        height = c.m("MULTIPLY", c.m("ADD", c.m("MULTIPLY", r_h, 4.0), 1.0), zone, "高さ（p973と同じ）")
        fl = c.m("DIVIDE", height, FLOOR_H, "階数の換算（記録用）")

    rot_z = 0.0
    if orient:
        # ★v1 正面（-Y）を、いちばん近い道路へ向ける
        fo = _frame(ng, "①' 正面を近い道路へ向ける", (-1300, -3500))
        c = _Ctx(ng, -1080, -3560, fo)
        dl = c.m("SUBTRACT", bx, road_width - 1.0, "左の道路まで")
        dr = c.m("SUBTRACT", float(road_every), bx, "右の道路まで")
        c = _Ctx(ng, -1080, -3720, fo)
        dd = c.m("SUBTRACT", by, road_width - 1.0, "下の道路まで")
        du = c.m("SUBTRACT", float(road_every), by, "上の道路まで")
        c = _Ctx(ng, -740, -3560, fo)
        dxm = c.m("MINIMUM", dl, dr)
        x_neg = c.m("LESS_THAN", dl, c.m("ADD", dr, 0.01), "左が近い")
        c = _Ctx(ng, -740, -3720, fo)
        dym = c.m("MINIMUM", dd, du)
        y_neg = c.m("LESS_THAN", dd, c.m("ADD", du, 0.01), "下が近い")
        use_x = _v(_math(ng, "LESS_THAN", dxm, dym, "横の道路より縦の道路が近い", (-230, -3640), fo))
        if merged:   # 合体した横長の棟は、長い辺を上下の道路へ向ける
            use_x = _v(_math(ng, "MULTIPLY", use_x, _v(_math(ng, "SUBTRACT", 1.0, merged, None, (-60, -3800), fo)),
                             None, (110, -3640), fo))
        # 角度（度）：-Y=0 / +X=90 / +Y=180 / -X=270
        c = _Ctx(ng, -230, -3880, fo)
        ang_x = c.m("ADD", 90.0, c.m("MULTIPLY", x_neg, 180.0))           # 左なら270、右なら90
        ang_y = c.m("MULTIPLY", c.m("SUBTRACT", 1.0, y_neg), 180.0)       # 下なら0、上なら180
        c = _Ctx(ng, 280, -3800, fo)
        ang = c.m("ADD", ang_y, c.m("MULTIPLY", use_x, c.m("SUBTRACT", ang_x, ang_y)), "向き（度）")
        rot_z = c.m("RADIANS", ang)

    col_id = 0.0
    if color:
        # ★v1 色：中心ほど寒色（ガラス・グレー）、外ほど暖色（ベージュ・レンガ）が出やすい
        r_c = _rand(ng, cid, 4, (-1080, -4100), f3, "色の乱数")
        c = _Ctx(ng, -880, -4100, f3)
        mixv = c.m("ADD", c.m("MULTIPLY", r_c, 0.7), c.m("MULTIPLY", c.m("SUBTRACT", 1.0, near), 0.3))
        col_id = c.m("FLOOR", c.m("MULTIPLY", c.m("MINIMUM", mixv, 0.999), float(len(FACADE_COLORS))),
                     None, "色の番号 0〜5")

    roof_id = 0.0
    if roofs:
        # ★v3 屋根：低い建物は切妻、高い建物は段違い（塔屋）が出やすい。屋上設備型は平のまま
        r_r = _rand(ng, cid, 6, (-1080, -4300), f3, "屋根の乱数")
        c = _Ctx(ng, -880, -4300, f3)
        low = c.m("LESS_THAN", fl, 3.5, "3階以下")
        high = c.m("GREATER_THAN", fl, 10.5, "11階以上")
        mid = c.m("SUBTRACT", c.m("SUBTRACT", 1.0, low), high)
        c = _Ctx(ng, -880, -4460, f3)
        p_g = c.m("ADD", c.m("MULTIPLY", low, 0.6), c.m("MULTIPLY", mid, 0.1), "切妻の確率")
        p_s = c.m("ADD", c.m("ADD", c.m("MULTIPLY", low, 0.1), c.m("MULTIPLY", mid, 0.3)),
                  c.m("MULTIPLY", high, 0.5), "段違いの確率")
        c = _Ctx(ng, -880, -4620, f3)
        is_g = c.m("LESS_THAN", r_r, p_g)
        is_s = c.m("MULTIPLY", c.m("SUBTRACT", 1.0, is_g), c.m("LESS_THAN", r_r, c.m("ADD", p_g, p_s)))
        roof_raw = c.m("ADD", is_g, c.m("MULTIPLY", is_s, 2.0))
        roof_id = c.m("MULTIPLY", roof_raw, c.m("SUBTRACT", 1.0, is_C), "屋根 0平/1切妻/2段違い")

    sx = 1.0
    if merged:
        c = _Ctx(ng, -880, -4800, f3)
        sx = c.m("ADD", 1.0, c.m("MULTIPLY", merged, MERGE_SX - 1.0), "横の倍率")
        # 合体した棟は2区画の真ん中へ寄せる
        offv = _new_node(ng, "ShaderNodeCombineXYZ", "半区画ずらす", (-200, -4800), f3)
        _link(ng, _math(ng, "MULTIPLY", merged, cell * 0.5, None, (-370, -4800), f3), "Value", offv, "X")
        sp_m = _new_node(ng, "GeometryNodeSetPosition", "合体した棟を寄せる", (400, 300))
        _link(ng, bpts[0], bpts[1], sp_m, "Geometry")
        _link(ng, offv, "Vector", sp_m, "Offset")
        bpts = (sp_m, "Geometry")

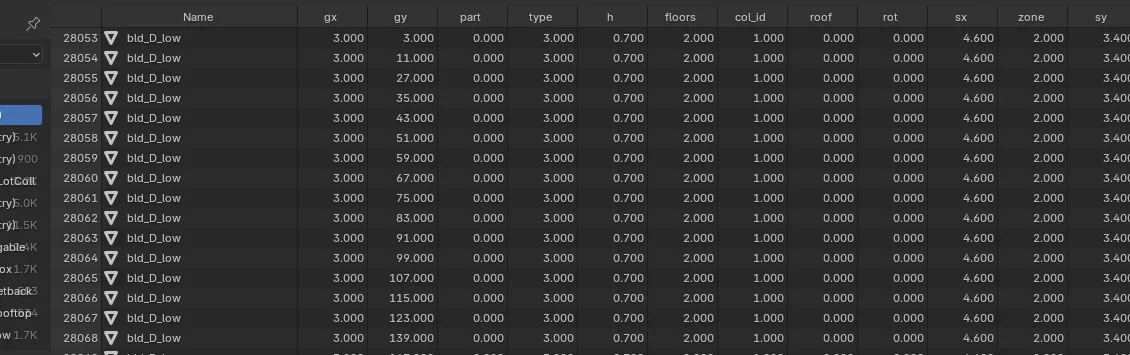

    # 建物ごとの値を点に記録（窓のマテリアルと、そっくり率の集計で使う）
    x0 = 600
    for nm, val in (("type", typ), ("h", height), ("floors", fl), ("col_id", col_id),
                    ("roof", roof_id), ("rot", rot_z), ("sx", sx)):
        bpts = _store(ng, bpts, nm, val, (x0, 300))
        x0 += 170

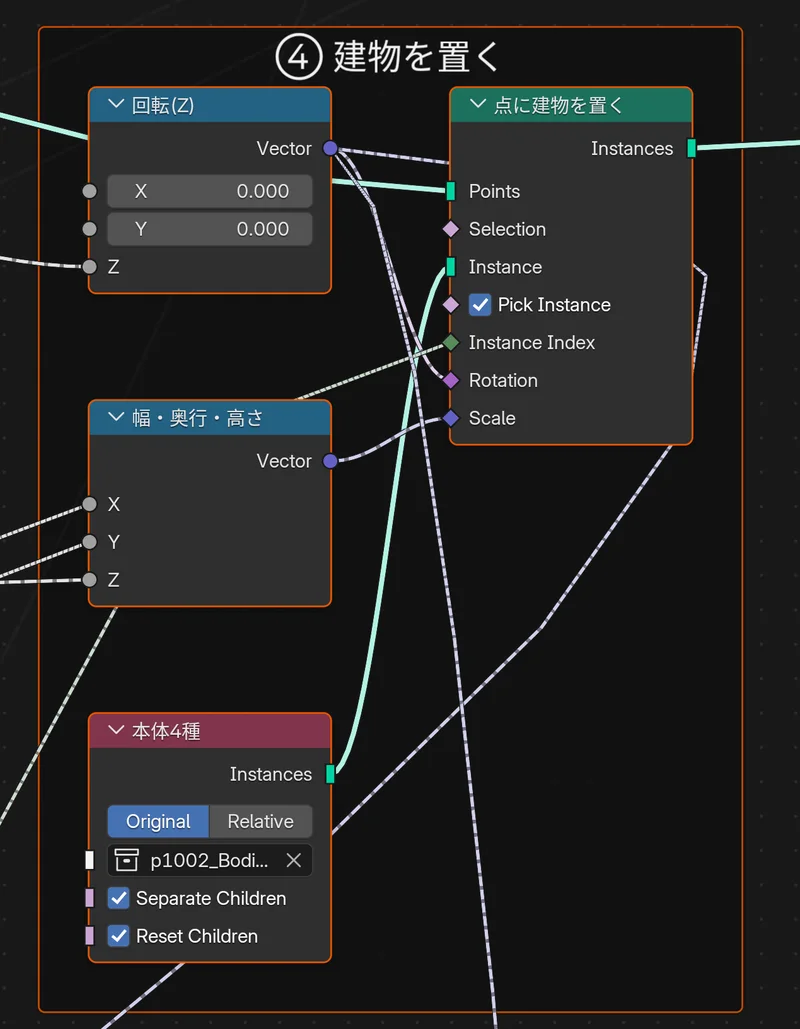

    # ---------------- ④ 建物を置く
    f4 = _frame(ng, "④ 建物を置く", (2000, 600))
    rot = _new_node(ng, "ShaderNodeCombineXYZ", "回転(Z)", (2050, 100), f4)
    if isinstance(rot_z, tuple):
        ng.links.new(_sock(rot_z[0], rot_z[1], "outputs"), _sock(rot, "Z"))
    scl = _new_node(ng, "ShaderNodeCombineXYZ", "幅・奥行・高さ", (2050, -100), f4)
    _sock(scl, "Y").default_value = 1.0
    if isinstance(sx, tuple):
        ng.links.new(_sock(sx[0], sx[1], "outputs"), _sock(scl, "X"))
    else:
        _sock(scl, "X").default_value = 1.0
    ng.links.new(_sock(height[0], height[1], "outputs"), _sock(scl, "Z"))

    if approach == "baked":
        bcoll = build_baked_collection(mats, baked_n, cell)
        r_b = _rand(ng, cid, 7, (2050, -300), f4, "型の乱数")
        bidx = _math(ng, "FLOOR", _v(_math(ng, "MULTIPLY", r_b, float(baked_n), None, (2220, -300), f4)),
                     None, f"型番号 0〜{baked_n - 1}", (2390, -300), f4)
        ci = _new_node(ng, "GeometryNodeCollectionInfo", f"型{baked_n}種", (2050, 400), f4)
        _sock(ci, "Collection").default_value = bcoll
        _sock(ci, "Separate Children").default_value = True
        _sock(ci, "Reset Children").default_value = True
        pick = (bidx, "Value")
    else:
        bcoll = build_body_collection(mats, cell, orient=orient)
        ci = _new_node(ng, "GeometryNodeCollectionInfo", "本体4種", (2050, 400), f4)
        _sock(ci, "Collection").default_value = bcoll
        _sock(ci, "Separate Children").default_value = True
        _sock(ci, "Reset Children").default_value = True
        pick = typ

    iop = _new_node(ng, "GeometryNodeInstanceOnPoints", "点に建物を置く", (2600, 300), f4)
    _link(ng, bpts[0], bpts[1], iop, "Points")
    _link(ng, ci, "Instances", iop, "Instance")
    _sock(iop, "Pick Instance").default_value = True
    ng.links.new(_sock(pick[0], pick[1], "outputs"), _sock(iop, "Instance Index"))
    _link(ng, rot, "Vector", iop, "Rotation")
    _link(ng, scl, "Vector", iop, "Scale")
    parts = [(iop, "Instances")]

    # ---------------- ⑤ 屋根を載せる（部品方式）
    if roofs and approach == "parts":
        f5 = _frame(ng, "⑤ 屋根の部品を載せる（平は何も置かない）", (2000, -900))
        rcoll = build_roof_collection(mats, cell)
        rci = _new_node(ng, "GeometryNodeCollectionInfo", "屋根2種", (2050, -1000), f5)
        _sock(rci, "Collection").default_value = rcoll
        _sock(rci, "Separate Children").default_value = True
        _sock(rci, "Reset Children").default_value = True
        up = _new_node(ng, "ShaderNodeCombineXYZ", "屋上の高さ", (2050, -1200), f5)
        ng.links.new(_sock(height[0], height[1], "outputs"), _sock(up, "Z"))
        sp_r = _new_node(ng, "GeometryNodeSetPosition", "屋上へ持ち上げる", (2250, -1000), f5)
        _link(ng, bpts[0], bpts[1], sp_r, "Geometry")
        _link(ng, up, "Vector", sp_r, "Offset")
        # 屋上の広さ：A=1 / B=0.69（上の段） / C=1 / D=1.15
        is_B = _math(ng, "COMPARE", typ, 1.0, None, (2050, -1400), f5)
        is_B.inputs[2].default_value = 0.1
        c = _Ctx(ng, 2220, -1400, f5)
        tf = c.m("ADD", c.m("ADD", 1.0, c.m("MULTIPLY", _v(is_B), -0.31)), c.m("MULTIPLY", is_D, 0.15), "屋上の広さ")
        c = _Ctx(ng, 2050, -1560, f5)
        is_gab = c.m("COMPARE", roof_id, 1.0)
        c.ng.nodes[-1].inputs[2].default_value = 0.1
        rz = c.m("ADD", c.m("MULTIPLY", is_gab, GABLE_H - 2 * FLOOR_H), 2 * FLOOR_H, "屋根の高さ")
        rscl = _new_node(ng, "ShaderNodeCombineXYZ", "屋根の倍率", (2900, -1400), f5)
        _link(ng, _math(ng, "MULTIPLY", tf, sx if isinstance(sx, tuple) else 1.0, None, (2730, -1300), f5),
              "Value", rscl, "X")
        ng.links.new(_sock(tf[0], tf[1], "outputs"), _sock(rscl, "Y"))
        ng.links.new(_sock(rz[0], rz[1], "outputs"), _sock(rscl, "Z"))
        has_roof = _math(ng, "GREATER_THAN", roof_id, 0.5, None, (2730, -1100), f5)
        ridx = _math(ng, "SUBTRACT", roof_id, 1.0, None, (2730, -1200), f5)
        iop_r = _new_node(ng, "GeometryNodeInstanceOnPoints", "屋根を置く", (3100, -1000), f5)
        _link(ng, sp_r, "Geometry", iop_r, "Points")
        _link(ng, has_roof, "Value", iop_r, "Selection")
        _link(ng, rci, "Instances", iop_r, "Instance")
        _sock(iop_r, "Pick Instance").default_value = True
        _link(ng, ridx, "Value", iop_r, "Instance Index")
        _link(ng, rot, "Vector", iop_r, "Rotation")
        _link(ng, rscl, "Vector", iop_r, "Scale")
        rgeo = _store(ng, (iop_r, "Instances"), "floors", 2.0, (3300, -1000), f5, domain="INSTANCE")
        rgeo = _store(ng, rgeo, "part", 1.0, (3470, -1000), f5, domain="INSTANCE")
        parts.append(rgeo)

    # ---------------- ⑥ 道路（p973と同じ：アスファルト＋中央線、交差点には線を引かない）
    f6 = _frame(ng, "⑥ 道路", (-1300, 1600))
    not_road = _math(ng, "SUBTRACT", 1.0, is_road, "道路以外", (-1250, 1500), f6)
    del_r = _new_node(ng, "GeometryNodeDeleteGeometry", "道路の点だけ残す", (-1080, 1500), f6)
    del_r.domain = "POINT"
    _link(ng, pts[0], pts[1], del_r, "Geometry")
    _link(ng, not_road, "Value", del_r, "Selection")
    tile = _new_node(ng, "GeometryNodeMeshGrid", "路面タイル", (-1080, 1300), f6)
    _sock(tile, "Size X").default_value = cell
    _sock(tile, "Size Y").default_value = cell
    _sock(tile, "Vertices X").default_value = 2
    _sock(tile, "Vertices Y").default_value = 2
    tile_tr = _new_node(ng, "GeometryNodeTransform", "わずかに浮かす", (-910, 1300), f6)
    _link(ng, tile, "Mesh", tile_tr, "Geometry")
    _sock(tile_tr, "Translation").default_value = (0.0, 0.0, 0.04)   # 起伏の段差で地面が透けないよう少し高め
    tile_mat = _new_node(ng, "GeometryNodeSetMaterial", "アスファルト", (-740, 1300), f6)
    _link(ng, tile_tr, "Geometry", tile_mat, "Geometry")
    _sock(tile_mat, "Material").default_value = mats["Road"]
    iop_t = _new_node(ng, "GeometryNodeInstanceOnPoints", "路面を敷く", (-570, 1500), f6)
    _link(ng, del_r, "Geometry", iop_t, "Points")
    _link(ng, tile_mat, "Geometry", iop_t, "Instance")

    # 中央線は2区画幅の道路の「1区画目」にだけ置き、半区画ずらして2区画の境目に引く。
    # ★p973は区画ごとに置いたので1本の道路に線が2本あり、さらに道路の点だけを残した後で
    #   点の通し番号（Index）から縦横を判定していたため、向きと交差点の判定がずれていた
    c = _Ctx(ng, -1250, 1000, f6)
    v_ok = c.m("MULTIPLY", c.m("MULTIPLY", is_col, c.m("LESS_THAN", bx, 0.5)), c.m("SUBTRACT", 1.0, is_row),
               "縦の道路の1区画目")
    c = _Ctx(ng, -1250, 900, f6)
    h_ok = c.m("MULTIPLY", c.m("MULTIPLY", is_row, c.m("LESS_THAN", by, 0.5)), c.m("SUBTRACT", 1.0, is_col),
               "横の道路の1区画目")
    no_line = _math(ng, "LESS_THAN", _v(_math(ng, "ADD", v_ok, h_ok, None, (-400, 950), f6)), 0.5,
                    "線を置かない", (-230, 950), f6)
    del_l0 = _new_node(ng, "GeometryNodeDeleteGeometry", "線を置く点だけ残す", (-60, 1000), f6)
    del_l0.domain = "POINT"
    _link(ng, del_r, "Geometry", del_l0, "Geometry")
    _link(ng, no_line, "Value", del_l0, "Selection")
    l_off = _new_node(ng, "ShaderNodeCombineXYZ", "半区画ずらす", (-60, 800), f6)
    _link(ng, _math(ng, "MULTIPLY", is_col, cell * 0.5, None, (-230, 800), f6), "Value", l_off, "X")
    _link(ng, _math(ng, "MULTIPLY", is_row, cell * 0.5, None, (-230, 700), f6), "Value", l_off, "Y")
    del_l = _new_node(ng, "GeometryNodeSetPosition", "道路の中心へ", (110, 1000), f6)
    _link(ng, del_l0, "Geometry", del_l, "Geometry")
    _link(ng, l_off, "Vector", del_l, "Offset")
    bar = _new_node(ng, "GeometryNodeMeshGrid", "中央線の板", (-1080, 800), f6)
    _sock(bar, "Size X").default_value = cell * 0.7
    _sock(bar, "Size Y").default_value = cell * 0.06
    _sock(bar, "Vertices X").default_value = 2
    _sock(bar, "Vertices Y").default_value = 2
    bar_tr = _new_node(ng, "GeometryNodeTransform", "路面より少し上", (-910, 800), f6)
    _link(ng, bar, "Mesh", bar_tr, "Geometry")
    _sock(bar_tr, "Translation").default_value = (0.0, 0.0, 0.07)
    bar_mat = _new_node(ng, "GeometryNodeSetMaterial", "白線", (-740, 800), f6)
    _link(ng, bar_tr, "Geometry", bar_mat, "Geometry")
    _sock(bar_mat, "Material").default_value = mats["Line"]
    rot90 = _math(ng, "MULTIPLY", is_col, math.pi / 2.0, "縦道路は90度", (-740, 1000), f6)
    rotv = _new_node(ng, "ShaderNodeCombineXYZ", None, (-570, 1000), f6)
    _link(ng, rot90, "Value", rotv, "Z")
    iop_l = _new_node(ng, "GeometryNodeInstanceOnPoints", "中央線を置く", (-400, 1000), f6)
    _link(ng, del_l, "Geometry", iop_l, "Points")
    _link(ng, bar_mat, "Geometry", iop_l, "Instance")
    _link(ng, rotv, "Vector", iop_l, "Rotation")
    for src in ((iop_t, "Instances"), (iop_l, "Instances")):
        parts.append(_store(ng, src, "part", 2.0, (-230, 1500 if src[0] is iop_t else 1000), f6,
                            domain="INSTANCE"))

    # ---------------- 地面
    gmat = _new_node(ng, "GeometryNodeSetMaterial", "地面のマテリアル", (2600, -2200))
    _link(ng, ground[0], ground[1], gmat, "Geometry")
    _sock(gmat, "Material").default_value = mats["Ground"]
    parts.append((gmat, "Geometry"))

    join = _new_node(ng, "GeometryNodeJoinGeometry", "建物＋屋根＋道路＋地面", (4600, 0))
    for src in parts:
        _link(ng, src[0], src[1], join, "Geometry")
    city = (join, "Geometry")

    if realize:
        rzn = _new_node(ng, "GeometryNodeRealizeInstances", "実体化", (4900, 0))
        _link(ng, city[0], city[1], rzn, "Geometry")
        city = (rzn, "Geometry")

    _link(ng, city[0], city[1], g_out, "Geometry")
    tidy_layout(ng)
    return ng



def ref_faces(r, depth=0):
    """分身が指している中身の面の数。
    ★Collection Info で丸ごと置いた分身（v8 の敷地）は、中身が GeometrySet や Collection として返り、
      素朴に .polygons を見ると 0 面になる（Windows での検証で判明・2026-10-07）。中までたどって数える"""
    if depth > 8 or r is None:
        return 0
    if isinstance(r, bpy.types.Object):
        if r.type == "MESH":
            return len(r.data.polygons)
        if r.instance_type == "COLLECTION" and r.instance_collection:
            return ref_faces(r.instance_collection, depth + 1)
        return 0
    if isinstance(r, bpy.types.Collection):
        return sum(ref_faces(o, depth + 1) for o in r.all_objects)
    # GeometrySet
    n = len(r.mesh.polygons) if getattr(r, "mesh", None) else 0
    pc = r.instances_pointcloud() if hasattr(r, "instances_pointcloud") else None
    if pc:
        idx = [0] * len(pc.points)
        pc.attributes[".reference_index"].data.foreach_get("value", idx)
        sub = [ref_faces(x, depth + 1) for x in r.instance_references()]
        n += sum(sub[i] for i in idx if i < len(sub))
    return n

# ---------------------------------------------------------------- シーン組み立て

def set_camera(cam, size, mode="wide", ground_z=None):
    """カメラを決まった位置に置く。段階間で必ず同じ画角になるよう注視点から逆算する。
      wide   … 街全体の俯瞰
      close  … 中心寄りの区画を斜め上から
      detail … 建物数棟に寄る（屋根・窓・色が読める）
      street … 道路の上、人の目線より少し高いところから（ground_z が要る）"""
    from mathutils import Vector
    if mode == "street":
        # 中心から1ブロック外れた縦の道路の上に立ち、道の先を見る
        x = (8 * round(size / 2.0 / 16.0 / 2.0) + 0.5) * 2.0 - size * 0.5
        y = -size * 0.18
        z = (ground_z if ground_z is not None else 0.0) + 0.6
        cam.data.lens = 24
        cam.location = Vector((x, y, z))
        target = Vector((x, y + 30.0, z + 3.5))
        cam.rotation_euler = (target - cam.location).to_track_quat("-Z", "Y").to_euler()
        return cam
    if mode == "wide":
        target = Vector((0.0, 0.0, size * 0.05))
        elev, azim, dist, lens = math.radians(50.0), math.radians(45.0), size * 1.45, 40
    elif mode == "detail":
        target = Vector((size * 0.10, size * 0.10, size * 0.02))
        elev, azim, dist, lens = math.radians(28.0), math.radians(38.0), size * 0.22, 50
    else:
        target = Vector((size * 0.12, size * 0.12, size * 0.03))
        elev, azim, dist, lens = math.radians(42.0), math.radians(42.0), size * 0.40, 40
    cam.data.lens = lens
    cam.location = target + Vector((
        -math.cos(elev) * math.sin(azim) * dist,
        -math.cos(elev) * math.cos(azim) * dist,
        math.sin(elev) * dist,
    ))
    cam.rotation_euler = (target - cam.location).to_track_quat("-Z", "Y").to_euler()
    return cam


def set_lighting(bright=False):
    """寄りのカットだけ明るくする（俯瞰向けの暗い設定だと、寄るとシルエットになる）"""
    sun = bpy.data.objects.get("Sun")
    if sun:
        sun.data.energy = 6.0 if bright else 3.5
    world = bpy.context.scene.world
    bg = world.node_tree.nodes.get("Background") if world and world.use_nodes else None
    if bg:
        bg.inputs[0].default_value = ((0.30, 0.36, 0.45, 1.0) if bright
                                      else (0.10, 0.12, 0.16, 1.0))


def setup_scene(grid_n=81, cell=2.0):
    """カメラ・ライト・空を用意する。段階間で見た目の条件を揃えるため毎回同じ値にする"""
    for ob in list(bpy.data.objects):
        bpy.data.objects.remove(ob, do_unlink=True)
    sc = bpy.context.scene
    sc.render.engine = "BLENDER_EEVEE"
    sc.render.resolution_x, sc.render.resolution_y = 1280, 720
    sc.render.resolution_percentage = 100
    size = cell * (grid_n - 1)

    me = bpy.data.meshes.new("CityMesh")
    city = bpy.data.objects.new("City", me)
    bpy.context.collection.objects.link(city)

    cam_data = bpy.data.cameras.new("Cam")
    cam_data.clip_start = 0.05
    cam_data.clip_end = max(size * 10.0, 1000.0)   # ★既定の100mだと街が外に出て真っ暗
    cam = bpy.data.objects.new("Cam", cam_data)
    bpy.context.collection.objects.link(cam)
    set_camera(cam, size, "wide")
    sc.camera = cam

    sun_data = bpy.data.lights.new("Sun", type="SUN")
    sun_data.energy = 3.5
    sun_data.angle = math.radians(2.0)
    sun = bpy.data.objects.new("Sun", sun_data)
    sun.rotation_euler = (math.radians(50), 0, math.radians(35))
    bpy.context.collection.objects.link(sun)

    world = bpy.data.worlds.get("World") or bpy.data.worlds.new("World")
    world.use_nodes = True
    bg = world.node_tree.nodes.get("Background")
    if bg:
        bg.inputs[0].default_value = (0.10, 0.12, 0.16, 1.0)
        bg.inputs[1].default_value = 1.0
    sc.world = world
    return city, cam


def apply_tree(city_obj, ng):
    for m in list(city_obj.modifiers):
        city_obj.modifiers.remove(m)
    mod = city_obj.modifiers.new("City", "NODES")
    mod.node_group = ng
    return mod


# ---------------------------------------------------------------- 段階の定義

STAGES = {
    # 実験1・2：要素を1つずつ足す
    "v0_p973":    dict(),
    "v1_orient":  dict(orient=True, color=True),
    "v2_floors":  dict(orient=True, color=True, floors=True),
    "v3_roofs":   dict(orient=True, color=True, floors=True, roofs=True),
    "v4_windows": dict(orient=True, color=True, floors=True, roofs=True, windows=True),
    "v5_merge":   dict(orient=True, color=True, floors=True, roofs=True, windows=True, merge=True),
    # 実験3：型の持ち方（見た目は v5 相当の条件で、置き方だけ変える）
    "e3_parts":         dict(orient=True, color=True, floors=True, roofs=True, windows=True, merge=True),
    "e3_parts_realize": dict(orient=True, color=True, floors=True, roofs=True, windows=True, merge=True,
                             realize=True),
    "e3_baked4":   dict(orient=True, color=True, floors=True, windows=True, merge=True,
                        approach="baked", baked_n=4),
    "e3_baked16":  dict(orient=True, color=True, floors=True, windows=True, merge=True,
                        approach="baked", baked_n=16),
    "e3_baked64":  dict(orient=True, color=True, floors=True, windows=True, merge=True,
                        approach="baked", baked_n=64),
    # おまけ：p973と同じ「点の通し番号」で乱数を作ると、合体で街中が入れ替わる
    "x_index_v4": dict(orient=True, color=True, floors=True, roofs=True, windows=True, seed_by="index"),
    "x_index_v5": dict(orient=True, color=True, floors=True, roofs=True, windows=True, merge=True,
                       seed_by="index"),
}


# v6〜v8：用途地域（住宅街・商店街・工業地帯）。v5 の街を組み立てたあと、
# 値を決めている数式ノードの出口を差し替える（zones_v6/v7/v8.py の build）
ZONE_STAGES = {

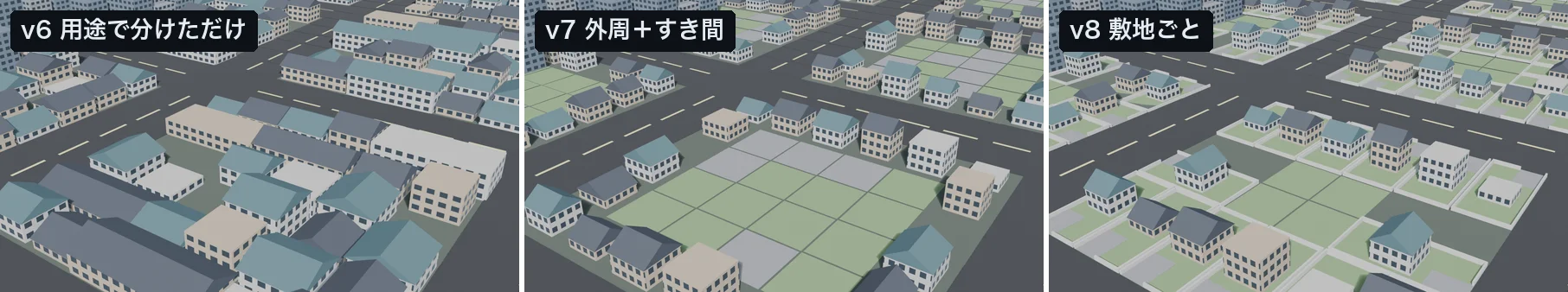

    "v6_zones": "zones_v6",   # 地区ごとに用途を決め、階数・種類・屋根・色・横幅を差し替える

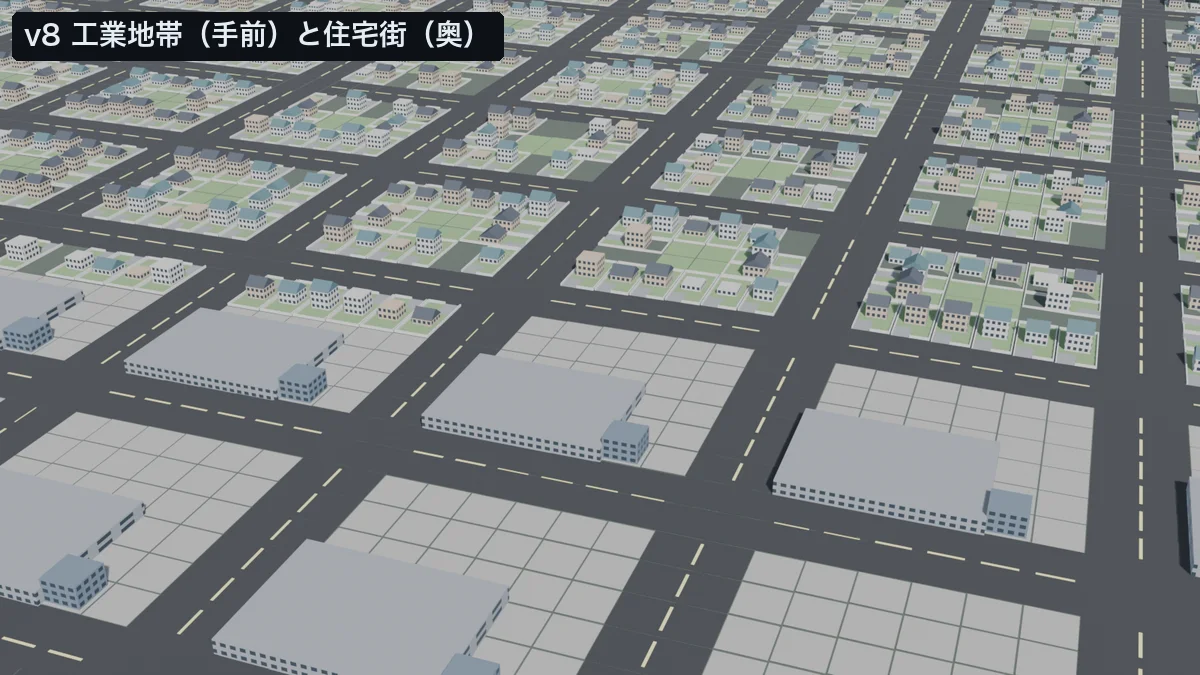

    "v7_zones": "zones_v7",   # 住宅は街区の外周だけ＋すき間、工業は1街区1敷地

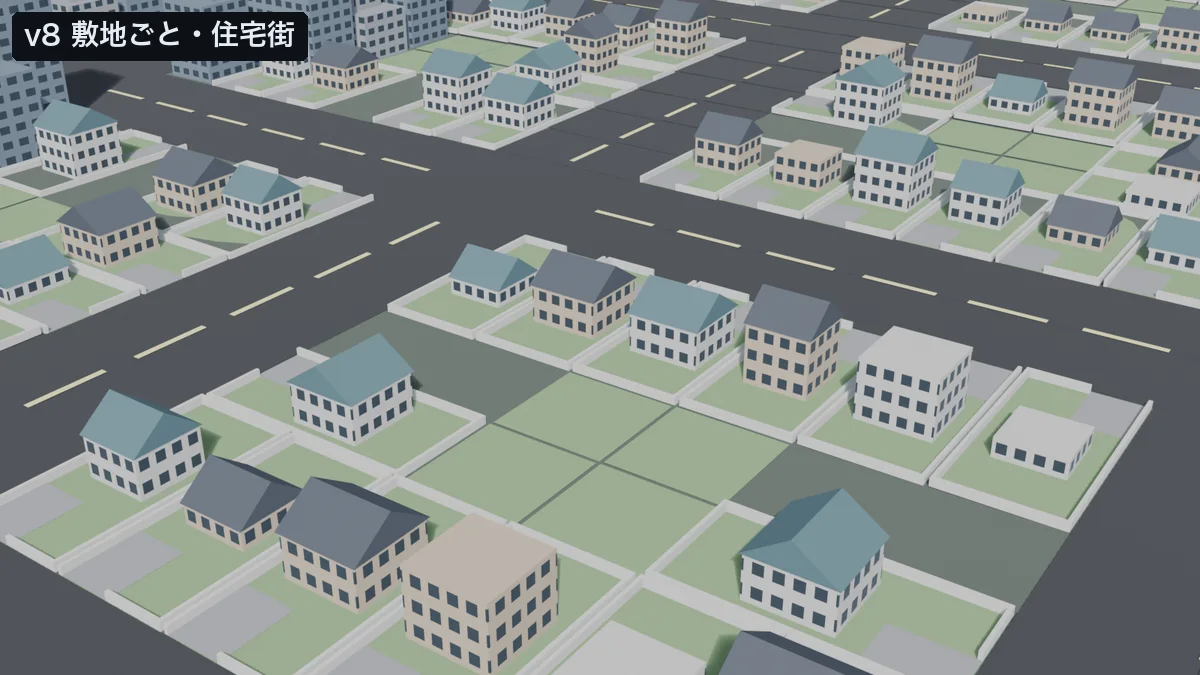

    "v8_lots":  "zones_v8",   # 住宅を敷地ごと（庭・駐車場・柵を1部品）に
}


# 最初に使っていた起伏（p973 と同じ細かさで、高さだけ半分）。道路が波打つ比較用
TERRAIN_OLD = dict(terrain_amp=3.0, terrain_scale=1.6, terrain_detail=2.0)


def build_stage(stage, grid_n=81, cell=2.0, **over):
    """段階の名前から街を組み立てる。over で build_city_tree の引数を上書きできる（例: **TERRAIN_OLD）"""
    if stage in ZONE_STAGES:
        import importlib
        mod = importlib.import_module(ZONE_STAGES[stage])
        mod.GRID, mod.CELL = grid_n, cell
        city, ng = build_stage("v5_merge", grid_n=grid_n, cell=cell, **over)
        mod.build(ng)
        tidy_layout(ng)
        return city, ng
    opts = dict(STAGES[stage])
    opts.update(over)
    city, cam = setup_scene(grid_n=grid_n, cell=cell)
    ng = build_city_tree(grid_n=grid_n, cell=cell, **opts)
    apply_tree(city, ng)
    return city, ng

# -*- coding: utf-8 -*-
"""p1002 追加: 用途地域（住宅街・商店街・工業地帯）で区画を作り分ける。

★city_var.py の作りは変えずに、組み上がったツリーへ足す。
  v5_merge の街を組み立てたあと、**できあがったノードツリーに枠を1つ足して、
  値を決めている数式ノードの出口だけを差し替える**。

  blender.exe -b --factory-startup --python zones_v6.py -- --grid 161 --out out/extra_zones --render

やっていること:

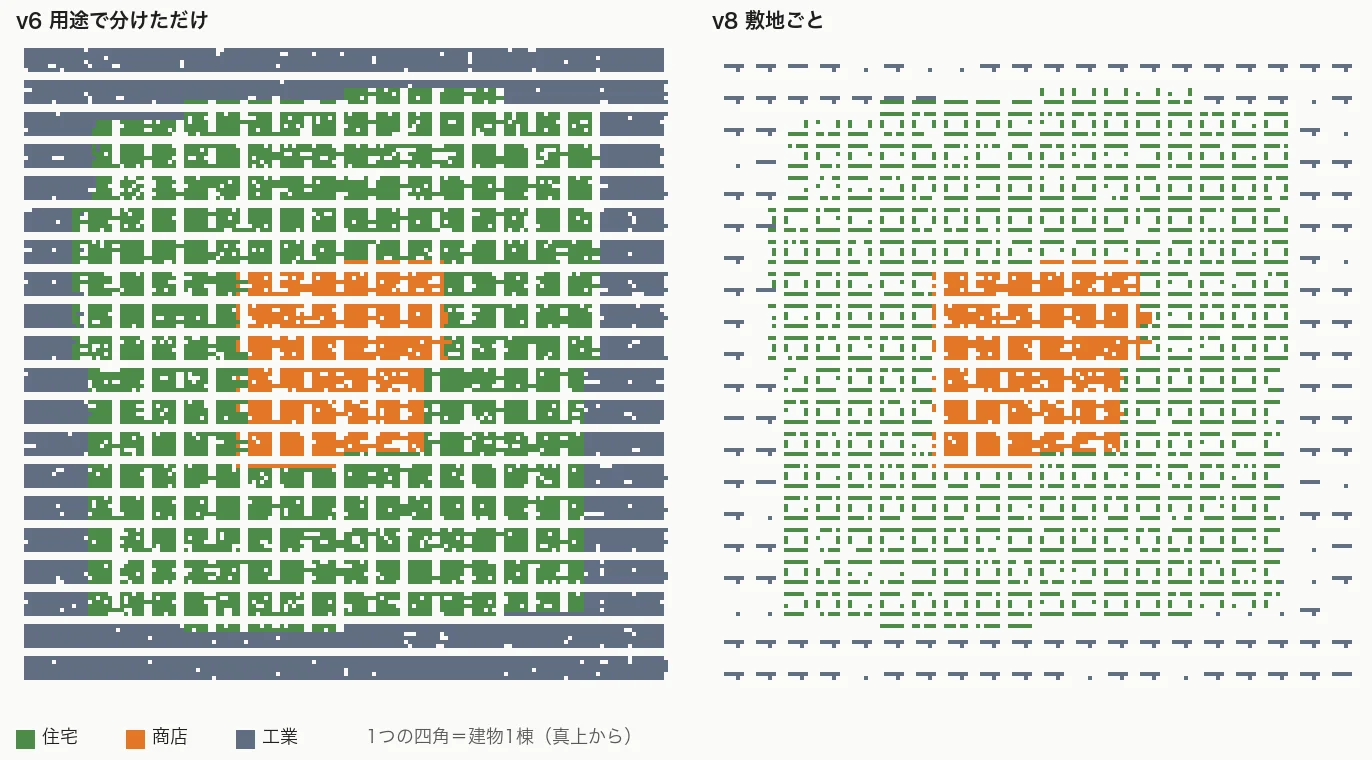

  ① 地区の番号（40区画＝80m四方ごと）から用途を決める … 0=住宅 / 1=商店 / 2=工業
  ② 階数・種類・屋根・色・横幅を、用途ごとの値に差し替える
  ③ 用途を属性 zone として点に記録する（スプレッドシートや集計で見える）
"""
import bpy
import json
import math
import os
import sys
from collections import Counter

sys.path.insert(0, os.path.dirname(os.path.abspath(__file__)))
import city_var as cv  # noqa: E402

# ※2026-10-07 単体実行に加えて、city_var.build_stage("v6_…") から build(ng) を呼べるようにした。
#   起伏をなだらかにする処理（smooth_terrain）は city_var.py の既定に移したので、ここでは呼ばない。

A = sys.argv[sys.argv.index("--") + 1:] if "--" in sys.argv else []


def arg(n, d):
    return A[A.index("--" + n) + 1] if "--" + n in A else d


GRID = int(arg("grid", 161))
CELL = float(arg("cell", 2.0))
OUT = arg("out", "out/extra_zones")
DISTRICT = float(arg("district", 40))     # 何区画ごとに用途を変えるか（40区画＝80m）

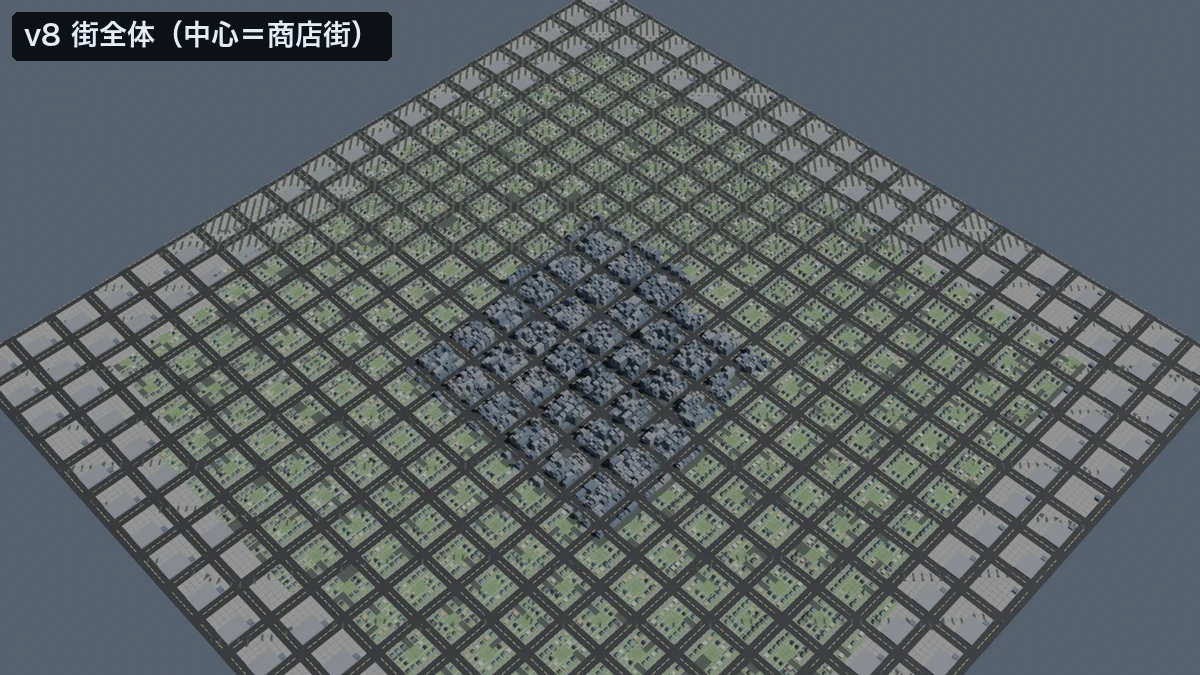

LAYOUT = arg("layout", "ring")            # "ring"=中心が商店街・外縁が工業 / "random"=地区ごとのくじ引き
RENDER = "--render" in A
SAVE = "--save" in A
ZONE_NAMES = {0: "住宅", 1: "商店", 2: "工業"}


def log(*a):
    print("[zones]", *a, flush=True)


# ---------------------------------------------------------------- ノードの差し替え

def find(ng, label):
    n = next((x for x in ng.nodes if x.label == label), None)
    if n is None:
        raise RuntimeError(f"ラベル『{label}』のノードが見つからない")
    return n


def consumers(ng, node, sock="Value"):
    """このノードの出力を使っている先を控えておく（差し替え前に取る）。

    ★`link.to_node is node` は使えない。Blenderは参照のたびに別のPythonオブジェクトを返すので
      `is` が必ず偽になり、接続が1つも見つからないまま静かに通ってしまう。名前で突き合わせる。
    """
    return [(lk.to_node.name, lk.to_socket.identifier) for lk in ng.links
            if lk.from_node.name == node.name and lk.from_socket.name == sock]


def rewire(ng, targets, new_out):
    for node_name, sock_id in targets:
        to_node = ng.nodes[node_name]
        to_sock = next(s for s in to_node.inputs if s.identifier == sock_id)
        ng.links.new(cv._sock(new_out[0], new_out[1], "outputs"), to_sock)


def pick3(c, is1, is2, v0, v1, v2, label=None):
    """用途で3つの値を選ぶ: v0 + (用途1)*(v1-v0) + (用途2)*(v2-v0)"""
    t = c.m("ADD", v0, c.m("MULTIPLY", is1, c.m("SUBTRACT", v1, v0)))
    return c.m("ADD", t, c.m("MULTIPLY", is2, c.m("SUBTRACT", v2, v0)), label)


def add_zones(ng):
    f = cv._frame(ng, "⑥ 用途地域（0住宅 / 1商店 / 2工業）", (-2300, -5200))

    gx = cv._named(ng, "gx", (-2250, -5300), f)
    gy = cv._named(ng, "gy", (-2250, -5460), f)
    c = cv._Ctx(ng, -2060, -5300, f)
    dx = c.m("FLOOR", c.m("DIVIDE", gx, DISTRICT), None, "地区の列")
    c = cv._Ctx(ng, -2060, -5460, f)
    dy = c.m("FLOOR", c.m("DIVIDE", gy, DISTRICT), None, "地区の行")
    c = cv._Ctx(ng, -1720, -5380, f)
    did = c.m("ADD", c.m("MULTIPLY", dy, 100.0), dx, "地区の番号")
    r_z = cv._rand(ng, did, 11, (-1380, -5380), f, "用途の乱数")

    # 既にある値（乱数・近さ）を再利用する
    r_h = cv._v(find(ng, "高さの乱数"))
    r_t = cv._v(find(ng, "種類の乱数"))
    r_c = cv._v(find(ng, "色の乱数"))
    r_r = cv._v(find(ng, "屋根の乱数"))
    near = cv._v(find(ng, "近さ z"))

    c = cv._Ctx(ng, -1210, -5380, f)
    if LAYOUT == "random":
        # 地区ごとに用途をくじ引きする（まだら模様になる）
        zone = c.m("FLOOR", c.m("MULTIPLY", r_z, 3.0), None, "用途 0住宅/1商店/2工業")
        is1 = c.m("COMPARE", zone, 1.0, "商店か")
        is1[0].inputs[2].default_value = 0.1
        is2 = c.m("COMPARE", zone, 2.0, "工業か")
        is2[0].inputs[2].default_value = 0.1
    else:
        # ★現実の街に寄せた並び: 中心＝商店街 / その外側＝住宅街 / 外縁＝工業地帯。
        #   中心からの「四角い距離」u（0=中心〜1=端）で分ける。街が四角いので、円より面積配分が素直。
        #   境目が定規で引いたようにならないよう、地区ごとの乱数で±0.06ゆらす
        half_n = (GRID - 1) * 0.5
        cx = c.m("ABSOLUTE", c.m("SUBTRACT", gx, half_n))
        c2 = cv._Ctx(ng, -1210, -5540, f)
        cy = c2.m("ABSOLUTE", c2.m("SUBTRACT", gy, half_n))
        c3 = cv._Ctx(ng, -870, -5460, f)
        u = c3.m("DIVIDE", c3.m("MAXIMUM", cx, cy), half_n, "中心からの四角い距離 0〜1")
        u2 = c3.m("ADD", u, c3.m("MULTIPLY", c3.m("SUBTRACT", r_z, 0.5), 0.12), "ゆらぎ込み")
        c4 = cv._Ctx(ng, -360, -5380, f)
        is1 = c4.m("LESS_THAN", u2, 0.30, "商店か（中心側）")
        c5 = cv._Ctx(ng, -360, -5540, f)
        is2 = c5.m("MULTIPLY", c5.m("GREATER_THAN", u2, 0.82), c5.m("SUBTRACT", 1.0, is1), "工業か（外縁）")
        c = cv._Ctx(ng, -360, -5700, f)
        c6 = cv._Ctx(ng, -40, -5460, f)
        zone = c6.m("ADD", is1, c6.m("MULTIPLY", is2, 2.0), "用途 0住宅/1商店/2工業")

    # ---- ① 階数：住宅1〜3階 / 商店3階〜（中心ほど高い） / 工業1〜2階
    fl_node = find(ng, "階数（D型は3階まで）")
    fl_used = consumers(ng, fl_node)
    c = cv._Ctx(ng, -1210, -5620, f)
    fl_home = c.m("ADD", 1.0, c.m("FLOOR", c.m("MULTIPLY", r_h, 3.0)), "住宅 1〜3階")
    c = cv._Ctx(ng, -1210, -5820, f)
    fl_shop = c.m("ADD", 3.0, c.m("FLOOR", c.m("MULTIPLY", r_h, c.m("ADD", 3.0, c.m("MULTIPLY", near, 12.0)))),
                  "商店 3階〜（中心ほど高い）")
    c = cv._Ctx(ng, -1210, -6020, f)
    fl_ind = c.m("ADD", 1.0, c.m("FLOOR", c.m("MULTIPLY", r_h, 2.0)), "工業 1〜2階")
    c = cv._Ctx(ng, -400, -5720, f)
    fl_new = pick3(c, is1, is2, fl_home, fl_shop, fl_ind, "階数（用途ごと）")
    rewire(ng, fl_used, fl_new)

    # ---- ② 種類：住宅=箱/低層ワイド、商店=セットバック/屋上設備、工業=低層ワイド
    typ_node = find(ng, "種類 0〜3")
    typ_used = consumers(ng, typ_node)
    c = cv._Ctx(ng, -1210, -6220, f)
    t_home = c.m("MULTIPLY", c.m("FLOOR", c.m("MULTIPLY", r_t, 2.0)), 3.0, "住宅 0箱/3低層ワイド")
    c = cv._Ctx(ng, -1210, -6420, f)
    t_shop = c.m("ADD", 1.0, c.m("FLOOR", c.m("MULTIPLY", r_t, 2.0)), "商店 1セットバック/2屋上設備")
    c = cv._Ctx(ng, -400, -6320, f)
    t_new = pick3(c, is1, is2, t_home, t_shop, 3.0, "種類（用途ごと）")
    rewire(ng, typ_used, t_new)

    # ---- ③ 屋根：住宅は切妻が多い、商店・工業は平
    roof_node = find(ng, "屋根 0平/1切妻/2段違い")
    roof_used = consumers(ng, roof_node)
    is_C = cv._v(find(ng, "屋上設備型"))
    c = cv._Ctx(ng, -1210, -6620, f)
    r_home = c.m("LESS_THAN", r_r, 0.75, "住宅 切妻75%")
    c = cv._Ctx(ng, -400, -6620, f)
    roof_new = pick3(c, is1, is2, r_home, 0.0, 0.0)
    roof_new = c.m("MULTIPLY", roof_new, c.m("SUBTRACT", 1.0, is_C), "屋根（用途ごと）")
    rewire(ng, roof_used, roof_new)

    # ---- ④ 色：住宅=白っぽい/ベージュ、商店=青グレー/グレー、工業=グレー/こげ茶
    col_node = find(ng, "色の番号 0〜5")
    col_used = consumers(ng, col_node)
    c = cv._Ctx(ng, -1210, -6820, f)
    two = c.m("FLOOR", c.m("MULTIPLY", r_c, 2.0), None, "0か1")
    c = cv._Ctx(ng, -870, -6820, f)
    col_home = c.m("ADD", 2.0, two, "住宅 2白/3ベージュ")
    c = cv._Ctx(ng, -870, -6980, f)
    col_ind = c.m("ADD", 1.0, c.m("MULTIPLY", two, 4.0), "工業 1グレー/5こげ茶")
    c = cv._Ctx(ng, -400, -6900, f)
    col_new = pick3(c, is1, is2, col_home, two, col_ind, "色（用途ごと）")
    rewire(ng, col_used, col_new)

    # ---- ⑤ 横幅：工業だけ横に広い（倉庫・工場のイメージ）
    sx_node = next((x for x in ng.nodes if x.label == "横の倍率"), None)
    if sx_node is not None:
        sx_used = consumers(ng, sx_node)
        c = cv._Ctx(ng, -400, -7100, f)
        sx_new = c.m("MULTIPLY", cv._v(sx_node), c.m("ADD", 1.0, c.m("MULTIPLY", is2, 0.6)), "横の倍率（工業は広い）")
        rewire(ng, sx_used, sx_new)

    # ---- ⑥ 用途を点に記録する（建物を置く直前に差し込む）
    iop = find(ng, "点に建物を置く")
    src = next(lk for lk in ng.links if lk.to_node.name == iop.name and lk.to_socket.name == "Points")
    geo = (ng.nodes[src.from_node.name], src.from_socket.name)
    new_geo = cv._store(ng, geo, "zone", zone, (1800, 300))
    ng.links.new(cv._sock(new_geo[0], new_geo[1], "outputs"), cv._sock(iop, "Points"))
    return zone


# ---------------------------------------------------------------- 集計・撮影

def read_rows(city):
    dg = bpy.context.evaluated_depsgraph_get()
    dg.update()
    gs = city.evaluated_get(dg).evaluated_geometry()
    pc = gs.instances_pointcloud()
    if not pc:
        return []
    n = len(pc.points)
    cols = {}
    for name in ("gx", "gy", "part", "type", "h", "floors", "col_id", "roof", "sx", "zone"):
        a = pc.attributes.get(name)
        v = [0.0] * n
        if a is not None:
            a.data.foreach_get("value", v)
        cols[name] = v
    return [{k: cols[k][i] for k in cols} for i in range(n)]


def ground_z_at(x, y):
    dg = bpy.context.evaluated_depsgraph_get()
    hit, loc, *_ = bpy.context.scene.ray_cast(dg, (x, y, 500.0), (0.0, 0.0, -1.0))
    return loc.z if hit else 0.0


def render_views(outdir, views=("wide", "close", "street"), res=(1600, 900), samples=64):
    sc = bpy.context.scene
    sc.render.resolution_x, sc.render.resolution_y = res
    sc.render.image_settings.file_format = "PNG"
    try:
        sc.eevee.taa_render_samples = samples
    except Exception:
        pass
    shots = os.path.join(outdir, "shots")
    os.makedirs(shots, exist_ok=True)
    size = CELL * (GRID - 1)
    cam = sc.camera
    names = []
    for mode in views:
        gz = None
        if mode == "street":
            cv.set_camera(cam, size, "street", 0.0)
            gz = ground_z_at(cam.location.x, cam.location.y)
        cv.set_camera(cam, size, mode, gz)
        cv.set_lighting(mode in ("detail", "street"))
        sc.render.filepath = os.path.join(shots, f"v6_zones_n{GRID}_{mode}.png")
        bpy.ops.render.render(write_still=True)
        names.append(os.path.basename(sc.render.filepath))
        log("  shot", names[-1])
    cv.set_camera(cam, size, "wide")
    cv.set_lighting(False)
    return names


def main():
    here = os.path.dirname(os.path.abspath(__file__))
    outdir = OUT if os.path.isabs(OUT) else os.path.join(here, OUT)
    os.makedirs(outdir, exist_ok=True)

    city, ng = cv.build_stage("v5_merge", grid_n=GRID, cell=CELL)
    n_before = len(ng.nodes)
    add_zones(ng)
    log("ノード数", n_before, "→", len(ng.nodes))

    rows = [r for r in read_rows(city) if r["part"] < 0.5]
    rec = {"grid": GRID, "cell": CELL, "district_cells": DISTRICT,
           "blender": bpy.app.version_string, "buildings": len(rows), "zones": {}}
    for z, name in ZONE_NAMES.items():
        g = [r for r in rows if int(round(r["zone"])) == z]
        if not g:
            continue
        rec["zones"][name] = {
            "棟数": len(g),
            "割合": round(len(g) / len(rows), 3),
            "階数": {"最小": int(min(r["floors"] for r in g)), "最大": int(max(r["floors"] for r in g)),
                     "平均": round(sum(r["floors"] for r in g) / len(g), 2)},
            "種類": dict(Counter(int(r["type"]) for r in g)),
            "屋根": dict(Counter(int(r["roof"]) for r in g)),
            "色": dict(Counter(int(r["col_id"]) for r in g)),
            "合体した棟": sum(1 for r in g if r["sx"] > 1.5),
        }
        log(f"{name}: {len(g)}棟 平均{rec['zones'][name]['階数']['平均']}階 "
            f"種類{rec['zones'][name]['種類']} 屋根{rec['zones'][name]['屋根']}")

    if RENDER:
        rec["shots"] = render_views(outdir)
    if SAVE:
        bpy.ops.wm.save_as_mainfile(filepath=os.path.join(outdir, f"p1002_v6_zones_n{GRID}.blend"))

    with open(os.path.join(outdir, f"zones_n{GRID}.json"), "w", encoding="utf-8") as f:
        json.dump(rec, f, ensure_ascii=False, indent=2)
    with open(os.path.join(outdir, f"rows_v6_zones_n{GRID}.json"), "w", encoding="utf-8") as f:
        json.dump(rows, f)
    log("DONE", os.path.join(outdir, f"zones_n{GRID}.json"))


if __name__ == "__main__":   # run_stages / measure から部品として読み込むときは走らせない
    main()


def build(ng):
    """city_var.build_stage から呼ぶ入口（v7・v8 と名前をそろえる）"""
    return add_zones(ng)

# -*- coding: utf-8 -*-
"""p1002 追加その2: 用途地域をもっと自然な形にする（v7）。

★city_var.py の作りは変えずに、組み上がったツリーへ足す。
  v5_merge のノードツリーに枠を足し、値を決めている数式ノードの出口だけ差し替える。

  blender.exe -b --factory-startup --python zones_v7.py -- --grid 161 --out out/extra_zones2 --render

v6（zones_v6.py）との違い:
  住宅街 … 街区の**外周だけ**に家を建て、家は0.72倍に縮めて**家どうしのすき間**をつくる。
           街区の内側は**庭（緑）と駐車場（灰）**の敷地を敷く
  工業地帯 … 街区まるごとを1つの敷地にして、**生産棟（4区画×3区画の大きな建物）**と
           **オフィス棟（3〜4階）**を1つずつ建て、残りは**舗装したヤード**にする
  商店街 … v6のまま（街区いっぱいに建てる。合体もここだけ）
"""
import bpy
import json
import os
import sys
from collections import Counter

sys.path.insert(0, os.path.dirname(os.path.abspath(__file__)))
import city_var as cv  # noqa: E402

# ※2026-10-07 単体実行に加えて、city_var.build_stage("v7_…") から build(ng) を呼べるようにした。
#   起伏をなだらかにする処理（smooth_terrain）は city_var.py の既定に移したので、ここでは呼ばない。

A = sys.argv[sys.argv.index("--") + 1:] if "--" in sys.argv else []


def arg(n, d):
    return A[A.index("--" + n) + 1] if "--" + n in A else d


GRID = int(arg("grid", 161))
CELL = float(arg("cell", 2.0))
OUT = arg("out", "out/extra_zones2")
RENDER = "--render" in A
SAVE = "--save" in A
ROAD_EVERY, ROAD_W = 8, 2            # 原本の既定値（8区画ごとに2区画幅の道路）
HOME_SCALE = 0.72                    # 住宅の大きさ（1.0=区画いっぱい）。すき間が庭・駐車場になる
SHED_SX, SHED_SY = 4.6, 3.4          # 生産棟の大きさ（区画4×3ぶん）
ZONE_NAMES = {0: "住宅", 1: "商店", 2: "工業"}


def log(*a):
    print("[zones2]", *a, flush=True)


# ---------------------------------------------------------------- 差し替えの道具

def find(ng, label, required=True):
    n = next((x for x in ng.nodes if x.label == label), None)
    if n is None and required:
        raise RuntimeError(f"ラベル『{label}』のノードが見つからない")
    return n


def consumers(ng, node, sock="Value"):
    """★`link.to_node is node` は使えない（Blenderは参照のたびに別オブジェクトを返す）。名前で突き合わせる"""
    return [(lk.to_node.name, lk.to_socket.identifier) for lk in ng.links
            if lk.from_node.name == node.name and lk.from_socket.name == sock]


def rewire(ng, targets, new_out):
    for node_name, sock_id in targets:
        to_node = ng.nodes[node_name]
        to_sock = next(s for s in to_node.inputs if s.identifier == sock_id)
        ng.links.new(cv._sock(new_out[0], new_out[1], "outputs"), to_sock)


def link_to(ng, out, node, sock_name):
    ng.links.new(cv._sock(out[0], out[1], "outputs"), cv._sock(node, sock_name))


def eq(c, a, b, label=None):
    v = c.m("COMPARE", a, b, label)
    v[0].inputs[2].default_value = 0.1
    return v


def mat(name, rgb, rough=0.95):
    m = bpy.data.materials.get(name)
    if m is None:
        m = bpy.data.materials.new(name)
    m.use_nodes = True
    bsdf = m.node_tree.nodes.get("Principled BSDF")
    if bsdf:
        bsdf.inputs["Base Color"].default_value = rgb
        if "Roughness" in bsdf.inputs:
            bsdf.inputs["Roughness"].default_value = rough
    m.diffuse_color = rgb
    return m


def ground_patch(ng, pts_geo, keep, material, frame, loc, z=0.03):
    """区画に薄い板を敷く（道路の作り方と同じやり方）。keep が1の点にだけ敷く"""
    x, y = loc
    drop = cv._new_node(ng, "GeometryNodeDeleteGeometry", "敷く点だけ残す", (x, y), frame)
    drop.domain = "POINT"
    cv._link(ng, pts_geo[0], pts_geo[1], drop, "Geometry")
    inv = cv._math(ng, "SUBTRACT", 1.0, keep, "敷かない点", (x - 170, y), frame)
    cv._link(ng, inv, "Value", drop, "Selection")
    tile = cv._new_node(ng, "GeometryNodeMeshGrid", "敷地の板", (x, y - 200), frame)
    cv._sock(tile, "Size X").default_value = CELL * 0.96
    cv._sock(tile, "Size Y").default_value = CELL * 0.96
    cv._sock(tile, "Vertices X").default_value = 2
    cv._sock(tile, "Vertices Y").default_value = 2
    tr = cv._new_node(ng, "GeometryNodeTransform", "わずかに浮かす", (x + 170, y - 200), frame)
    cv._link(ng, tile, "Mesh", tr, "Geometry")
    cv._sock(tr, "Translation").default_value = (0.0, 0.0, z)
    sm = cv._new_node(ng, "GeometryNodeSetMaterial", material.name, (x + 340, y - 200), frame)
    cv._link(ng, tr, "Geometry", sm, "Geometry")
    cv._sock(sm, "Material").default_value = material
    iop = cv._new_node(ng, "GeometryNodeInstanceOnPoints", "敷地を敷く", (x + 510, y), frame)
    cv._link(ng, drop, "Geometry", iop, "Points")
    cv._link(ng, sm, "Geometry", iop, "Instance")
    geo = cv._store(ng, (iop, "Instances"), "part", 3.0, (x + 680, y), frame, domain="INSTANCE")
    return geo


# ---------------------------------------------------------------- 本体

def build(ng):
    # ★ノードのラベルは64バイト（日本語で約21文字）まで。長いと黙って途中で切れ、名前で探せなくなる
    f = cv._frame(ng, "⑦ 用途地域（住宅=外周 / 工業=2棟）", (-2300, -5200))

    gx = cv._named(ng, "gx", (-2250, -5300), f)
    gy = cv._named(ng, "gy", (-2250, -5460), f)
    r_h = cv._v(find(ng, "高さの乱数"))
    r_t = cv._v(find(ng, "種類の乱数"))
    r_c = cv._v(find(ng, "色の乱数"))
    r_r = cv._v(find(ng, "屋根の乱数"))
    bx = cv._v(find(ng, "ブロック内の列"))
    by = cv._v(find(ng, "ブロック内の行"))
    near = cv._v(find(ng, "近さ z"))

    # ---- 地区ごとの用途（中心=商店街 / 外側=住宅街 / 外縁=工業地帯）
    c = cv._Ctx(ng, -2060, -5300, f)
    dx = c.m("FLOOR", c.m("DIVIDE", gx, 40.0), None, "地区の列")
    c = cv._Ctx(ng, -2060, -5460, f)
    dy = c.m("FLOOR", c.m("DIVIDE", gy, 40.0), None, "地区の行")
    c = cv._Ctx(ng, -1720, -5380, f)
    did = c.m("ADD", c.m("MULTIPLY", dy, 100.0), dx, "地区の番号")
    r_z = cv._rand(ng, did, 11, (-1380, -5380), f, "用途の乱数")

    half_n = (GRID - 1) * 0.5
    c = cv._Ctx(ng, -1210, -5300, f)
    cx = c.m("ABSOLUTE", c.m("SUBTRACT", gx, half_n))
    c2 = cv._Ctx(ng, -1210, -5460, f)
    cy = c2.m("ABSOLUTE", c2.m("SUBTRACT", gy, half_n))
    c3 = cv._Ctx(ng, -870, -5380, f)
    u = c3.m("DIVIDE", c3.m("MAXIMUM", cx, cy), half_n, "中心からの四角い距離")
    u2 = c3.m("ADD", u, c3.m("MULTIPLY", c3.m("SUBTRACT", r_z, 0.5), 0.12), "ゆらぎ込み")
    c4 = cv._Ctx(ng, -360, -5300, f)
    is_shop = c4.m("LESS_THAN", u2, 0.30, "商店か")
    c5 = cv._Ctx(ng, -360, -5460, f)
    is_ind = c5.m("MULTIPLY", c5.m("GREATER_THAN", u2, 0.82), c5.m("SUBTRACT", 1.0, is_shop), "工業か")
    c6 = cv._Ctx(ng, -360, -5620, f)
    is_home = c6.m("SUBTRACT", c6.m("SUBTRACT", 1.0, is_shop), is_ind, "住宅か")
    zone = c6.m("ADD", is_shop, c6.m("MULTIPLY", is_ind, 2.0), "用途 0住宅/1商店/2工業")

    # ---- 街区の中での位置（道路は bx<2 / by<2 の2区画ぶん、内側は 2〜7）
    c = cv._Ctx(ng, -1210, -5800, f)
    on_x = c.m("MAXIMUM", eq(c, bx, float(ROAD_W)), eq(c, bx, float(ROAD_EVERY - 1)), "左右の端")
    c = cv._Ctx(ng, -1210, -5960, f)
    on_y = c.m("MAXIMUM", eq(c, by, float(ROAD_W)), eq(c, by, float(ROAD_EVERY - 1)), "上下の端")
    c = cv._Ctx(ng, -700, -5880, f)
    peri = c.m("MAXIMUM", on_x, on_y, "街区の外周（道路に面する）")
    c = cv._Ctx(ng, -1210, -6120, f)
    shed = c.m("MULTIPLY", eq(c, bx, 3.0), eq(c, by, 3.0), "生産棟を置く区画")
    c = cv._Ctx(ng, -1210, -6280, f)
    office = c.m("MULTIPLY", eq(c, bx, 6.0), eq(c, by, 2.0), "オフィス棟を置く区画")

    # ---- 合体（v5）は商店街だけにする
    p_m = find(ng, "合体する確率", required=False)
    if p_m is not None:
        used = consumers(ng, p_m)
        c = cv._Ctx(ng, -360, -6400, f)
        rewire(ng, used, c.m("MULTIPLY", cv._v(p_m), is_shop, "合体は商店街だけ"))

    # ---- 建てない区画を増やす（住宅=外周以外 / 工業=生産棟とオフィス棟以外）
    kill = find(ng, "消す点（合体込み）", required=False) or find(ng, "消す点")
    kill_used = consumers(ng, kill)
    c = cv._Ctx(ng, -360, -6560, f)
    drop_home = c.m("MULTIPLY", is_home, c.m("SUBTRACT", 1.0, peri), "住宅: 内側は建てない")
    c = cv._Ctx(ng, -360, -6720, f)
    keep_ind = c.m("MAXIMUM", shed, office)
    drop_ind = c.m("MULTIPLY", is_ind, c.m("SUBTRACT", 1.0, keep_ind), "工業: 2棟以外は建てない")
    c = cv._Ctx(ng, 320, -6640, f)
    kill_new = c.m("MAXIMUM", cv._v(kill), c.m("MAXIMUM", drop_home, drop_ind), "消す点（用途ごと）")
    rewire(ng, kill_used, kill_new)

    # ---- 階数
    fl_node = find(ng, "階数（D型は3階まで）")
    fl_used = consumers(ng, fl_node)
    c = cv._Ctx(ng, -1210, -6900, f)
    fl_home = c.m("ADD", 1.0, c.m("FLOOR", c.m("MULTIPLY", r_h, 3.0)), "住宅 1〜3階")
    c = cv._Ctx(ng, -1210, -7060, f)
    fl_shop = c.m("ADD", 3.0, c.m("FLOOR", c.m("MULTIPLY", r_h, c.m("ADD", 3.0, c.m("MULTIPLY", near, 12.0)))),
                  "商店 3階〜")
    c = cv._Ctx(ng, -1210, -7220, f)
    fl_off = c.m("ADD", 3.0, c.m("FLOOR", c.m("MULTIPLY", r_h, 2.0)), "オフィス棟 3〜4階")
    c = cv._Ctx(ng, -700, -7140, f)
    fl_ind = c.m("ADD", 2.0, c.m("MULTIPLY", office, c.m("SUBTRACT", fl_off, 2.0)), "工業（生産棟2階／オフィス棟）")
    c = cv._Ctx(ng, -190, -7060, f)
    fl_new = c.m("ADD", c.m("ADD", c.m("MULTIPLY", is_home, fl_home), c.m("MULTIPLY", is_shop, fl_shop)),
                 c.m("MULTIPLY", is_ind, fl_ind), "階数（用途ごと）")
    rewire(ng, fl_used, fl_new)

    # ---- 種類（0箱 / 1セットバック / 2屋上設備 / 3低層ワイド）
    typ_node = find(ng, "種類 0〜3")
    typ_used = consumers(ng, typ_node)
    c = cv._Ctx(ng, -1210, -7400, f)
    t_home = c.m("MULTIPLY", c.m("FLOOR", c.m("MULTIPLY", r_t, 2.0)), 3.0, "住宅 0箱/3低層ワイド")
    c = cv._Ctx(ng, -1210, -7560, f)
    t_shop = c.m("ADD", 1.0, c.m("FLOOR", c.m("MULTIPLY", r_t, 2.0)), "商店 1/2")
    c = cv._Ctx(ng, -700, -7480, f)
    t_ind = c.m("MULTIPLY", c.m("SUBTRACT", 1.0, office), 3.0, "工業 生産棟3低層ワイド/オフィス0箱")
    c = cv._Ctx(ng, -190, -7400, f)
    t_new = c.m("ADD", c.m("ADD", c.m("MULTIPLY", is_home, t_home), c.m("MULTIPLY", is_shop, t_shop)),
                c.m("MULTIPLY", is_ind, t_ind), "種類（用途ごと）")
    rewire(ng, typ_used, t_new)

    # ---- 屋根（住宅だけ切妻が多い）
    roof_node = find(ng, "屋根 0平/1切妻/2段違い")
    roof_used = consumers(ng, roof_node)
    is_C = cv._v(find(ng, "屋上設備型"))
    c = cv._Ctx(ng, -1210, -7720, f)
    r_home = c.m("LESS_THAN", r_r, 0.75, "住宅 切妻75%")
    c = cv._Ctx(ng, -700, -7720, f)
    roof_new = c.m("MULTIPLY", c.m("MULTIPLY", is_home, r_home), c.m("SUBTRACT", 1.0, is_C), "屋根（用途ごと）")
    rewire(ng, roof_used, roof_new)

    # ---- 色
    col_node = find(ng, "色の番号 0〜5")
    col_used = consumers(ng, col_node)
    c = cv._Ctx(ng, -1210, -7880, f)
    two = c.m("FLOOR", c.m("MULTIPLY", r_c, 2.0), None, "0か1")
    c = cv._Ctx(ng, -870, -7880, f)
    col_home = c.m("ADD", 2.0, two, "住宅 2白/3ベージュ")
    c = cv._Ctx(ng, -870, -8040, f)
    col_ind = c.m("ADD", 1.0, c.m("MULTIPLY", office, -1.0), "工業 生産棟1グレー/オフィス0青灰")
    c = cv._Ctx(ng, -360, -7960, f)
    col_new = c.m("ADD", c.m("ADD", c.m("MULTIPLY", is_home, col_home), c.m("MULTIPLY", is_shop, two)),
                  c.m("MULTIPLY", is_ind, col_ind), "色（用途ごと）")
    rewire(ng, col_used, col_new)

    # ---- 大きさ（幅・奥行）
    sx_node = find(ng, "横の倍率", required=False)
    scl = find(ng, "幅・奥行・高さ")
    # ★差し替え先は「新しいノードを作る前」に控える。あとで取ると自分自身が混ざって循環参照になる
    sx_used = consumers(ng, sx_node) if sx_node is not None else []
    base_sx = cv._v(sx_node) if sx_node is not None else 1.0
    c = cv._Ctx(ng, -190, -8200, f)
    sx_ind = c.m("ADD", 1.0, c.m("MULTIPLY", shed, SHED_SX - 1.0), "工業の幅（生産棟は4区画ぶん）")
    c = cv._Ctx(ng, -190, -8360, f)
    sy_ind = c.m("ADD", 1.0, c.m("MULTIPLY", shed, SHED_SY - 1.0), "工業の奥行（生産棟は3区画ぶん）")
    c = cv._Ctx(ng, 320, -8200, f)
    sx_new = c.m("ADD", c.m("ADD", c.m("MULTIPLY", is_home, HOME_SCALE), c.m("MULTIPLY", is_shop, base_sx)),
                 c.m("MULTIPLY", is_ind, sx_ind), "幅（用途ごと）")
    c = cv._Ctx(ng, 320, -8360, f)
    sy_new = c.m("ADD", c.m("ADD", c.m("MULTIPLY", is_home, HOME_SCALE), is_shop),
                 c.m("MULTIPLY", is_ind, sy_ind), "奥行（用途ごと）")
    if sx_node is not None:
        rewire(ng, sx_used, sx_new)                     # 幅の記録と屋根の幅もここで切り替わる
    else:
        link_to(ng, sx_new, scl, "X")
    link_to(ng, sy_new, scl, "Y")

    # 屋根の奥行も同じ倍率にする（本体だけ縮むと屋根がはみ出す）
    rscl = find(ng, "屋根の倍率", required=False)
    if rscl is not None:
        tf = cv._v(find(ng, "屋上の広さ"))
        c = cv._Ctx(ng, 830, -8360, f)
        link_to(ng, c.m("MULTIPLY", tf, sy_new, "屋根の奥行"), rscl, "Y")

    # ---- 生産棟は4×3区画の真ん中へ寄せる
    iop = find(ng, "点に建物を置く")
    src = next(lk for lk in ng.links if lk.to_node.name == iop.name and lk.to_socket.name == "Points")
    geo = (ng.nodes[src.from_node.name], src.from_socket.name)
    geo = cv._store(ng, geo, "zone", zone, (1700, 300))
    geo = cv._store(ng, geo, "sy", sy_new, (1870, 300))
    off = cv._new_node(ng, "ShaderNodeCombineXYZ", "生産棟を敷地の中心へ", (2040, 140))
    c = cv._Ctx(ng, 1870, 140, f)
    link_to(ng, c.m("MULTIPLY", shed, CELL * 0.5), off, "X")
    sp = cv._new_node(ng, "GeometryNodeSetPosition", "生産棟を寄せる", (2210, 300))
    cv._link(ng, geo[0], geo[1], sp, "Geometry")
    cv._link(ng, off, "Vector", sp, "Offset")
    ng.links.new(cv._sock(sp, "Geometry", "outputs"), cv._sock(iop, "Points"))

    # ---- 庭・駐車場・ヤードの敷地を敷く
    del_r = find(ng, "道路の点だけ残す")
    psrc = next(lk for lk in ng.links if lk.to_node.name == del_r.name and lk.to_socket.name == "Geometry")
    pts_geo = (ng.nodes[psrc.from_node.name], psrc.from_socket.name)
    is_road = cv._v(find(ng, "どちらかが道路"))
    f8 = cv._frame(ng, "⑧ 庭・駐車場・工場のヤード", (1700, -2600))
    c = cv._Ctx(ng, 1750, -2700, f8)
    not_road = c.m("SUBTRACT", 1.0, is_road, "道路以外")
    inner_home = c.m("MULTIPLY", c.m("MULTIPLY", is_home, not_road), c.m("SUBTRACT", 1.0, peri), "住宅の内側")
    r_p = cv._rand(ng, cv._v(find(ng, "区画の通し番号")), 21, (1750, -2860), f8, "駐車場の乱数")
    c = cv._Ctx(ng, 1920, -2860, f8)
    is_park = c.m("MULTIPLY", inner_home, c.m("LESS_THAN", r_p, 0.3), "駐車場にする区画")
    c = cv._Ctx(ng, 2430, -2860, f8)
    is_garden = c.m("MULTIPLY", inner_home, c.m("SUBTRACT", 1.0, c.m("LESS_THAN", r_p, 0.3)), "庭にする区画")
    c = cv._Ctx(ng, 1920, -3020, f8)
    is_yard = c.m("MULTIPLY", is_ind, not_road, "工場のヤード")

    join = find(ng, "建物＋屋根＋道路＋地面")
    for keep, m, loc in (
            (is_garden, mat("P1002_Garden", (0.22, 0.34, 0.16, 1.0)), (2950, -2700)),
            (is_park, mat("P1002_Parking", (0.30, 0.30, 0.31, 1.0)), (2950, -3200)),
            (is_yard, mat("P1002_Yard", (0.38, 0.37, 0.35, 1.0)), (2950, -3700))):
        g = ground_patch(ng, pts_geo, keep, m, f8, loc)
        ng.links.new(cv._sock(g[0], g[1], "outputs"), cv._sock(join, "Geometry"))

    return zone


# ---------------------------------------------------------------- 集計・撮影

def read_rows(city):
    dg = bpy.context.evaluated_depsgraph_get()
    dg.update()
    gs = city.evaluated_get(dg).evaluated_geometry()
    pc = gs.instances_pointcloud()
    if not pc:
        return []
    n = len(pc.points)
    cols = {}
    for name in ("gx", "gy", "part", "type", "h", "floors", "col_id", "roof", "sx", "sy", "zone"):
        a = pc.attributes.get(name)
        v = [0.0] * n
        if a is not None:
            a.data.foreach_get("value", v)
        cols[name] = v
    return [{k: cols[k][i] for k in cols} for i in range(n)]


def ground_z_at(x, y):
    dg = bpy.context.evaluated_depsgraph_get()
    hit, loc, *_ = bpy.context.scene.ray_cast(dg, (x, y, 500.0), (0.0, 0.0, -1.0))
    return loc.z if hit else 0.0


def render_views(outdir, views=("wide", "close", "detail", "street"), res=(1600, 900), samples=64):
    sc = bpy.context.scene
    sc.render.resolution_x, sc.render.resolution_y = res
    sc.render.image_settings.file_format = "PNG"
    try:
        sc.eevee.taa_render_samples = samples
    except Exception:
        pass
    shots = os.path.join(outdir, "shots")
    os.makedirs(shots, exist_ok=True)
    size = CELL * (GRID - 1)
    cam = sc.camera
    names = []
    for mode in views:
        gz = None
        if mode == "street":
            cv.set_camera(cam, size, "street", 0.0)
            gz = ground_z_at(cam.location.x, cam.location.y)
        cv.set_camera(cam, size, mode, gz)
        cv.set_lighting(mode in ("detail", "street"))
        sc.render.filepath = os.path.join(shots, f"v7_zones_n{GRID}_{mode}.png")
        bpy.ops.render.render(write_still=True)
        names.append(os.path.basename(sc.render.filepath))
        log("  shot", names[-1])
    cv.set_camera(cam, size, "wide")
    cv.set_lighting(False)
    return names


def main():
    here = os.path.dirname(os.path.abspath(__file__))
    outdir = OUT if os.path.isabs(OUT) else os.path.join(here, OUT)
    os.makedirs(outdir, exist_ok=True)

    city, ng = cv.build_stage("v5_merge", grid_n=GRID, cell=CELL)
    n0 = len(ng.nodes)
    build(ng)
    log("ノード数", n0, "→", len(ng.nodes))

    allrows = read_rows(city)
    rows = [r for r in allrows if r["part"] < 0.5]
    patches = [r for r in allrows if r["part"] > 2.5]
    rec = {"grid": GRID, "cell": CELL, "blender": bpy.app.version_string,
           "buildings": len(rows), "ground_patches": len(patches), "zones": {}}
    for z, name in ZONE_NAMES.items():
        g = [r for r in rows if int(round(r["zone"])) == z]
        if not g:
            continue
        blocks = Counter((int(r["gx"]) // ROAD_EVERY, int(r["gy"]) // ROAD_EVERY) for r in g)
        rec["zones"][name] = {
            "棟数": len(g),
            "割合": round(len(g) / len(rows), 3),
            "1街区あたりの棟数": round(sum(blocks.values()) / len(blocks), 1),
            "階数": {"最小": int(min(r["floors"] for r in g)), "最大": int(max(r["floors"] for r in g)),
                     "平均": round(sum(r["floors"] for r in g) / len(g), 2)},
            "幅": {"最小": round(min(r["sx"] for r in g), 2), "最大": round(max(r["sx"] for r in g), 2)},
            "奥行": {"最小": round(min(r["sy"] for r in g), 2), "最大": round(max(r["sy"] for r in g), 2)},
            "種類": dict(Counter(int(r["type"]) for r in g)),
            "屋根": dict(Counter(int(r["roof"]) for r in g)),
        }
        log(f"{name}: {len(g)}棟 1街区{rec['zones'][name]['1街区あたりの棟数']}棟 "
            f"平均{rec['zones'][name]['階数']['平均']}階 幅{rec['zones'][name]['幅']}")
    log("敷地の板", len(patches), "枚")

    if RENDER:
        rec["shots"] = render_views(outdir)
    if SAVE:
        bpy.ops.wm.save_as_mainfile(filepath=os.path.join(outdir, f"p1002_v7_zones_n{GRID}.blend"))

    with open(os.path.join(outdir, f"zones2_n{GRID}.json"), "w", encoding="utf-8") as fp:
        json.dump(rec, fp, ensure_ascii=False, indent=2)
    with open(os.path.join(outdir, f"rows_v7_zones_n{GRID}.json"), "w", encoding="utf-8") as fp:
        json.dump(rows, fp)
    log("DONE", os.path.join(outdir, f"zones2_n{GRID}.json"))


if __name__ == "__main__":   # run_stages / measure から部品として読み込むときは走らせない
    main()

# -*- coding: utf-8 -*-
"""p1002 追加その3: 住宅街を「敷地ごと」に作り込む（v8）。

★city_var.py の作りは変えずに、組み上がったツリーへ足す。
  v5_merge のノードツリーに枠を足し、値を決めている数式ノードの出口だけ差し替える。

v7（zones_v7.py）からの変更は住宅街だけ:
  ・敷地 = **間口1区画 × 奥行き2区画**（街区の外側2列を使う）。1街区16区画
  ・敷地を**1つの部品（メッシュ）**にして、**柵（全周・車の出入口だけ開ける）／駐車場／庭**を作り込む
  ・家は敷地の**中央やや奥**に置く（手前は駐車場、周りは庭）
  ・敷地の部品は家と同じ向きで置くので、**手前＝必ず道路側**になる（駐車場も出入口も道路に面する）
  ・街区の中央2×2は共有の裏庭（緑の板）

  blender.exe -b --factory-startup --python zones_v8.py -- --grid 161 --out out/extra_zones3 --render
"""
import bpy
import json
import math
import os
import sys
from collections import Counter

sys.path.insert(0, os.path.dirname(os.path.abspath(__file__)))
import city_var as cv  # noqa: E402

# ※2026-10-07 単体実行に加えて、city_var.build_stage("v8_…") から build(ng) を呼べるようにした。
#   起伏をなだらかにする処理（smooth_terrain）は city_var.py の既定に移したので、ここでは呼ばない。

A = sys.argv[sys.argv.index("--") + 1:] if "--" in sys.argv else []


def arg(n, d):
    return A[A.index("--" + n) + 1] if "--" + n in A else d


GRID = int(arg("grid", 161))
CELL = float(arg("cell", 2.0))
OUT = arg("out", "out/extra_zones3")
RENDER = "--render" in A
SAVE = "--save" in A
ROAD_EVERY, ROAD_W = 8, 2
HOME_SCALE = 0.68            # 家の大きさ（間口1区画に対して）
SETBACK = 1.2                # 家を手前からどれだけ奥へ置くか（敷地は -0.96〜2.96。中央1.0よりやや奥）
SHED_SX, SHED_SY = 4.6, 3.4  # 生産棟
ZONE_NAMES = {0: "住宅", 1: "商店", 2: "工業"}


def log(*a):
    print("[zones3]", *a, flush=True)


# ---------------------------------------------------------------- 差し替えの道具

def find(ng, label, required=True):
    n = next((x for x in ng.nodes if x.label == label), None)
    if n is None and required:
        raise RuntimeError(f"ラベル『{label}』のノードが見つからない")
    return n


def consumers(ng, node, sock="Value"):
    """★差し替え先は新しいノードを作る前に控える（あとで取ると自分自身が混ざって循環参照になる）。
       `link.to_node is node` は常に偽になるので名前で突き合わせる。"""
    return [(lk.to_node.name, lk.to_socket.identifier) for lk in ng.links
            if lk.from_node.name == node.name and lk.from_socket.name == sock]


def rewire(ng, targets, new_out):
    for node_name, sock_id in targets:
        to_node = ng.nodes[node_name]
        to_sock = next(s for s in to_node.inputs if s.identifier == sock_id)
        ng.links.new(cv._sock(new_out[0], new_out[1], "outputs"), to_sock)


def link_to(ng, out, node, sock_name):
    ng.links.new(cv._sock(out[0], out[1], "outputs"), cv._sock(node, sock_name))


def eq(c, a, b, label=None):
    v = c.m("COMPARE", a, b, label)
    v[0].inputs[2].default_value = 0.1
    return v


def mat(name, rgb, rough=0.95):
    m = bpy.data.materials.get(name) or bpy.data.materials.new(name)
    m.use_nodes = True
    bsdf = m.node_tree.nodes.get("Principled BSDF")
    if bsdf:
        bsdf.inputs["Base Color"].default_value = rgb
        if "Roughness" in bsdf.inputs:
            bsdf.inputs["Roughness"].default_value = rough
    m.diffuse_color = rgb
    return m


# ---------------------------------------------------------------- 敷地の部品をつくる

def box(verts, faces, mats, x0, x1, y0, y1, z0, z1, mi):
    """直方体を1つ足す（柵の棒・駐車場の舗装などに使う）"""
    i = len(verts)
    verts += [(x0, y0, z0), (x1, y0, z0), (x1, y1, z0), (x0, y1, z0),
              (x0, y0, z1), (x1, y0, z1), (x1, y1, z1), (x0, y1, z1)]
    quads = [(0, 1, 2, 3), (4, 7, 6, 5), (0, 4, 5, 1), (1, 5, 6, 2), (2, 6, 7, 3), (3, 7, 4, 0)]
    for q in quads:
        faces.append(tuple(i + k for k in q))
        mats.append(mi)


def build_lot_object():
    """敷地1つぶんのメッシュ（庭・駐車場・柵）。原点は間口側の区画の中心、手前(-Y)が道路。

    形（単位はブレンダーの単位。区画=2.0）:
      敷地   X -0.96〜0.96 / Y -0.96〜2.96（間口1区画×奥行き2区画）
      駐車場 手前の左寄り X -0.96〜-0.05 / Y -0.96〜0.20
      柵     全周（高さ0.14・厚み0.06）。**手前は駐車場のぶんだけ開けて車の出入口にする**
    """
    name = "P1002_Lot"
    if name in bpy.data.objects:
        bpy.data.objects.remove(bpy.data.objects[name], do_unlink=True)
    me = bpy.data.meshes.new(name)
    verts, faces, midx = [], [], []

    x0, x1 = -0.96, 0.96
    y0, y1 = -0.96, 2.96
    gate_x = -0.05                      # 車の出入口の右端（ここから右は柵）

    # 0=庭（地面）
    i = len(verts)
    verts += [(x0, y0, 0.02), (x1, y0, 0.02), (x1, y1, 0.02), (x0, y1, 0.02)]
    faces.append((i, i + 1, i + 2, i + 3))
    midx.append(0)
    # 1=駐車場（庭より少し高くして重なりを避ける）
    i = len(verts)
    verts += [(x0, y0, 0.035), (gate_x, y0, 0.035), (gate_x, 0.20, 0.035), (x0, 0.20, 0.035)]
    faces.append((i, i + 1, i + 2, i + 3))
    midx.append(1)
    # 2=柵（全周。手前は出入口のぶんだけ開ける）
    t, h = 0.06, 0.14
    box(verts, faces, midx, x0, x1, y1 - t, y1, 0.02, 0.02 + h, 2)          # 奥
    box(verts, faces, midx, x0, x0 + t, y0, y1, 0.02, 0.02 + h, 2)          # 左
    box(verts, faces, midx, x1 - t, x1, y0, y1, 0.02, 0.02 + h, 2)          # 右
    box(verts, faces, midx, gate_x, x1, y0, y0 + t, 0.02, 0.02 + h, 2)      # 手前（出入口の右側だけ）

    me.from_pydata(verts, [], faces)
    me.update()
    for m in (mat("P1002_Garden", (0.22, 0.34, 0.16, 1.0)),
              mat("P1002_Parking", (0.30, 0.30, 0.31, 1.0)),
              mat("P1002_Fence", (0.62, 0.60, 0.56, 1.0), rough=0.8)):
        me.materials.append(m)
    for p, mi in zip(me.polygons, midx):
        p.material_index = mi

    ob = bpy.data.objects.new(name, me)
    coll = bpy.data.collections.get("P1002_LotColl")
    if coll is None:
        coll = bpy.data.collections.new("P1002_LotColl")
    for o in list(coll.objects):
        coll.objects.unlink(o)
    coll.objects.link(ob)
    log(f"敷地の部品: 面 {len(faces)}（庭1 / 駐車場1 / 柵{len(faces) - 2}）")
    return coll


def ground_patch(ng, pts_geo, keep, material, frame, loc, z=0.03):
    x, y = loc
    drop = cv._new_node(ng, "GeometryNodeDeleteGeometry", "敷く点だけ残す", (x, y), frame)
    drop.domain = "POINT"
    cv._link(ng, pts_geo[0], pts_geo[1], drop, "Geometry")
    inv = cv._math(ng, "SUBTRACT", 1.0, keep, "敷かない点", (x - 170, y), frame)
    cv._link(ng, inv, "Value", drop, "Selection")
    tile = cv._new_node(ng, "GeometryNodeMeshGrid", "敷地の板", (x, y - 200), frame)
    cv._sock(tile, "Size X").default_value = CELL * 0.96
    cv._sock(tile, "Size Y").default_value = CELL * 0.96
    cv._sock(tile, "Vertices X").default_value = 2
    cv._sock(tile, "Vertices Y").default_value = 2
    tr = cv._new_node(ng, "GeometryNodeTransform", "わずかに浮かす", (x + 170, y - 200), frame)
    cv._link(ng, tile, "Mesh", tr, "Geometry")
    cv._sock(tr, "Translation").default_value = (0.0, 0.0, z)
    sm = cv._new_node(ng, "GeometryNodeSetMaterial", material.name, (x + 340, y - 200), frame)
    cv._link(ng, tr, "Geometry", sm, "Geometry")
    cv._sock(sm, "Material").default_value = material
    iop = cv._new_node(ng, "GeometryNodeInstanceOnPoints", "敷地を敷く", (x + 510, y), frame)
    cv._link(ng, drop, "Geometry", iop, "Points")
    cv._link(ng, sm, "Geometry", iop, "Instance")
    return cv._store(ng, (iop, "Instances"), "part", 3.0, (x + 680, y), frame, domain="INSTANCE")


# ---------------------------------------------------------------- 本体

def build(ng):
    lot_coll = build_lot_object()
    # ★ノードのラベルは64バイト（日本語で約21文字）まで。長いと黙って途中で切れ、名前で探せなくなる
    f = cv._frame(ng, "⑦ 用途地域（住宅=敷地 / 工業=2棟）", (-2300, -5200))

    gx = cv._named(ng, "gx", (-2250, -5300), f)
    gy = cv._named(ng, "gy", (-2250, -5460), f)
    r_h = cv._v(find(ng, "高さの乱数"))
    r_t = cv._v(find(ng, "種類の乱数"))
    r_c = cv._v(find(ng, "色の乱数"))
    r_r = cv._v(find(ng, "屋根の乱数"))
    bx = cv._v(find(ng, "ブロック内の列"))
    by = cv._v(find(ng, "ブロック内の行"))
    near = cv._v(find(ng, "近さ z"))

    # ---- 用途（中心=商店街 / 外側=住宅街 / 外縁=工業地帯）
    c = cv._Ctx(ng, -2060, -5300, f)
    dx = c.m("FLOOR", c.m("DIVIDE", gx, 40.0), None, "地区の列")
    c = cv._Ctx(ng, -2060, -5460, f)
    dy = c.m("FLOOR", c.m("DIVIDE", gy, 40.0), None, "地区の行")
    c = cv._Ctx(ng, -1720, -5380, f)
    did = c.m("ADD", c.m("MULTIPLY", dy, 100.0), dx, "地区の番号")
    r_z = cv._rand(ng, did, 11, (-1380, -5380), f, "用途の乱数")
    half_n = (GRID - 1) * 0.5
    c = cv._Ctx(ng, -1210, -5300, f)
    cx = c.m("ABSOLUTE", c.m("SUBTRACT", gx, half_n))
    c2 = cv._Ctx(ng, -1210, -5460, f)
    cy = c2.m("ABSOLUTE", c2.m("SUBTRACT", gy, half_n))
    c3 = cv._Ctx(ng, -870, -5380, f)
    u = c3.m("DIVIDE", c3.m("MAXIMUM", cx, cy), half_n, "中心からの四角い距離")
    u2 = c3.m("ADD", u, c3.m("MULTIPLY", c3.m("SUBTRACT", r_z, 0.5), 0.12), "ゆらぎ込み")
    c4 = cv._Ctx(ng, -360, -5300, f)
    is_shop = c4.m("LESS_THAN", u2, 0.30, "商店か")
    c5 = cv._Ctx(ng, -360, -5460, f)
    is_ind = c5.m("MULTIPLY", c5.m("GREATER_THAN", u2, 0.82), c5.m("SUBTRACT", 1.0, is_shop), "工業か")
    c6 = cv._Ctx(ng, -360, -5620, f)
    is_home = c6.m("SUBTRACT", c6.m("SUBTRACT", 1.0, is_shop), is_ind, "住宅か")
    zone = c6.m("ADD", is_shop, c6.m("MULTIPLY", is_ind, 2.0), "用途 0住宅/1商店/2工業")

    # ---- 敷地の割り付け（間口1区画×奥行き2区画。間口の区画＝敷地の基点）
    #   南 by=2（bx2〜7）/ 北 by=7（bx2〜7）/ 西 bx=2（by4〜5）/ 東 bx=7（by4〜5）＝1街区16敷地
    c = cv._Ctx(ng, -1210, -5800, f)
    mid_y = c.m("MULTIPLY", c.m("GREATER_THAN", by, 3.5), c.m("LESS_THAN", by, 5.5), "行が中ほど(4〜5)")
    c = cv._Ctx(ng, -700, -5800, f)
    a_s = eq(c, by, 2.0, "南向きの敷地")
    c = cv._Ctx(ng, -700, -5960, f)
    a_n = eq(c, by, float(ROAD_EVERY - 1), "北向きの敷地")
    c = cv._Ctx(ng, -700, -6120, f)
    a_w = c.m("MULTIPLY", eq(c, bx, 2.0), mid_y, "西向きの敷地")
    c = cv._Ctx(ng, -700, -6280, f)
    a_e = c.m("MULTIPLY", eq(c, bx, float(ROAD_EVERY - 1)), mid_y, "東向きの敷地")
    c = cv._Ctx(ng, -190, -6040, f)
    anchor = c.m("MAXIMUM", c.m("MAXIMUM", a_s, a_n), c.m("MAXIMUM", a_w, a_e), "敷地の基点")
    # 街区の中央2×2（共有の裏庭）
    c = cv._Ctx(ng, -1210, -6440, f)
    core = c.m("MULTIPLY", c.m("MULTIPLY", c.m("GREATER_THAN", bx, 3.5), c.m("LESS_THAN", bx, 5.5)), mid_y, "中央2×2")

    # ---- 工業（v7と同じ）
    c = cv._Ctx(ng, -1210, -6600, f)
    shed = c.m("MULTIPLY", eq(c, bx, 3.0), eq(c, by, 3.0), "生産棟を置く区画")
    c = cv._Ctx(ng, -1210, -6760, f)
    office = c.m("MULTIPLY", eq(c, bx, 6.0), eq(c, by, 2.0), "オフィス棟を置く区画")

    # ---- 合体（v5）は商店街だけ
    p_m = find(ng, "合体する確率", required=False)
    if p_m is not None:
        used = consumers(ng, p_m)
        c = cv._Ctx(ng, -360, -6900, f)
        rewire(ng, used, c.m("MULTIPLY", cv._v(p_m), is_shop, "合体は商店街だけ"))

    # ---- 建てない区画（住宅=敷地の基点以外 / 工業=2棟以外）
    kill = find(ng, "消す点（合体込み）", required=False) or find(ng, "消す点")
    kill_used = consumers(ng, kill)
    c = cv._Ctx(ng, -360, -7060, f)
    drop_home = c.m("MULTIPLY", is_home, c.m("SUBTRACT", 1.0, anchor), "住宅: 基点以外は建てない")
    c = cv._Ctx(ng, -360, -7220, f)
    drop_ind = c.m("MULTIPLY", is_ind, c.m("SUBTRACT", 1.0, c.m("MAXIMUM", shed, office)), "工業: 2棟以外")
    c = cv._Ctx(ng, 320, -7140, f)
    kill_new = c.m("MAXIMUM", cv._v(kill), c.m("MAXIMUM", drop_home, drop_ind), "消す点（用途ごと）")
    rewire(ng, kill_used, kill_new)

    # ---- 階数 / 種類 / 屋根 / 色（v7と同じ）
    fl_node = find(ng, "階数（D型は3階まで）")
    fl_used = consumers(ng, fl_node)
    c = cv._Ctx(ng, -1210, -7400, f)
    fl_home = c.m("ADD", 1.0, c.m("FLOOR", c.m("MULTIPLY", r_h, 3.0)), "住宅 1〜3階")
    c = cv._Ctx(ng, -1210, -7560, f)
    fl_shop = c.m("ADD", 3.0, c.m("FLOOR", c.m("MULTIPLY", r_h, c.m("ADD", 3.0, c.m("MULTIPLY", near, 12.0)))),
                  "商店 3階〜")
    c = cv._Ctx(ng, -1210, -7720, f)
    fl_off = c.m("ADD", 3.0, c.m("FLOOR", c.m("MULTIPLY", r_h, 2.0)), "オフィス棟 3〜4階")
    c = cv._Ctx(ng, -700, -7640, f)
    fl_ind = c.m("ADD", 2.0, c.m("MULTIPLY", office, c.m("SUBTRACT", fl_off, 2.0)), "工業")
    c = cv._Ctx(ng, -190, -7560, f)
    fl_new = c.m("ADD", c.m("ADD", c.m("MULTIPLY", is_home, fl_home), c.m("MULTIPLY", is_shop, fl_shop)),
                 c.m("MULTIPLY", is_ind, fl_ind), "階数（用途ごと）")
    rewire(ng, fl_used, fl_new)

    typ_node = find(ng, "種類 0〜3")
    typ_used = consumers(ng, typ_node)
    c = cv._Ctx(ng, -1210, -7900, f)
    t_home = c.m("MULTIPLY", c.m("FLOOR", c.m("MULTIPLY", r_t, 2.0)), 3.0, "住宅 0箱/3低層ワイド")
    c = cv._Ctx(ng, -1210, -8060, f)
    t_shop = c.m("ADD", 1.0, c.m("FLOOR", c.m("MULTIPLY", r_t, 2.0)), "商店 1/2")
    c = cv._Ctx(ng, -700, -7980, f)
    t_ind = c.m("MULTIPLY", c.m("SUBTRACT", 1.0, office), 3.0, "工業")
    c = cv._Ctx(ng, -190, -7900, f)
    t_new = c.m("ADD", c.m("ADD", c.m("MULTIPLY", is_home, t_home), c.m("MULTIPLY", is_shop, t_shop)),
                c.m("MULTIPLY", is_ind, t_ind), "種類（用途ごと）")
    rewire(ng, typ_used, t_new)

    roof_node = find(ng, "屋根 0平/1切妻/2段違い")
    roof_used = consumers(ng, roof_node)
    is_C = cv._v(find(ng, "屋上設備型"))
    c = cv._Ctx(ng, -1210, -8220, f)
    r_home = c.m("LESS_THAN", r_r, 0.75, "住宅 切妻75%")
    c = cv._Ctx(ng, -700, -8220, f)
    roof_new = c.m("MULTIPLY", c.m("MULTIPLY", is_home, r_home), c.m("SUBTRACT", 1.0, is_C), "屋根（用途ごと）")
    rewire(ng, roof_used, roof_new)

    col_node = find(ng, "色の番号 0〜5")
    col_used = consumers(ng, col_node)
    c = cv._Ctx(ng, -1210, -8380, f)
    two = c.m("FLOOR", c.m("MULTIPLY", r_c, 2.0), None, "0か1")
    c = cv._Ctx(ng, -870, -8380, f)
    col_home = c.m("ADD", 2.0, two, "住宅 2白/3ベージュ")
    c = cv._Ctx(ng, -870, -8540, f)
    col_ind = c.m("ADD", 1.0, c.m("MULTIPLY", office, -1.0), "工業")
    c = cv._Ctx(ng, -360, -8460, f)
    col_new = c.m("ADD", c.m("ADD", c.m("MULTIPLY", is_home, col_home), c.m("MULTIPLY", is_shop, two)),
                  c.m("MULTIPLY", is_ind, col_ind), "色（用途ごと）")
    rewire(ng, col_used, col_new)

    # ---- 大きさ
    sx_node = find(ng, "横の倍率", required=False)
    scl = find(ng, "幅・奥行・高さ")
    sx_used = consumers(ng, sx_node) if sx_node is not None else []
    base_sx = cv._v(sx_node) if sx_node is not None else 1.0
    c = cv._Ctx(ng, -190, -8700, f)
    sx_ind = c.m("ADD", 1.0, c.m("MULTIPLY", shed, SHED_SX - 1.0), "工業の幅")
    c = cv._Ctx(ng, -190, -8860, f)
    sy_ind = c.m("ADD", 1.0, c.m("MULTIPLY", shed, SHED_SY - 1.0), "工業の奥行")
    c = cv._Ctx(ng, 320, -8700, f)
    sx_new = c.m("ADD", c.m("ADD", c.m("MULTIPLY", is_home, HOME_SCALE), c.m("MULTIPLY", is_shop, base_sx)),
                 c.m("MULTIPLY", is_ind, sx_ind), "幅（用途ごと）")
    c = cv._Ctx(ng, 320, -8860, f)
    sy_new = c.m("ADD", c.m("ADD", c.m("MULTIPLY", is_home, HOME_SCALE), is_shop),
                 c.m("MULTIPLY", is_ind, sy_ind), "奥行（用途ごと）")
    if sx_node is not None:
        rewire(ng, sx_used, sx_new)
    else:
        link_to(ng, sx_new, scl, "X")
    link_to(ng, sy_new, scl, "Y")
    rscl = find(ng, "屋根の倍率", required=False)
    if rscl is not None:
        tf = cv._v(find(ng, "屋上の広さ"))
        c = cv._Ctx(ng, 830, -8860, f)
        link_to(ng, c.m("MULTIPLY", tf, sy_new, "屋根の奥行"), rscl, "Y")

    # ---- 家を敷地の中央やや奥へ下げる（向きに合わせて回す）／生産棟は敷地の中心へ
    iop = find(ng, "点に建物を置く")
    rot_vec = find(ng, "回転(Z)")                 # 建物の向き（CombineXYZ）
    src = next(lk for lk in ng.links if lk.to_node.name == iop.name and lk.to_socket.name == "Points")
    src_node, src_sock = ng.nodes[src.from_node.name], src.from_socket.name
    # ★この点は「建物を置く枝」と「屋根を載せる枝」の両方が使っている。
    #   差し替え先は**ここで**控える（新しいノードを足したあとに取ると空になる）
    orig_used = [(lk.to_node.name, lk.to_socket.identifier) for lk in ng.links
                 if lk.from_node.name == src_node.name and lk.from_socket.name == src_sock]
    geo = cv._store(ng, (src_node, src_sock), "zone", zone, (1600, 300))
    geo = cv._store(ng, geo, "sy", sy_new, (1770, 300))

    f9 = cv._frame(ng, "⑨ 家を敷地の奥へ下げる（手前は駐車場）", (1600, -1600))
    local = cv._new_node(ng, "ShaderNodeCombineXYZ", "敷地の中での位置", (1650, -1700), f9)
    c = cv._Ctx(ng, 1650, -1860, f9)
    link_to(ng, c.m("MULTIPLY", is_home, SETBACK), local, "Y")      # 住宅だけ奥へ
    c = cv._Ctx(ng, 1650, -2020, f9)
    link_to(ng, c.m("MULTIPLY", shed, CELL * 0.5), local, "X")      # 生産棟は右へ半区画
    rot_off = cv._new_node(ng, "ShaderNodeVectorRotate", "向きに合わせて回す", (1990, -1700), f9)
    rot_off.rotation_type = "Z_AXIS"
    cv._link(ng, local, "Vector", rot_off, "Vector")
    ang = find(ng, "向き（度）", required=False)
    if ang is not None:
        c = cv._Ctx(ng, 1820, -2180, f9)
        link_to(ng, c.m("RADIANS", cv._v(ang)), rot_off, "Angle")
    sp = cv._new_node(ng, "GeometryNodeSetPosition", "家を敷地の中へ置く", (2200, 300))
    cv._link(ng, geo[0], geo[1], sp, "Geometry")
    cv._link(ng, rot_off, "Vector", sp, "Offset")
    # 建物・屋根の両方を、属性を足して位置をずらしたあとの点につなぎ替える
    for node_name, sock_id in orig_used:
        to_node = ng.nodes[node_name]
        ng.links.new(cv._sock(sp, "Geometry", "outputs"),
                     next(s2 for s2 in to_node.inputs if s2.identifier == sock_id))

    # ---- 敷地の部品を置く（家と同じ向き＝手前が必ず道路側）
    del_r = find(ng, "道路の点だけ残す")
    psrc = next(lk for lk in ng.links if lk.to_node.name == del_r.name and lk.to_socket.name == "Geometry")
    pts_geo = (ng.nodes[psrc.from_node.name], psrc.from_socket.name)
    is_road = cv._v(find(ng, "どちらかが道路"))
    f8 = cv._frame(ng, "⑧ 敷地（柵・駐車場・庭）と工場のヤード", (1600, -3000))
    c = cv._Ctx(ng, 1650, -3100, f8)
    not_road = c.m("SUBTRACT", 1.0, is_road, "道路以外")
    lot_keep = c.m("MULTIPLY", c.m("MULTIPLY", is_home, anchor), c.m("SUBTRACT", 1.0, kill_new), "家が建つ敷地")
    c = cv._Ctx(ng, 1650, -3260, f8)
    core_keep = c.m("MULTIPLY", c.m("MULTIPLY", is_home, core), not_road, "街区中央の裏庭")
    c = cv._Ctx(ng, 1650, -3420, f8)
    yard_keep = c.m("MULTIPLY", is_ind, not_road, "工場のヤード")

    drop = cv._new_node(ng, "GeometryNodeDeleteGeometry", "敷地を置く点だけ残す", (2330, -3100), f8)
    drop.domain = "POINT"
    cv._link(ng, pts_geo[0], pts_geo[1], drop, "Geometry")
    inv = cv._math(ng, "SUBTRACT", 1.0, lot_keep, "置かない点", (2160, -3100), f8)
    cv._link(ng, inv, "Value", drop, "Selection")
    ci = cv._new_node(ng, "GeometryNodeCollectionInfo", "敷地の部品", (2330, -3300), f8)
    cv._sock(ci, "Collection").default_value = lot_coll
    cv._sock(ci, "Separate Children").default_value = False
    cv._sock(ci, "Reset Children").default_value = True
    iop_l = cv._new_node(ng, "GeometryNodeInstanceOnPoints", "敷地を置く", (2670, -3100), f8)
    cv._link(ng, drop, "Geometry", iop_l, "Points")
    cv._link(ng, ci, "Instances", iop_l, "Instance")
    cv._link(ng, rot_vec, "Vector", iop_l, "Rotation")
    lot_geo = cv._store(ng, (iop_l, "Instances"), "part", 4.0, (2840, -3100), f8, domain="INSTANCE")

    join = find(ng, "建物＋屋根＋道路＋地面")
    ng.links.new(cv._sock(lot_geo[0], lot_geo[1], "outputs"), cv._sock(join, "Geometry"))
    for keep, m, loc in ((core_keep, mat("P1002_Garden", (0.22, 0.34, 0.16, 1.0)), (1650, -3800)),
                         (yard_keep, mat("P1002_Yard", (0.38, 0.37, 0.35, 1.0)), (1650, -4300))):
        g = ground_patch(ng, pts_geo, keep, m, f8, loc)
        ng.links.new(cv._sock(g[0], g[1], "outputs"), cv._sock(join, "Geometry"))
    return zone


# ---------------------------------------------------------------- 集計・撮影

def read_rows(city):
    dg = bpy.context.evaluated_depsgraph_get()
    dg.update()
    gs = city.evaluated_get(dg).evaluated_geometry()
    pc = gs.instances_pointcloud()
    if not pc:
        return []
    n = len(pc.points)
    cols = {}
    for name in ("gx", "gy", "part", "type", "h", "floors", "col_id", "roof", "sx", "sy", "zone"):
        a = pc.attributes.get(name)
        v = [0.0] * n
        if a is not None:
            a.data.foreach_get("value", v)
        cols[name] = v
    return [{k: cols[k][i] for k in cols} for i in range(n)]


def ground_z_at(x, y):
    dg = bpy.context.evaluated_depsgraph_get()
    hit, loc, *_ = bpy.context.scene.ray_cast(dg, (x, y, 500.0), (0.0, 0.0, -1.0))
    return loc.z if hit else 0.0


def render_views(outdir, views=("wide", "close", "detail", "street"), res=(1600, 900), samples=64):
    sc = bpy.context.scene
    sc.render.resolution_x, sc.render.resolution_y = res
    sc.render.image_settings.file_format = "PNG"
    try:
        sc.eevee.taa_render_samples = samples
    except Exception:
        pass
    shots = os.path.join(outdir, "shots")
    os.makedirs(shots, exist_ok=True)
    size = CELL * (GRID - 1)
    cam = sc.camera
    names = []
    for mode in views:
        gz = None
        if mode == "street":
            cv.set_camera(cam, size, "street", 0.0)
            gz = ground_z_at(cam.location.x, cam.location.y)
        cv.set_camera(cam, size, mode, gz)
        cv.set_lighting(mode in ("detail", "street"))
        sc.render.filepath = os.path.join(shots, f"v8_lots_n{GRID}_{mode}.png")
        bpy.ops.render.render(write_still=True)
        names.append(os.path.basename(sc.render.filepath))
        log("  shot", names[-1])
    cv.set_camera(cam, size, "wide")
    cv.set_lighting(False)
    return names


def main():
    here = os.path.dirname(os.path.abspath(__file__))
    outdir = OUT if os.path.isabs(OUT) else os.path.join(here, OUT)
    os.makedirs(outdir, exist_ok=True)

    city, ng = cv.build_stage("v5_merge", grid_n=GRID, cell=CELL)
    n0 = len(ng.nodes)
    build(ng)
    log("ノード数", n0, "→", len(ng.nodes))

    allrows = read_rows(city)
    rows = [r for r in allrows if r["part"] < 0.5]
    lots = [r for r in allrows if r["part"] > 3.5]
    patches = [r for r in allrows if 2.5 < r["part"] < 3.5]
    rec = {"grid": GRID, "cell": CELL, "blender": bpy.app.version_string,
           "buildings": len(rows), "lots": len(lots), "ground_patches": len(patches), "zones": {}}
    for z, name in ZONE_NAMES.items():
        g = [r for r in rows if int(round(r["zone"])) == z]
        if not g:
            continue
        blocks = Counter((int(r["gx"]) // ROAD_EVERY, int(r["gy"]) // ROAD_EVERY) for r in g)
        rec["zones"][name] = {
            "棟数": len(g), "割合": round(len(g) / len(rows), 3),
            "1街区あたりの棟数": round(sum(blocks.values()) / len(blocks), 1),
            "階数": {"最小": int(min(r["floors"] for r in g)), "最大": int(max(r["floors"] for r in g)),
                     "平均": round(sum(r["floors"] for r in g) / len(g), 2)},
        }
        log(f"{name}: {len(g)}棟 1街区{rec['zones'][name]['1街区あたりの棟数']}棟 "
            f"平均{rec['zones'][name]['階数']['平均']}階")
    log("敷地の部品", len(lots), "／ 板", len(patches))

    if RENDER:
        rec["shots"] = render_views(outdir)
    if SAVE:
        bpy.ops.wm.save_as_mainfile(filepath=os.path.join(outdir, f"p1002_v8_lots_n{GRID}.blend"))
    with open(os.path.join(outdir, f"zones3_n{GRID}.json"), "w", encoding="utf-8") as fp:
        json.dump(rec, fp, ensure_ascii=False, indent=2)
    with open(os.path.join(outdir, f"rows_v8_lots_n{GRID}.json"), "w", encoding="utf-8") as fp:
        json.dump(rows, fp)
    log("DONE", os.path.join(outdir, f"zones3_n{GRID}.json"))


if __name__ == "__main__":   # run_stages / measure から部品として読み込むときは走らせない
    main()

# -*- coding: utf-8 -*-
"""
p1002: 各段階の街をつくり、「隣とそっくり」の割合を数え、画像を撮る

使い方（-b＝画面なしでよい）:
  blender -b --python run_stages.py -- --grid 161 --out out --render
  blender -b --python run_stages.py -- --stages v0_p973,v5_merge --grid 81
  blender -b --python run_stages.py -- --stages v5_merge --grid 161 --terrain old --road-slope
      （--terrain old＝最初の起伏に戻す／--road-slope＝道路の上の勾配を測る）

生成物:
  out/stages_n<grid>.json   … 段階ごとの棟数・分身の数・そっくり率など
  out/shots/<stage>_n<grid>_<view>.png   （--render のとき）
  out/p1002_<stage>_n<grid>.blend        （--save のとき）
"""

import bpy
import sys
import os
import json
import math
import time
from collections import Counter

sys.path.insert(0, os.path.dirname(os.path.abspath(__file__)))
import city_var as cv  # noqa: E402

DEFAULT_STAGES = ["v0_p973", "v1_orient", "v2_floors", "v3_roofs", "v4_windows", "v5_merge",
                  "v6_zones", "v7_zones", "v8_lots"]
VIEWS = ["wide", "close", "detail", "street", "houses", "industry", "lots"]


def parse_args():
    a = sys.argv[sys.argv.index("--") + 1:] if "--" in sys.argv else []
    out = {"grid": 161, "cell": 2.0, "out": "out", "stages": DEFAULT_STAGES,
           "render": False, "save": False, "dump": False, "views": VIEWS, "res": (1600, 900), "samples": 32,
           "terrain": "new", "road_slope": False}
    i = 0
    while i < len(a):
        k = a[i].lstrip("-")
        if k == "grid":
            out["grid"] = int(a[i + 1]); i += 2
        elif k == "out":
            out["out"] = a[i + 1]; i += 2
        elif k == "stages":
            out["stages"] = a[i + 1].split(","); i += 2
        elif k == "views":
            out["views"] = a[i + 1].split(","); i += 2
        elif k == "res":
            w, h = a[i + 1].split("x"); out["res"] = (int(w), int(h)); i += 2
        elif k == "samples":
            out["samples"] = int(a[i + 1]); i += 2
        elif k == "render":
            out["render"] = True; i += 1
        elif k == "save":
            out["save"] = True; i += 1
        elif k == "dump":
            out["dump"] = True; i += 1
        elif k == "terrain":
            out["terrain"] = a[i + 1]; i += 2
        elif k == "road-slope":
            out["road_slope"] = True; i += 1
        else:
            i += 1
    return out


# ---------------------------------------------------------------- 分身の属性を読む

def read_instances(city):
    """評価後の街から、分身1つずつの属性を取り出す（建物・屋根・道路）"""
    dg = bpy.context.evaluated_depsgraph_get()
    dg.update()
    gs = city.evaluated_get(dg).evaluated_geometry()
    pc = gs.instances_pointcloud()
    mesh = gs.mesh
    res = {"n_instances": len(pc.points) if pc else 0,
           "mesh_faces": len(mesh.polygons) if mesh else 0,
           "rows": []}
    if not pc:
        return res
    n = len(pc.points)
    cols = {}
    for name in ("gx", "gy", "part", "type", "h", "floors", "col_id", "roof", "rot", "sx", "sy", "zone"):
        a = pc.attributes.get(name)
        v = [0.0] * n
        if a is not None:
            a.data.foreach_get("value", v)
        cols[name] = v
    ref = [0] * n
    pc.attributes[".reference_index"].data.foreach_get("value", ref)
    refs = gs.instance_references()
    face_of = [cv.ref_faces(r) for r in refs]
    res["unique_meshes"] = len(set(ref))
    res["drawn_faces"] = sum(face_of[i] if i < len(face_of) else 0 for i in ref) + res["mesh_faces"]
    res["rows"] = [{k: cols[k][i] for k in cols} for i in range(n)]
    return res


# ---------------------------------------------------------------- そっくり率

def look_of(b, use_rot=True):
    """見た目の特徴。向きは、向きで見た目が変わる建物（屋上設備型・切妻屋根）のときだけ数える"""
    rot = 0
    if use_rot:
        deg = round(math.degrees(b["rot"])) % 360
        if b["roof"] == 1:            # 切妻は180度回しても同じ形
            rot = deg % 180
        elif b["type"] == 2:          # 屋上設備型
            rot = deg
    return (int(b["type"]), int(b["roof"]), int(b["col_id"]), rot, b["sx"] > 1.5)


def similarity(rows, h_tol=0.10):
    """となり合う建物（上下左右）の組のうち、『そっくり』な組の割合。
    そっくり＝種類・屋根・色・（意味があるときは）向き・合体の有無が同じで、高さの差が h_tol 以内"""
    blds = [r for r in rows if r["part"] < 0.5]
    owner = {}
    for i, b in enumerate(blds):
        gx, gy = int(round(b["gx"])), int(round(b["gy"]))
        owner[(gx, gy)] = i
        if b["sx"] > 1.5:             # 合体した棟は右の区画も持っている
            owner[(gx + 1, gy)] = i
    pairs = set()
    for (gx, gy), i in owner.items():
        for d in ((1, 0), (0, 1)):
            j = owner.get((gx + d[0], gy + d[1]))
            if j is not None and j != i:
                pairs.add((min(i, j), max(i, j)))
    twins = same_shape = 0
    for i, j in pairs:
        a, b = blds[i], blds[j]
        if look_of(a) != look_of(b):
            continue
        same_shape += 1               # 高さを問わなければ同じ
        hi = max(a["h"], b["h"], 1e-6)
        if abs(a["h"] - b["h"]) / hi <= h_tol:
            twins += 1
    # 見た目の種類（高さは1階ぶん刻みに丸める）
    looks = Counter(look_of(b) + (int(round(b["h"] / cv.FLOOR_H)),) for b in blds)
    top = looks.most_common(1)[0][1] if looks else 0
    return {"buildings": len(blds), "pairs": len(pairs), "twins": twins,
            "twin_ratio": round(twins / len(pairs), 4) if pairs else None,
            "same_shape": same_shape,
            "same_shape_ratio": round(same_shape / len(pairs), 4) if pairs else None,
            "distinct_looks": len(looks),
            "top_look_share": round(top / len(blds), 4) if blds else None,
            "types": dict(Counter(int(b["type"]) for b in blds)),
            "roofs": dict(Counter(int(b["roof"]) for b in blds)),
            "colors": dict(Counter(int(b["col_id"]) for b in blds)),
            "merged": sum(1 for b in blds if b["sx"] > 1.5),
            "floors_min": int(min(round(b["floors"]) for b in blds)) if blds else None,
            "floors_max": int(max(round(b["floors"]) for b in blds)) if blds else None}


# ---------------------------------------------------------------- 道路の勾配

def road_slope(grid, cell, road_every=8):
    """道路の中心線（1区画目）の上だけで地面の高さを拾い、隣の区画との段差から勾配を出す。
    ★建物に当たると数字が壊れるので、道路の上だけを測る"""
    half = cell * (grid - 1) * 0.5
    zs = {}
    for gy in range(grid):
        for gx in range(grid):
            if gx % road_every == 0 or gy % road_every == 0:
                zs[(gx, gy)] = ground_z_at(gx * cell - half, gy * cell - half)
    steps = []
    for (gx, gy), z in zs.items():
        for dx, dy in ((1, 0), (0, 1)):
            o = zs.get((gx + dx, gy + dy))
            if o is not None:
                steps.append(abs(o - z))
    return {"slope_mean_pct": round(sum(steps) / len(steps) / cell * 100, 2),
            "slope_max_pct": round(max(steps) / cell * 100, 2),
            "height_range": round(max(zs.values()) - min(zs.values()), 3)}


# ---------------------------------------------------------------- 撮影

def ground_z_at(x, y):
    dg = bpy.context.evaluated_depsgraph_get()
    hit, loc, *_ = bpy.context.scene.ray_cast(dg, (x, y, 500.0), (0.0, 0.0, -1.0))
    return loc.z if hit else 0.0


# 用途地域の寄り：(街区の中心の列番号の、中心からのずれ, 距離, 高さ, 向き(度))
#   街区は8区画ごと。中の区画は 8k+2〜8k+7 なので中心は 8k+4.5
AT_VIEWS = {
    "houses":   (36, 0, 55.0, 28.0, 35.0),   # 中心から4.5街区＝住宅街
    "industry": (0, -72, 55.0, 28.0, 20.0),  # 南の外縁＝工業地帯。街の外から内側を向いて撮る
    "lots":     (36, 0, 16.0, 8.0, 35.0),    # 住宅の敷地に寄る
}


def set_camera_at(cam, grid, cell, key):
    """街区を指定して斜め上から撮る（Windows で撮った寄りと同じ置き方）"""
    from mathutils import Vector
    dgx, dgy, dist, height, yaw = AT_VIEWS[key]
    half_n = (grid - 1) // 2
    gx = 8 * ((half_n + dgx) // 8) + 4.5
    gy = 8 * ((half_n + dgy) // 8) + 4.5
    x, y = gx * cell - (grid - 1) * cell * 0.5, gy * cell - (grid - 1) * cell * 0.5
    target = Vector((x, y, ground_z_at(x, y) + 2.0))
    yaw = math.radians(yaw)
    cam.location = target + Vector((math.sin(yaw) * dist, -math.cos(yaw) * dist, height))
    cam.rotation_euler = (target - cam.location).to_track_quat("-Z", "Y").to_euler()
    cam.data.lens = 40


def render_views(outdir, stage, grid, cell, views, res, samples):
    sc = bpy.context.scene
    sc.render.resolution_x, sc.render.resolution_y = res
    sc.render.image_settings.file_format = "PNG"
    try:
        sc.eevee.taa_render_samples = samples
    except Exception:
        pass
    shots = os.path.join(outdir, "shots")
    os.makedirs(shots, exist_ok=True)
    size = cell * (grid - 1)
    cam = sc.camera
    names = []
    for mode in views:
        if mode in AT_VIEWS:
            if not stage.startswith(("v6", "v7", "v8")):
                continue          # 用途地域の寄りは v6 以降だけ
            set_camera_at(cam, grid, cell, mode)
        else:
            gz = None
            if mode == "street":
                cv.set_camera(cam, size, "street", 0.0)
                gz = ground_z_at(cam.location.x, cam.location.y)
            cv.set_camera(cam, size, mode, gz)
        cv.set_lighting(mode in ("detail", "street") or mode in AT_VIEWS)
        sc.render.filepath = os.path.join(shots, f"{stage}_n{grid}_{mode}.png")
        bpy.ops.render.render(write_still=True)
        names.append(os.path.basename(sc.render.filepath))
        print(f"[p1002]   shot {names[-1]}", flush=True)
    cv.set_camera(cam, size, "wide")
    cv.set_lighting(False)
    return names


# ---------------------------------------------------------------- 実行

def main():
    args = parse_args()
    here = os.path.dirname(os.path.abspath(__file__))
    outdir = args["out"] if os.path.isabs(args["out"]) else os.path.join(here, args["out"])
    os.makedirs(outdir, exist_ok=True)
    result = {}
    for st in args["stages"]:
        t0 = time.perf_counter()
        over = cv.TERRAIN_OLD if args["terrain"] == "old" else {}
        city, ng = cv.build_stage(st, grid_n=args["grid"], cell=args["cell"], **over)
        inst = read_instances(city)
        rec = {"nodes": len(ng.nodes),
               "instances": inst["n_instances"],
               "unique_meshes": inst.get("unique_meshes"),
               "drawn_faces": inst.get("drawn_faces", inst["mesh_faces"]),
               "parts": dict(Counter(int(r["part"]) for r in inst["rows"])),
               "build_sec": round(time.perf_counter() - t0, 2)}
        if inst["rows"]:
            rec.update(similarity(inst["rows"]))
        if args["road_slope"]:
            rec.update(road_slope(args["grid"], args["cell"]))
            print(f"[p1002] {st} 道路の勾配 平均 {rec['slope_mean_pct']}% / 最大 {rec['slope_max_pct']}%", flush=True)
        if args["dump"]:   # 建物1棟ずつの値（段階間の比較用）
            with open(os.path.join(outdir, f"rows_{st}_n{args['grid']}.json"), "w", encoding="utf-8") as f:
                json.dump([r for r in inst["rows"] if r["part"] < 0.5], f)
        if args["render"]:
            rec["shots"] = render_views(outdir, st, args["grid"], args["cell"],
                                        args["views"], args["res"], args["samples"])
        if args["save"]:
            bpy.ops.wm.save_as_mainfile(filepath=os.path.join(outdir, f"p1002_{st}_n{args['grid']}.blend"))
        result[st] = rec
        print(f"[p1002] {st:<18} bld={rec.get('buildings')} inst={rec['instances']} "
              f"twins={rec.get('twin_ratio')} looks={rec.get('distinct_looks')}", flush=True)
        with open(os.path.join(outdir, f"stages_n{args['grid']}.json"), "w", encoding="utf-8") as f:
            json.dump({"grid": args["grid"], "cell": args["cell"],
                       "blender": bpy.app.version_string, "stages": result},
                      f, ensure_ascii=False, indent=2)
    print("[p1002] DONE", flush=True)


main()

# -*- coding: utf-8 -*-
"""
p1002: 「重さ」を2種類に分けて測る（p973の measure.py を流用）

  (a) ノード再計算の時間 … パラメータを動かしたときの待ち時間（CPU側）
  (b) 描画の時間        … 視点を回したときの滑らかさ（GPU側）

この2つは別物で、作り込みの内容によってどちらが伸びるかが変わる。
そこを分けて測るのがこの記事の芯。

使い方（★GUIで起動する。-b を付けない）:
  blender.exe --python measure.py -- --grids 81,161,241 --out results --quit

  ※ -b（バックグラウンド）では描画の計測ができないため、必ずGUIで実行する。
  ※ 計測中はBlenderのウィンドウを触らないこと（描画時間に影響する）。

出力:
  results/measure.json / measure.csv
"""

import bpy
import sys
import os
import json
import time
import math
import statistics

sys.path.insert(0, os.path.dirname(os.path.abspath(__file__)))
import city_var as cb  # noqa: E402

DEFAULT_STAGES = ["v0_p973", "v1_orient", "v2_floors", "v3_roofs", "v4_windows", "v5_merge",
                  "v6_zones", "v7_zones", "v8_lots",
                  "e3_parts_realize", "e3_baked4", "e3_baked16", "e3_baked64"]


# ---------------------------------------------------------------- 引数

def parse_args():
    a = sys.argv[sys.argv.index("--") + 1:] if "--" in sys.argv else []
    out = {"grids": [81, 161, 241], "stages": DEFAULT_STAGES,
           "out": "results", "frames": 12, "reps": 7, "cell": 2.0, "quit": False}
    i = 0
    while i < len(a):
        k = a[i].lstrip("-")
        if k == "grids":
            out["grids"] = [int(x) for x in a[i + 1].split(",")]; i += 2
        elif k == "stages":
            out["stages"] = a[i + 1].split(","); i += 2
        elif k == "out":
            out["out"] = a[i + 1]; i += 2
        elif k == "frames":
            out["frames"] = int(a[i + 1]); i += 2
        elif k == "reps":
            out["reps"] = int(a[i + 1]); i += 2
        elif k == "cell":
            out["cell"] = float(a[i + 1]); i += 2
        elif k == "quit":
            out["quit"] = True; i += 1
        else:
            i += 1
    return out


# ---------------------------------------------------------------- (a) 再計算

def measure_eval_ms(city_obj, ng, reps=7):
    """グリッドの大きさをごくわずかに動かして、街を作り直させる。
    その1回にかかる時間を測る（＝スライダーを動かしたときの待ち時間）"""
    grid = next((n for n in ng.nodes if n.bl_idname == "GeometryNodeMeshGrid"
                 and n.label == "地面グリッド"), None)
    if grid is None:
        grid = next(n for n in ng.nodes if n.bl_idname == "GeometryNodeMeshGrid")
    sock = grid.inputs["Size X"]
    base = sock.default_value

    times = []
    for i in range(reps + 1):
        sock.default_value = base + 0.0001 * (i + 1)
        city_obj.update_tag()
        t0 = time.perf_counter()
        dg = bpy.context.evaluated_depsgraph_get()
        dg.update()
        ev = city_obj.evaluated_get(dg)
        _ = ev.bound_box[:]              # ここで評価が確定する
        times.append((time.perf_counter() - t0) * 1000.0)
    sock.default_value = base
    city_obj.update_tag()
    bpy.context.evaluated_depsgraph_get().update()
    times = times[1:]                    # 1回目は準備が混ざるので捨てる
    return {"eval_ms_median": round(statistics.median(times), 2),
            "eval_ms_min": round(min(times), 2),
            "eval_ms_max": round(max(times), 2)}


# ---------------------------------------------------------------- (b) 描画

def setup_orbit(cam):
    """カメラを空オブジェクトにぶら下げる。あとでこの空を回して視点を動かす。
    ※ キーフレームは使わない（5.xでActionの構造が変わっており、版に依存させたくない）"""
    piv = bpy.data.objects.get("OrbitPivot")
    if piv is None:
        piv = bpy.data.objects.new("OrbitPivot", None)
        bpy.context.collection.objects.link(piv)
    piv.location = (0, 0, 0)
    piv.rotation_euler = (0, 0, 0)
    if cam.parent != piv:
        # ★matrix_world を代入して位置を保とうとすると、GUIではカメラが原点に潰れた
        #   （ローカル行列が更新前の値のまま残るため）。
        #   親は原点・無回転なので、カメラのローカル座標をそのまま使えばよい。
        cam.parent = piv
        cam.matrix_parent_inverse.identity()
    bpy.context.view_layer.update()
    return piv


def find_view3d():
    for win in bpy.context.window_manager.windows:
        for area in win.screen.areas:
            if area.type == "VIEW_3D":
                region = next((r for r in area.regions if r.type == "WINDOW"), None)
                return win, area, region
    return None, None, None


def wait_shaders(win, area, region, timeout=180.0):
    """★マテリアル表示では、シェーダーのコンパイルが裏で進む。終わる前に測ると
    『仮の色で描いた時間』を測ってしまうので、コンパイルが終わるまで描き直しながら待つ。
    （p976で、最初にシェーダーを要求した処理だけ約15秒余計にかかった）"""
    t0 = time.perf_counter()
    while time.perf_counter() - t0 < timeout:
        with bpy.context.temp_override(window=win, area=area, region=region):
            bpy.ops.wm.redraw_timer(type="DRAW", iterations=3)
        busy = False
        try:
            busy = bpy.app.is_job_running("SHADER_COMPILATION")
        except Exception:
            pass
        if not busy:
            break
    return round(time.perf_counter() - t0, 2)


def measure_draw_ms(piv, frames, shading="SOLID", iters=20):
    """視点を少しずつ回しながら、ビューポートを実際に描き直させて1コマの時間を測る。
    Blender自身のベンチ用オペレータ `wm.redraw_timer`（ウィンドウを描いて画面に出す）を使う。

    ★ここではノードの再計算は起きない（形は変えていない）ので、純粋に描画側の重さになる。
    ★カメラビュー固定・シェーディング固定で、段階間の条件を揃える。"""
    win, area, region = find_view3d()
    if area is None:
        return {}

    space = area.spaces.active
    try:
        space.shading.type = shading
        space.region_3d.view_perspective = "CAMERA"
        space.overlay.show_overlays = False
    except Exception:
        pass
    wait_s = wait_shaders(win, area, region)

    times, err = [], None
    for i in range(frames + 1):          # 1回目は準備が混ざるので後で捨てる
        piv.rotation_euler[2] = math.radians(360.0 * i / max(frames, 1))
        bpy.context.view_layer.update()
        t0 = time.perf_counter()
        try:
            with bpy.context.temp_override(window=win, area=area, region=region):
                # ★DRAW_WIN_SWAP は画面への表示(スワップ)を含むため vsync で頭打ちになる
                #   （120Hzのディスプレイでは 8.3ms より速い値が出ない）。
                #   ここでは描画そのものだけを測りたいので "DRAW" を使う。
                bpy.ops.wm.redraw_timer(type="DRAW", iterations=iters)
        except Exception as e:
            err = str(e)
            break
        times.append((time.perf_counter() - t0) * 1000.0 / iters)

    piv.rotation_euler[2] = 0.0
    key = "draw_solid_ms" if shading == "SOLID" else "draw_material_ms"
    if not times:
        return {key: None, "draw_note": f"redraw_timer失敗: {err}"}
    times = times[1:] or times
    return {key: round(statistics.median(times), 2),
            key + "_worst": round(max(times), 2),
            key + "_wait_s": wait_s,
            "draw_note": err or ""}


def save_shot(outdir, stage, grid, samples=24):
    """計測した状態の街を1枚レンダリングして残す。
    ★数字だけだと『本当に街が映っていたのか』を後から確認できないため、証拠として撮る。
    ★ビューポートのOpenGLレンダー（render.opengl）は、ウィンドウが前面に無い状態だと
      中身が空の画像になることがあったので、通常のレンダー（F12相当）を使う。"""
    sc = bpy.context.scene
    d = os.path.join(outdir, "shots")
    os.makedirs(d, exist_ok=True)
    sc.render.filepath = os.path.join(d, f"{stage}_n{grid}.png")
    sc.render.image_settings.file_format = "PNG"
    sc.render.resolution_x, sc.render.resolution_y = 1280, 720
    try:
        sc.eevee.taa_render_samples = samples
    except Exception:
        pass
    try:
        bpy.ops.render.render(animation=False, write_still=True)
        return os.path.basename(sc.render.filepath)
    except Exception as e:
        return f"失敗: {e}"


# ---------------------------------------------------------------- 規模

def measure_size(city_obj):
    """分身の数・描く面の総数・使っている型の数"""
    dg = bpy.context.evaluated_depsgraph_get()
    dg.update()
    gs = city_obj.evaluated_get(dg).evaluated_geometry()
    pc = gs.instances_pointcloud()
    mesh = gs.mesh
    n = len(pc.points) if pc else 0
    base = len(mesh.polygons) if mesh else 0
    drawn, uniq = base, 0
    if pc:
        ref = [0] * n
        pc.attributes[".reference_index"].data.foreach_get("value", ref)
        faces = [cb.ref_faces(r) for r in gs.instance_references()]
        drawn += sum(faces[i] for i in ref if i < len(faces))
        uniq = len(set(ref))
    return {"instances": n, "unique_refs": uniq, "drawn_polys": drawn,
            "base_polys": base}


# ---------------------------------------------------------------- 実行

def main():
    args = parse_args()
    here = os.path.dirname(os.path.abspath(__file__))
    outdir = args["out"] if os.path.isabs(args["out"]) else os.path.join(here, args["out"])
    os.makedirs(outdir, exist_ok=True)

    # ★捨てレンダリングを1回だけ先に通す。
    #   EEVEEでレンダリングする前のビューポートは、マテリアル表示が軽い経路で描かれる
    #   （Windows実測：v5_merge/161 で 3.08ms → レンダリング後 32.56ms）。
    #   1条件ごとに証拠画像をレンダリングしているので、2条件目以降は本来の重さで測れるが、
    #   最初の1条件だけ軽く出てしまう。コンパイル待ち（is_job_running）では検知できない。
    cb.build_stage(args["stages"][0], grid_n=args["grids"][0], cell=args["cell"])
    save_shot(outdir, "warmup", args["grids"][0], samples=1)

    rows = []
    for grid in args["grids"]:
        for stage in args["stages"]:
            print(f"[p1002] === {stage} / grid={grid} ===", flush=True)
            t0 = time.perf_counter()
            city, ng = cb.build_stage(stage, grid_n=grid, cell=args["cell"])
            cam = bpy.context.scene.camera
            piv = setup_orbit(cam)

            rec = {"stage": stage, "grid": grid, "cell": args["cell"],
                   "nodes": len(ng.nodes),
                   "build_sec": round(time.perf_counter() - t0, 2)}
            rec.update(measure_size(city))
            rec.update(measure_eval_ms(city, ng, reps=args["reps"]))
            rec.update(measure_draw_ms(piv, args["frames"], "SOLID"))
            rec.update(measure_draw_ms(piv, args["frames"], "MATERIAL"))
            dgx = bpy.context.evaluated_depsgraph_get(); dgx.update()
            evx = city.evaluated_get(dgx)
            print("[p1002] 確認: カメラ", tuple(round(v, 1) for v in bpy.context.scene.camera.matrix_world.translation),
                  "clip", round(bpy.context.scene.camera.data.clip_end, 1),
                  "bbox", tuple(round(c, 1) for c in evx.bound_box[6]),
                  "vis", city.visible_get(),
                  "objs", len(bpy.context.view_layer.objects),
                  flush=True)
            rec["shot"] = save_shot(outdir, stage, grid)
            rows.append(rec)
            print(f"[p1002] {stage} n={grid} inst={rec.get('instances')} "
                  f"eval={rec.get('eval_ms_median')}ms "
                  f"draw(solid)={rec.get('draw_solid_ms')}ms "
                  f"draw(material)={rec.get('draw_material_ms')}ms", flush=True)

            with open(os.path.join(outdir, "measure.json"), "w", encoding="utf-8") as f:
                json.dump(rows, f, ensure_ascii=False, indent=2)

    cols = ["stage", "grid", "nodes", "instances", "unique_refs", "drawn_polys", "base_polys",
            "eval_ms_median", "eval_ms_min", "eval_ms_max",
            "draw_solid_ms", "draw_solid_ms_worst",
            "draw_material_ms", "draw_material_ms_worst", "draw_material_ms_wait_s",
            "shot", "draw_note"]
    with open(os.path.join(outdir, "measure.csv"), "w", encoding="utf-8") as f:
        f.write(",".join(cols) + "\n")
        for r in rows:
            f.write(",".join(str(r.get(c, "")).replace(",", " ") for c in cols) + "\n")
    print("[p1002] wrote", os.path.join(outdir, "measure.csv"))
    print("[p1002] DONE")
    if args["quit"]:
        # 起動直後のスクリプトからは quit がその場で効かないので、
        # タイマー経由で少し遅らせて閉じる（GUI実行時のみ意味がある）
        bpy.app.timers.register(lambda: (bpy.ops.wm.quit_blender(), None)[1], first_interval=0.5)


main()

# -*- coding: utf-8 -*-
"""p1002: 2つの街の「建物1棟ずつの値」（run_stages.py --dump の rows_*.json）を区画ごとに突き合わせる。

  使い方（Blender に入っている Python で動く。bpy は使わない）:
    blender -b --factory-startup --python compare_rows.py -- A.json B.json

  何に使うか:
    ・合体の前後（A=v4, B=v5）で、合体と関係ない建物まで変わったかを数える
    ・Mac と Windows で同じ段階を作り、同じ街になっているかを確かめる
"""
import json
import sys

a, b = sys.argv[sys.argv.index("--") + 1:][:2]
A = {(round(r["gx"]), round(r["gy"])): r for r in json.load(open(a, encoding="utf-8"))}
B = {(round(r["gx"]), round(r["gy"])): r for r in json.load(open(b, encoding="utf-8"))}

only_a, only_b = sorted(set(A) - set(B)), sorted(set(B) - set(A))
both = [k for k in A if k in B and B[k]["sx"] < 1.5 and A[k]["sx"] < 1.5]   # 合体していない建物だけ比べる
keys = ("type", "h", "roof", "col_id", "rot")
changed = {k: 0 for k in keys}
any_changed = 0
for c in both:
    diff = [k for k in keys if abs(A[c][k] - B[c][k]) > 1e-4]
    for k in diff:
        changed[k] += 1
    any_changed += bool(diff)

print(f"Aだけにある建物 {len(only_a)}  Bだけにある建物 {len(only_b)}")
print(f"両方にある単独の建物 {len(both)}  そのうち値が変わった {any_changed}"
      f"（{any_changed / max(len(both), 1):.1%}）")
print("  変わった項目ごと:", changed)
if 0 < len(only_a) + len(only_b) <= 20:
    print("  片方にしかない区画:", only_a, only_b)

# -*- coding: utf-8 -*-
"""p1002: EEVEE でレンダリングしたあと、ビューポートのマテリアル表示が重くなるかを確かめる。

measure.py は 1条件ごとに「描画を測る → 証拠画像をレンダリングする」の順で回る。
つまり2条件目以降は、必ず「レンダリング済みのプロセス」で測っていることになる。
ここでは同じ条件のマテリアル表示を
  レンダリング前 → レンダリング1回 → 後 → もう1回 → 後
と測って、順番そのものが数字を変えていないかを見る。

  blender --factory-startup --python probe_render.py -- --stage v5_merge --grid 161 --out out
  blender --factory-startup --python probe_render.py -- --stage v5_merge --grid 161 --out out --hold 20
    （--hold 秒：最後にマテリアル表示のまま、その秒数だけ視点を回しながら描き続ける。
      そのあいだに別のウィンドウで nvidia-smi などを動かすと、GPU が詰まっているかが見える）
"""
import bpy
import json
import math
import os
import statistics
import sys
import time

sys.path.insert(0, os.path.dirname(os.path.abspath(__file__)))
import city_var as cb  # noqa: E402

A = sys.argv[sys.argv.index("--") + 1:] if "--" in sys.argv else []


def arg(n, d):
    return A[A.index("--" + n) + 1] if "--" + n in A else d


STAGE, GRID, OUT = arg("stage", "v5_merge"), int(arg("grid", 161)), arg("out", "out")
HOLD = float(arg("hold", 0))


def log(*a):
    print("[order]", *a, flush=True)


def win():
    return bpy.context.window_manager.windows[0]


def view3d():
    for a in win().screen.areas:
        if a.type == "VIEW_3D":
            return a, next((r for r in a.regions if r.type == "WINDOW"), None)
    return None, None


def measure(area, region, piv, shading, frames=12, iters=10):
    sp = area.spaces.active
    sp.shading.type = shading
    with bpy.context.temp_override(window=win(), area=area, region=region):
        bpy.ops.wm.redraw_timer(type="DRAW", iterations=5)
    t = []
    for i in range(frames + 1):
        piv.rotation_euler[2] = math.radians(360.0 * i / frames)
        bpy.context.view_layer.update()
        t0 = time.perf_counter()
        with bpy.context.temp_override(window=win(), area=area, region=region):
            bpy.ops.wm.redraw_timer(type="DRAW", iterations=iters)
        t.append((time.perf_counter() - t0) * 1000.0 / iters)
    return round(statistics.median(t[1:]), 2)


def render_once(samples=24):
    sc = bpy.context.scene
    sc.render.resolution_x, sc.render.resolution_y = 1280, 720
    sc.render.image_settings.file_format = "PNG"
    sc.render.filepath = os.path.join(OUT, "order_tmp.png")
    try:
        sc.eevee.taa_render_samples = samples
    except Exception:
        pass
    t0 = time.perf_counter()
    bpy.ops.render.render(animation=False, write_still=True)
    return round(time.perf_counter() - t0, 2)


def run():
    city, ng = cb.build_stage(STAGE, grid_n=GRID, cell=2.0)
    cam = bpy.context.scene.camera
    piv = bpy.data.objects.get("OrbitPivot") or bpy.data.objects.new("OrbitPivot", None)
    if piv.name not in bpy.context.collection.objects:
        bpy.context.collection.objects.link(piv)
    piv.location = (0, 0, 0)
    piv.rotation_euler = (0, 0, 0)
    if cam.parent != piv:
        cam.parent = piv
        cam.matrix_parent_inverse.identity()
    bpy.context.view_layer.update()

    area, region = view3d()
    area.spaces.active.region_3d.view_perspective = "CAMERA"
    area.spaces.active.overlay.show_overlays = False
    os.makedirs(OUT, exist_ok=True)

    rec = {"stage": STAGE, "grid": GRID, "steps": []}

    def note(tag):
        s = measure(area, region, piv, "SOLID")
        m = measure(area, region, piv, "MATERIAL")
        rec["steps"].append({"when": tag, "solid_ms": s, "material_ms": m})
        log(f"{tag}: solid {s} ms / material {m} ms")

    note("render前")
    r1 = render_once()
    log("render 1 回目", r1, "s")
    note("render1回のあと")
    r2 = render_once()
    log("render 2 回目", r2, "s")
    note("render2回のあと")
    rec["render_sec"] = [r1, r2]

    if HOLD > 0:
        area.spaces.active.shading.type = "MATERIAL"
        log(f"描き続ける {HOLD} 秒（開始 {time.strftime('%H:%M:%S')}）")
        n, t0 = 0, time.perf_counter()
        while time.perf_counter() - t0 < HOLD:
            piv.rotation_euler[2] = math.radians((n * 0.5) % 360)
            bpy.context.view_layer.update()
            with bpy.context.temp_override(window=win(), area=area, region=region):
                bpy.ops.wm.redraw_timer(type="DRAW", iterations=1)
            n += 1
        ms = (time.perf_counter() - t0) * 1000.0 / n
        rec["hold"] = {"seconds": HOLD, "frames": n, "ms_per_frame": round(ms, 2)}
        log(f"描き続けた: {n} コマ・1コマ {ms:.2f} ms（終了 {time.strftime('%H:%M:%S')}）")

    p = os.path.join(OUT, f"order_effect_{STAGE}_n{GRID}.json")
    with open(p, "w", encoding="utf-8") as f:
        json.dump(rec, f, ensure_ascii=False, indent=1)
    log("wrote", p)
    bpy.context.preferences.view.use_save_prompt = False
    bpy.ops.wm.quit_blender()
    return None


bpy.app.timers.register(run, first_interval=3.0)
